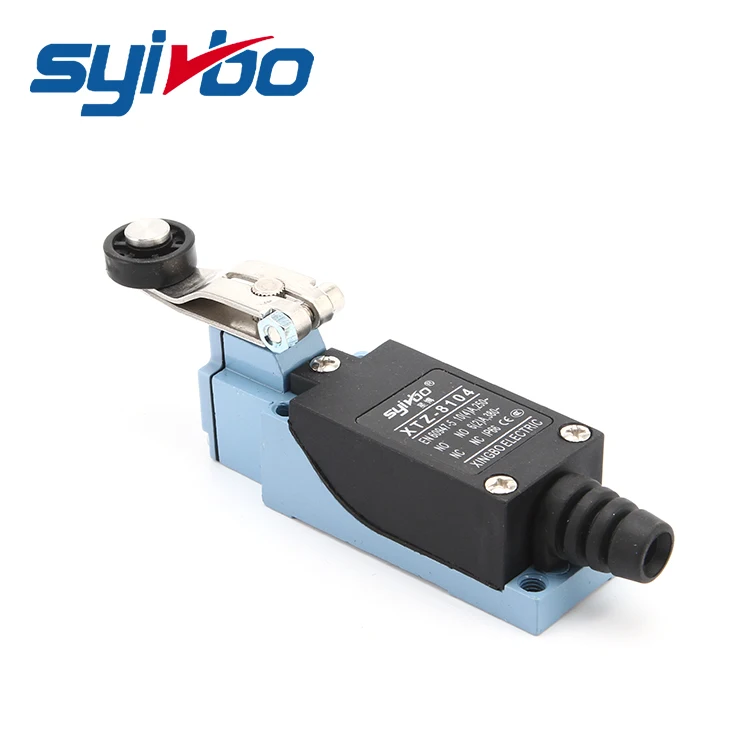

XINGBO Hot sale factory price roller lever position limit switch/hoist crane limit switch

Supplier: Zhejiang Xingbo Electrical Appliance Co., Ltd.
Region: Zhejiang, China
Contact: Ms Grace Ying
Price: $1.75 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Operating Temperature:	-5℃-+65℃;	Type:	TZ-8 series;
Brand Name:	XINGBO;	Inrush current:	N.C:below 24A, N.O:below 12A;
Payment Terms:	L/C,T/T,Western Union;	Port:	NINGBO/SHANGHAI;
Model Number:	XTZ-8104;	Protection Level:	IP65;
Max. Current:	10A;	Circuit:	Double circuit type;
Packaging Detail:	Xingbo individual color box, 10pcs/inner box, 100pcs/master box, 19kgs/ctn;	Max. Voltage:	250VAC;
Place of Origin:	China;	contact form:	NO,NC;
Material:	intensive plastic and zinc cast;	Supply Ability:	2000 Piece/Pieces per Day;

Product Description

Features:

Double circuit type of limit switch

Highly rigid construction, consists of zinc cast and intensive plastic

Small volume, water-proof and oil-proof construction

Built-in basic switch with double spring mechanism, longer mechanical life

Smooth operation with greater OT

Easy-to-wire circuit opening design

Wide variety of actuators, easily use

Characteristics

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/m, Electrical: 30 operations/m
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (Below 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between noncontinuious terminal
	1500VAC, 50/60 HZ for 1 minute between load current and no load current
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durability 1000m/ sec² (about 100G'S) Malfunction: 300m/ sec² (about 30G'S)
Ambient temperature	-5℃ to +65℃
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 500,000 operations above
Weight	About 130 to 190g
IEC	IP65

Ratings

Rated Voltage	Noninductive Load (A)				Inductive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 500VAC	5 5	5 5	1.5 1	0.7 0.5	3 3	3 3	2 1.5	1 0.8
8VDC 14VDC 30VDC 125VDC 250VDC	5 5 5 0.4 0.2	5 5 5 0.4 0.2	3 3 3	3 3 3	5 4 4	4 4 4	3 3 3	3 3 3
Inrush Current	N.C: below 24A, N.O: below 12A

NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has
an inrush current of 6 times the steady-state current.

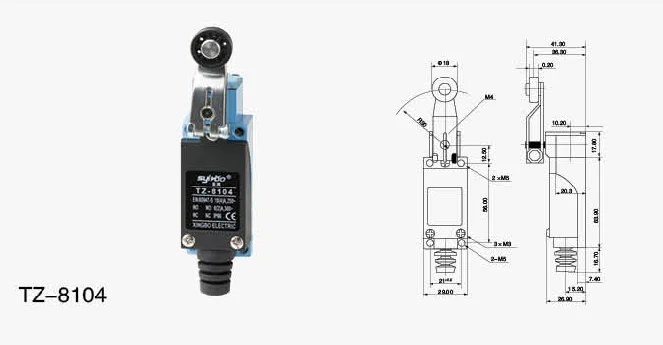

Models	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167/8168/8169
OF Max.	750g	750g	750g	900g	900g	150g
RF Min.	100g	100g	100g	150g	150g	-
PT Max.	20º	20 º	20 º	1.5mm	1.5mm	30mm
OT Min.	50 º	50 º	50 º	4mm	4mm	-
MD Max.	12 º	12 º	12 º	1mm	1mm	-
OP	-	-	-	26 ± 0.8mm	37 ± 0.8mm	-
