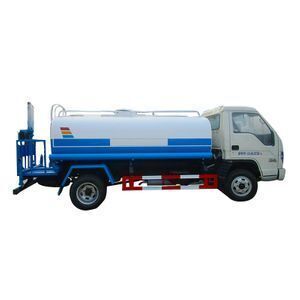

mini green 3cbm water bowser truck

Product details
Sprinkling Area (m):12 - 16m;Packaging Detail:WAX;
Dimensions (L x W x H) (mm):4995*1690*2300;Port:SHANGHAI;
Transmission Type:Manual;Tank Volume:< 5000L;
Supply Ability:500 Unit/Units per Month;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Water Cannon:360degree;
Emission Standard:Euro 2;Drive Wheel:4x2;
Gross Vehicle Weight:4294;Certification:ISO;
Tank material:carbon steel;Product name:mini green 3cbm water bowser truck ck Sale;
Application:city cleaning;Brand Name:XDR;
Warranty:1 year;Payment Terms:L/C,T/T;
Max Range:>30m;After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Wheelbase:2600mm;Engine Capacity:< 4L;
Place of Origin:Hubei China;Fuel:Diesel;
Chassis brand:Foton;Basic Equipment:front,side,rear sprinkler,working platform;

Product Description





mini foton 3000L water tanker for truck

Vehicle Parameters

General

Vehicle Model

YZR5040GSSBJ

Vehicle Brand

XDR

Chassis Brand

Foton

Overall Dimension(mm)

4995×1690×2300

GVW/Curb Weight(kg)

4294/2660

Chassis Parameters

Cab

Cab Seat

2

Air Conditioner

Optional

Engine

Fuel Type

diesel

Engie Model

N485QA

Engine Brand

Anhui Quanchai

Power(hp)

50

Displacement(cc)

2270

Emmission Standard

Euro2

Chassis

Drive Type

4*2

Transmission

5 speed, Manual

Wheelbase(mm)

2600

Tyre Specification

6.00-15

Tyre No.(pcs)

6+1

Max Speed(km/h)

90

Paint

Blue and White

Water Tank Structure Parameters

Tank Volume

3000L

Tank Material

Carbon Steel

Tank Thickness

4/4/3mm

Nozzle Sprinkling Width

≥14m

Range of water cannon

≥28m

Color and Logo

Optional

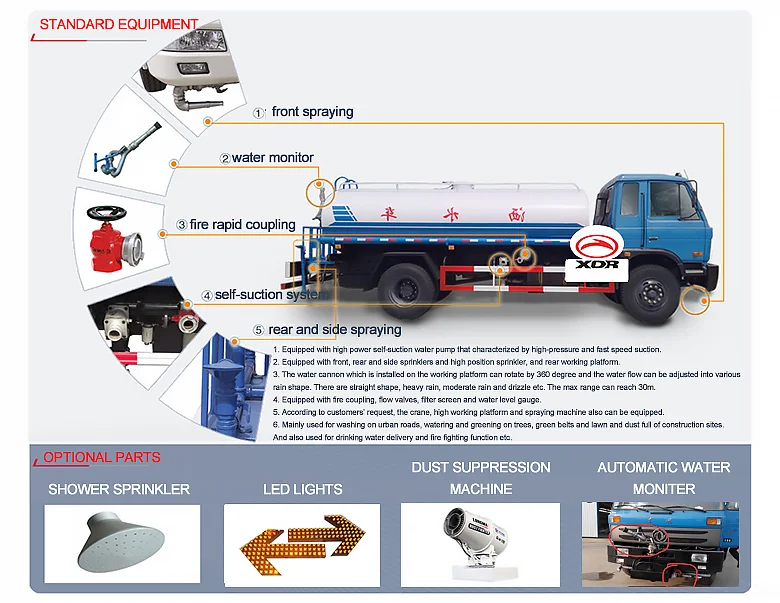

Standard configuration

Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.

Selective configuration

stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights

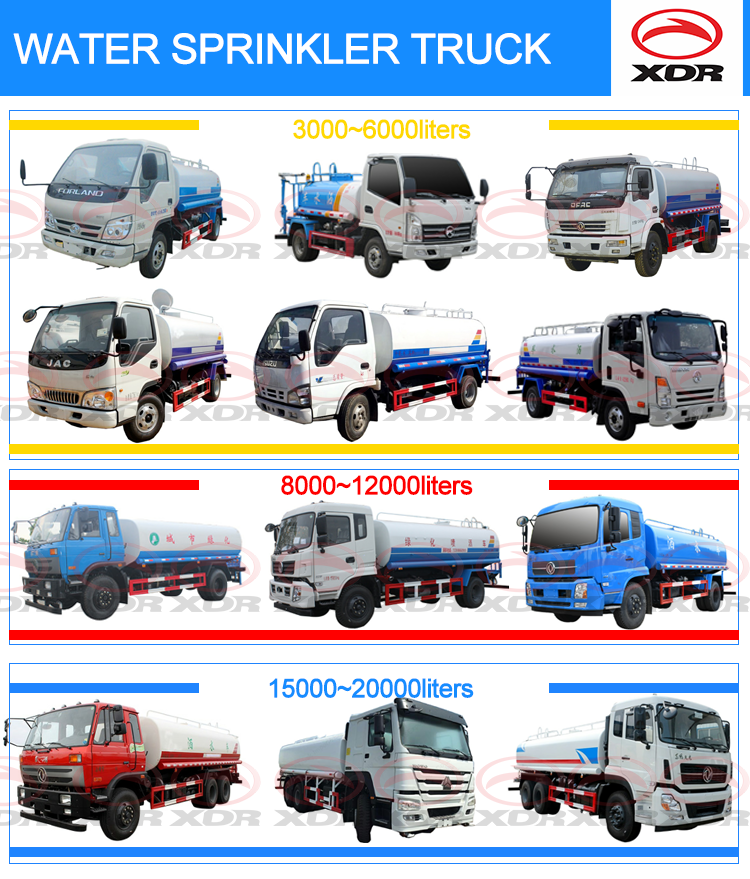

Extended model

water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.

Remarks

1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30m.
4. Equipped with fire coupling, flow valves, filter screen and water level gauge.
5. According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
