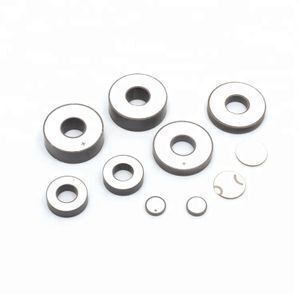

JIAKANG PZT Customize Ultrasonic Piezo Element Piezoelectric Ceramic Ring
-
Supplier: Zhejiang Jiakang Electronics Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Sally MA -
Price: $0.30 / >=100 pieces -
Min. Order: 100 pieces
| Model Number: | HTCH0.106C15AD0H4-T0; | Brand Name: | JIAKANG; |
| Payment Terms: | L/C,T/T,Western Union,Credit Card; | Material: | Ceramic; |
| Size: | Customizable for Piezoelectric Ceramic ring; | Advantage: | High Reliability; |
| Packaging Detail: | Packed in Tray.; | Shape: | Ring; |
| Frequency: | 0.106±0.0015 MHz; | Type: | Piezoelectric Ceramics; |
| Port: | Shanghai; | MOQ: | 100 PCS; |
| Supply Ability: | 1000000 Carton/Cartons per Month Efficient Reliable Ultrasonic Transducer; | Use: | Ultrasonic transducer,sensor; |
| Feature: | Low Dieletric Loss; | Static capacitance: | 680±15%pF; |
| Place of Origin: | Zhejiang China; | Diameters: | 15mm; |
| Application: | piezoelectric ceramic; |
You are here:Home >>Piezoelectric Ultrasonic Transducer >>Piezoelectric Ultrasonic Disc>>
JIAKANG PZT Customize Ultrasonic Piezo Element Piezoelectric Ceramic Ring
Electrical Specifications | ||
(Item) | (Unit) | (Standard) |
Resonant frequency (Fr) | MHz | 0.106±0.0015 |
Resonant impedance (Rr) | Ω | ≤50 |
Band width(DF) | kHz | ≥9 |
Static capacitance (C0) | pF | 650±15% |
Loss(tgδ) | % | ≤0.5 |
d33 |
| ≥270 |

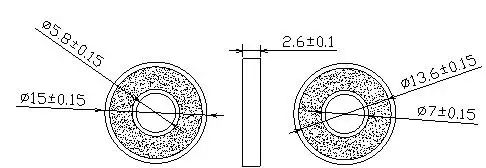

| Appearance and Dimensions |
 |
| Packing | ||||
Quantity per package (pcs) | Dimensions of EPE packaging (cm) | Dimensions of inner box (cm) | Dimensions of package (cm) | Gross weight (Kg) |
| 3600 | 30.5×16.5×8.0 | 31.2×17.2×8.7 | 36.7×32.7×20.5 | 12 |
| Note:Each package has 4 inner boxes, each box has 1250 pieces of elements. | ||||
TEST | |
Test Conditions | |
Parts shall be measured under a condition (Temp.:25℃±5℃, Humidity: 40%~70% R.H.). | |
Test procedure | |
Item | Test procedure |
Resonant frequency (Fr) | Measuring thickness vibration mode, Impedance analyzer or Network analyzer |
Band width(DF) | |
| Resonant impedance (Rr) | |
Static capacitance (C0) | Digital electric bridge or impedance analyzer,1kHz/1V |
| Loss(tgδ) | Impedance analyzer |
d33 | d33 Quasi static measuring instrument |
Click for more information
Ceramic ultrasonic transducer, the core element of ultrasonic flow meters, is a liquid-medium sensor. It can be used in liquid flow meter, or as liquid level sensor. Products are made from the piezoelectric ceramic developed by ourselves, has the advantages of better temperature stability and superior piezoelectric effect. We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster. |
Customer praise
Our products are praised by customers from different countries, and the praises are true.
Q1:Are you a manufacturer or a trading company?
A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.
Q2:Where is your factory located?
A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.
Q3: What's your company MOQ?
A3: Small quantity also available.
Q4: What's the payment way?
A4: T/T, western union, credit card etc.
Q5: Can you send a sample for us to test ?
A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q6:What is your shipping way?
A6: We support DHL, UPS, FedEx, EMS.
-
