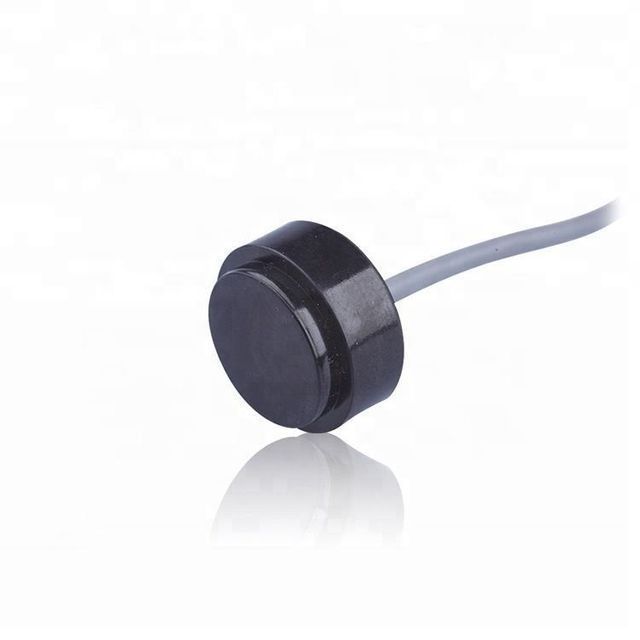

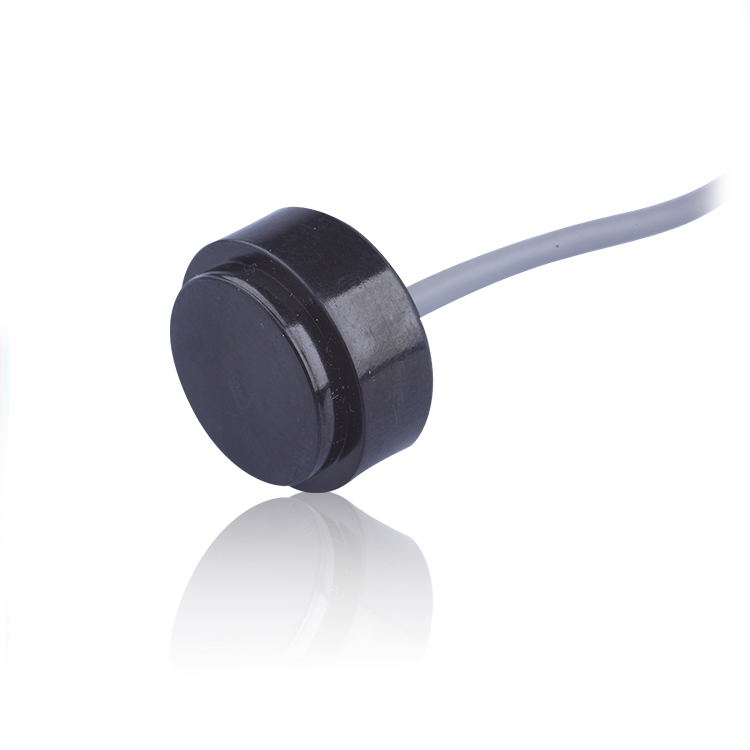

JIAKANG Factory Ultrasonic Piezoelectric Transducer 1mhz Waterproof Piezoelectric Ultrasonic Transducer

Product details
model:PSC1.0M020102H2CE0-B0port:Shanghai
capacitance:1300±20%pFResonant impedance (R0):200~450Ω
payment terms:Western Union, T/T, Credit Cardapplication:Ultrasonic Water Meter/Level Measurement
Supply capacity:800000 pieces per monthMaterial:ceramics
Packaging Details:600pcs/carton, 4 inner boxes in totaltheory:ultrasound
Types of:liquid flow sensordescribe:ultrasonic transducer
brand:Kakangproduct name:1 MHz ultrasonic transducer
Storage temperature:-40~+85℃Nominal frequency:1.0±0.1mhz
MOQ:2output:simulation
place of origin; place of origin:Zhejiang, ChinaOperating temperature:+0.1~+100℃
usage:Ultrasonic water meter/flow meter/liquid level detectionBandwidth (-3dB):200kHz

Specification
project unit content

Nominal frequency (Fn)

megahertz

1.0±0.1

Resonance impedance (R0)

ohm

200~450

Static Capacitance (CP)

pF

1300±20%



 Test Conditions
Parts should be measured under (temperature: 20°C±15°C, humidity: 45%~85% RH, temperature: 40±5°C).



test program

thing

test program

Nominal frequency (Fn)

Measuring Thickness Vibration Mode, Agilent 4294A Impedance Analyzer

Resonance impedance (R0)

Static Capacitance (CP)

Agilent 4284A Precision LCR Meter (1kHz/1V)



Click for more information



Click for more information



The ceramic ultrasonic transducer is the core component of the ultrasonic flowmeter and a liquid medium sensor. It can be used in liquid flow meters and also as liquid level sensors. The product is made of self-developed piezoelectric ceramics, which have better temperature stability and superior piezoelectric effect.

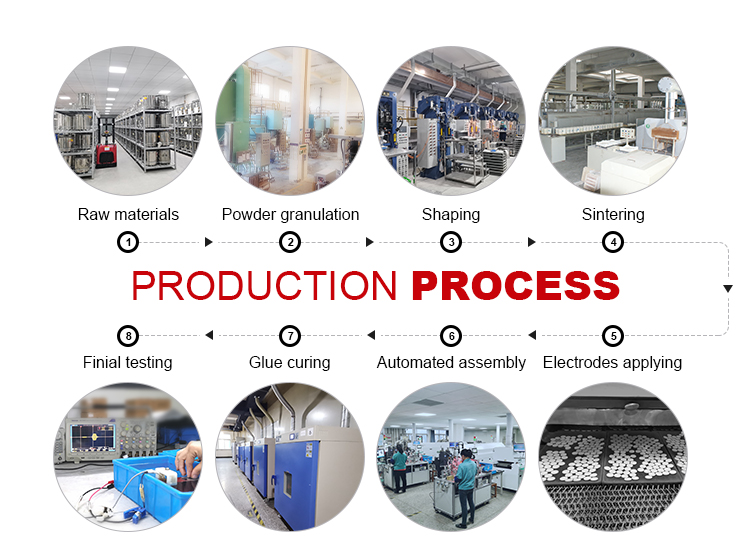

Engaged in the research and development of PZT materials and products for nearly 30 years, served as the director of the Professional Committee of Piezoelectric Ceramic Devices, and was responsible for formulating my country's "Eleventh Five-Year Plan" and "Twelfth Five-Year Plan"For the development of piezoelectric ceramics.Choosing us will make your development process earlier and faster.
