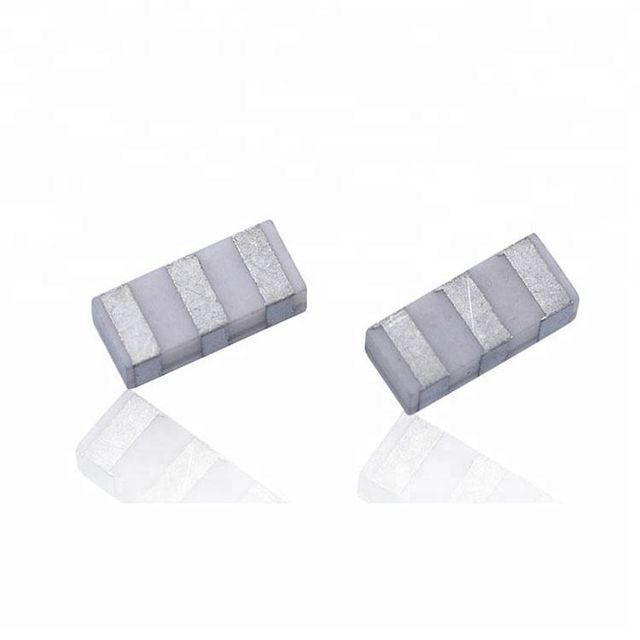

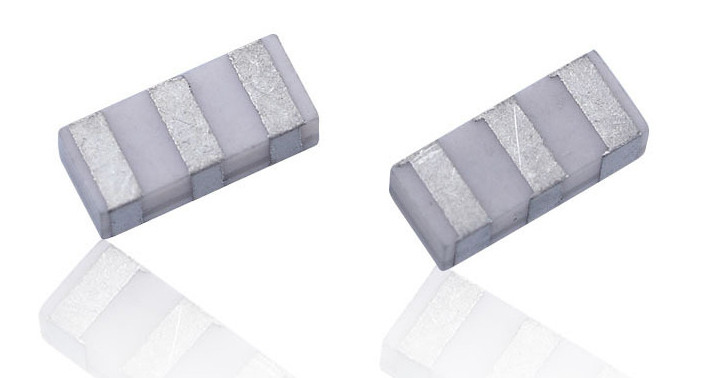

JIAKANG ZTTCE8.00~12.00MG SMD Ceramic Resonator

Supplier: Zhejiang Jiakang Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sally MA
Price: $0.06 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

model:	ZTTCE8.00MG	type:	resonator
payment terms:	Western Union, T/T	port:	Shanghai
Certification:	RoHS, REACH compliance	Packaging Details:	3K/roll, 5 rolls/inner box, 12 inner boxes/carton, total 180K/carton. Outer box size: 353536mm Weight: about 12Kg.
brand:	Kakang	place of origin; place of origin:	Zhejiang, China
Supply capacity:	2,000,000 pieces per month

Your present location:Home>>Power Frequency Passive Components> Chip components>>

Jiakang ZTTCE8.00~12.00MG SMD Ceramic Resonator

score
project	Require
Withstand voltage (V)	50 (DC, 1 minute)
Insulation resistance Ri,(MΩ)min.	500 (10V, 1 minute)
Operating temperature	-25℃~+85℃
Storage temperature	-55℃~+85℃
Rated voltage U_R(five)	6V DC
Rated voltage U_R(five)	15 volts peak

Electrical Specifications
project	Require
Oscillation frequency Fosc (MHz)	8.000~12.00
Frequency Accuracy (%)	±0.5
Resonance impedance Ro (Ω)max.	40
Oscillation temperature coefficient Frequency (%) Max.	±0.3 (oscillation frequency drift, -25°C~+85°C)
Oscillation frequency Aging rate (10 years) (%) max	±0.2 (from initial value)

aspect

test

Test Conditions

Parts should be tested under conditions (temperature: 20±15°C, humidity: 65±20%

RH) Unless standard conditions (temperature: 25±3°C, humidity: 65±10% RH) are adjusted for measurement.

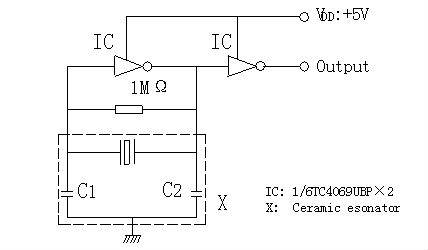

test circuit

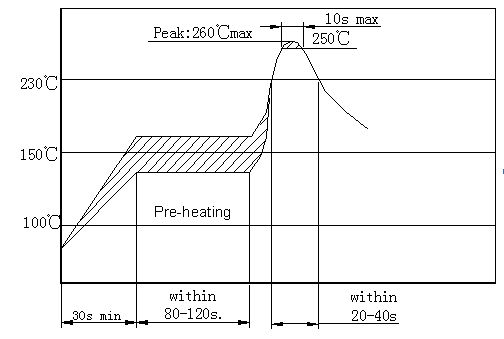

Recommended Reflow Soldering

Click for more information

Introduction to Shaakon Ceramic Resonators and Filters

With nearly 30 years of experience in the development and manufacture of SMD ceramic resonators and filters, and more than 10 national patented technologies, it is the second largest supplier in the world. Our products are widely used in audio and video, computers, home appliances, communications and other fields, industry, automobiles and other fields. These products have the characteristics of small size, light weight and high reliability, which conform to the development trend of miniaturization and high reliability of the whole machine.

Remarks: The above specifications are subject to change without prior notice. Please feel free to contact us for more details.
