40m Range serial output Laser Distance Sensor price with USB

Supplier: Chengdu JRT Meter Technology Co., Ltd.
Region: Sichuan, China
Contact: Ms Amanda Cao
Price: $25.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	distance sensor laser;	Mode 1:	Range Mode Sensor;
Single gross weight:	1 KG;	Weight:	About 10g;
Package Type:	Neutro-packing laser sensor distance;	Function:	Distance Measure;
Warranty:	12 months;	Brand Name:	JRT/OEM;
Model Number:	M703A;	Selling Units:	Single item;
Place of Origin:	Sichuan China;	Package Preview:	https://sc01.alicdn.com/kf/HTB1zOAtXWSs3KVjSZPiq6AsiVXaS.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB14BokX.GF3KVjSZFvq6z_nXXau.jpg_640x640.jpg;
Size:	45x25x12mm;	Certification:	CE ,ISO9001,ROHS, FCC ,FDA.;
Item:	laser distance sensor modules;	Mode 2:	Distance Measuring Mode;
Type:	laser distance sensor price;	Single package size:	22X17X17 cm;
Laser Grade:	Class II/class 2/2 grade,<1mW);

40m Range serial output Laser Distance Sensor price with USB

1. JRT module responds quickly with high accuracy and long range measuring

2. We have been in this laser line for over 16 years, leading supplier of laser distance meter modules in China

3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional

4. Voltage can be changed by power converter LDO

5. Operating temperature -10 ℃~50 ℃ can be customized
6. Analog can be customized.

Product Description

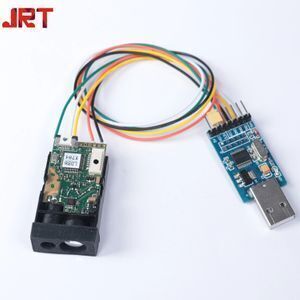

Laser range sensor we also called 703A laser distance sensor, and latest model is M88B, which is designed for industrial application. Particularly, the USB laser rangefinder sensor, you can test directly when connecting to your computer.

703A Laser Distance Sensor's principle is Point-to-Point precise measurement up to 40m. supporting single and continuous measure mode.

Accuracy	1 mm (0.04 inch)
Measuring Unit	meter/inch/feet/millimetre(m/mm)
Measuring Range	0.03-40m
Measuring Time	0.1~4 seconds
Laser Class	Class II
Laser Type	620nm-690nm, <1mW
Size	452512mm (±1 mm)
Weight	About 10g
Voltage	DC2.0~3.3V / DC3.5~4.2V
Electrical Level	TTL/CMOS
Frequency	3Hz / 8Hz
Operating Temperature	0-40 ℃
Storage Temperature	-25~60 ℃

About Module's Model:

Product Name	JRT Industrial Laser Distance Sensor
Old Version Model No.	M512A/M701A/M703A
Latest Version Model No.	M88B
Data Interface Optional	Serial port/USB/RS232/RS485

Welcome To JRT!

Pls Click Here to Get More Details

Application

JRT laser distance meter is a very convenient tool for various types of applications in industries, construction and house decoration,such as rooms, apartments, buildings, real estates, factories, warehouses, infrastructures, gardens, roads, and many other applications requiring accurate results for distance , area and volume measurement.
