frequency: | 100 Hz | Laser type: | 905 nm |
size: | 43*35*21 mm | output: | digital sensor |
accuracy: | +/-1m | model: | HLSD-100HZ-220928 |
Supply capacity: | 10000 pieces per week | brand: | Joint RT |
Package preview: | | usage: | measuring sensor |
Voltage: | 8~36V | Warranty: | 12 months |
type: | distance sensor | Storage temperature: | -15℃~45℃ |
Measuring range: | 100m | Laser class: | Level 1 |
Packaging Details: | Neutral packaging 100Hz lidar module 100m | theory: | optical sensor |
Origin: | Sichuan Province, China | weight: | 20 grams |
describe: | TOF lidar 100m | port: | Chengdu |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | | |
Our advantage
1.JRT laser ranging sensorFast response, high precision, and long measurement distance.
2. We have been in the laser industry since thenyear 2004, China's leading supplier of laser rangefinder modules.
3.30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multifunctional.
4. The voltage can be changed by the power converter LDO.
5. Working temperature-10℃~50℃Can be customized.
6. Analog quantity is enoughcustom made.Please contact JRT for customization.
Product Description
Long-distance laser measurement 100Hz high-speed TOF laser radar module 100m
frequency | 100 Hz |
Measuring range | 0.1~100m |
Voltage | 8~36V |
accuracy | +/-1m |
size | 43*35*21mm |
solve | 1 cm |
laser type | 905nm, Class 1 |
weight | 20 grams |
Operating temperature | -15~50℃Click here for custom temperatures. |
Storage temperature | -40~85℃ |
Communication Interface | serial port |

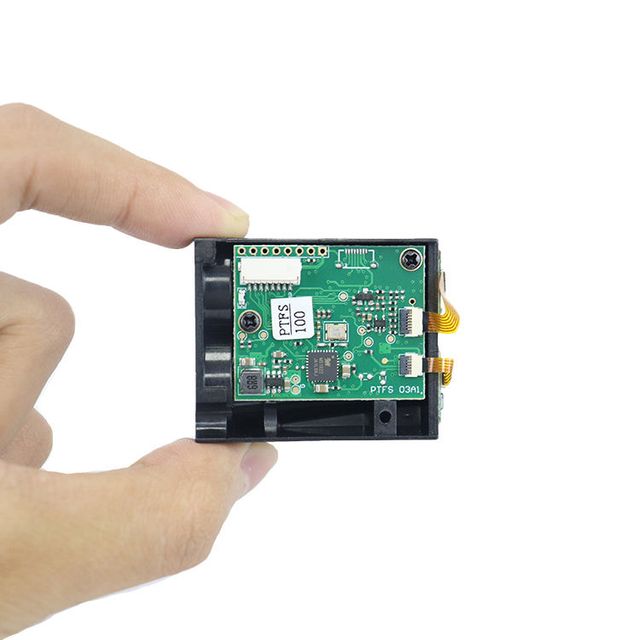

detailed picture
Based on the TOF high-frequency HSLD series, the newly launched cost-effective industrial high-precision laser ranging lidar has 100Hz high-frequency data output, a measurement range of 100m, and an accuracy of up to 1m. Using 905nm wavelength safe laser, normal operation will not hurt the eyes. The sensor has the characteristics of fast measurement speed, high measurement accuracy, and convenient installation and operation. It is suitable for robot obstacle avoidance such as drones/AGV vehicles, dynamic target positioning and monitoring, industrial control and measurement, etc.
