AM312 PIR Motion Human Sensor Mini IR Infrared Pyroelectric Detector Module Sensor Automation Control Module

AM312 Human Body Sensor Module: Digital-Based Passive Human Body Sensor

Intelligent infrared technology, automatic control products. High sensitivity,

high reliability. Widely used in various automatic induction electrical equipment.

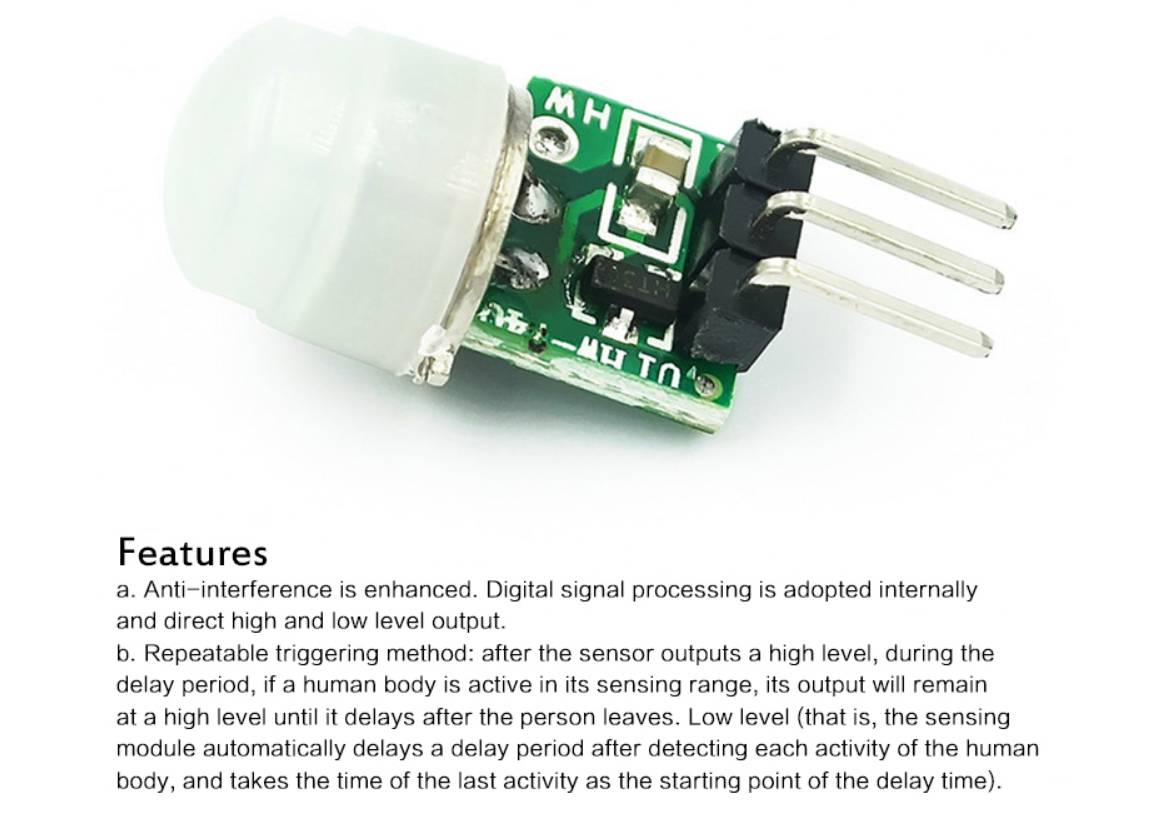

feature:

- Enhanced noise immunity, internal digital signal processing, direct high and low level output.

- Repeatable trigger: After the sensor outputs a high level, delay for a period of time,

If there is human activity within its sensing range, the output will remain high

After the person leaves, the delay becomes low (ie: the sensor module detects

Every activity of the human body will automatically extend a delay time,

and take the last active time as the starting point of the delay time).

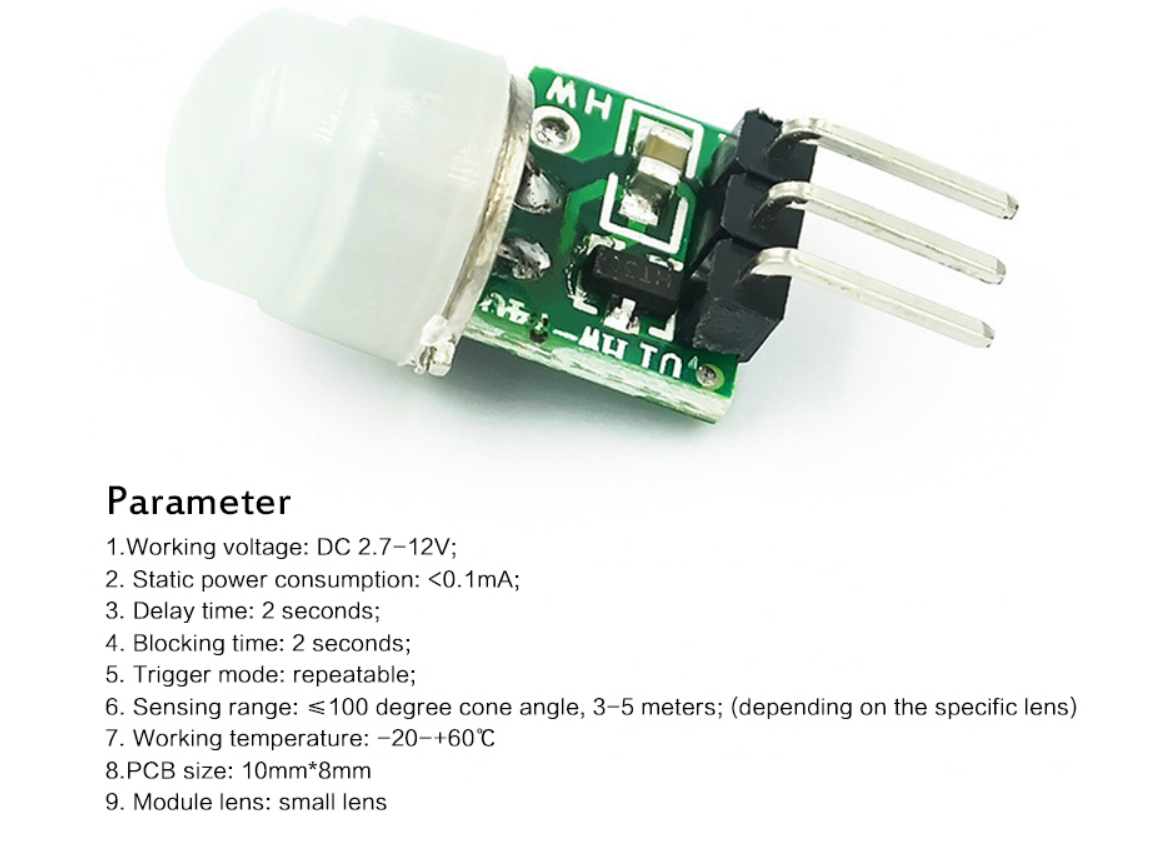

Technical Parameters:

1. Working voltage: DC 2.7-12V;

2. Static power consumption: <0.1mA;

3. Delay time: 2 seconds;

4. Blocking time: 2 seconds;

5. Trigger: repeatable;

6. Sensing range: ≤100 degree cone angle, 3-5m; (according to lens requirements)

7. Working temperature: -20-+60 degrees

8. PCB size: 10mm x 8mm

9. Overall size: approx. 12mm x 25mm

10. Module lens: small lens

Package Included:

1 x Mini IR Infrared Pyroelectric PIR Human Motion Human Sensor Detector Module
Specification:

AM312 human body sensor module: a passive human body automatic control product based on digital intelligent infrared technology. High
High sensitivity and high reliability. Widely used in various automatic induction electrical equipment.
- Enhanced noise immunity, internal digital signal processing, direct high and low level output.
- Repeatable trigger: After the sensor outputs a high level, delay for a period of time,
If there is human activity within its sensing range, the output will remain high
After the person leaves, the delay becomes low (ie: the sensor module detects
Every activity of the human body will automatically extend a delay time,
and take the last active time as the starting point of the delay time).
Package Included:

1 x Mini IR Infrared Pyroelectric PIR Human Motion Human Sensor Detector Module
