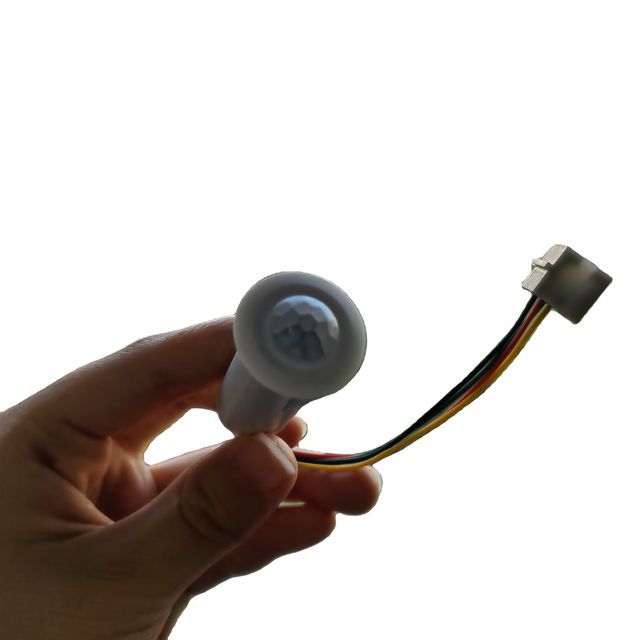

12V Closet Cabinet PIR Sensor Closet Closet PIR Switch (Passive Infrared) Auto Sensor

Supplier: Shenzhen Tuoanda Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Cathy Chen
Price: $5.16 / 2 - 499 pieces
$4.95 / 500 - 999 pieces
$4.76 / >=1000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Sensing distance:	1-5m	Sensing range:	<100 degrees
Single pack size:	8X7X7 cm	Origin:	Guangdong, China
Quiescent Current:	≤200uA	type:	Motion and Position Sensors
delay:	1 second	usage:	Position sensor, control LED
Block time:	not any	output:	12V dry contact signal
Packaging Details:	by carton	Output form:	Normally open dry contact signal
color:	white	Sales unit:	single product
brand:	Toda	Opening size 16mm:	16mm
model:	TAD-PIR-D16	describe:	DC12V motion sensor
product name:	Mini PIR Motion Sensor	Operating Voltage:	DC 12V
Gross weight per piece:	0.020 kg	theory:	Infrared sensor

Recommended Products

Specification

DC12V motion sensor

Features:

Fully automatic induction: When someone comes, the sensor outputs a signal immediately. When the person leaves the sensing range or is inactive, the sensing range is automatically turned off.
According to the change of ambient temperature, the sensing distance, range and sensitivity of the sensor will be different (the sensing distance is shorter when the temperature is high in summer, and the sensing distance is longer when the temperature is low in winter)

Scope of application:
Lighting, self-service terminals, smart devices and other electrical appliances are automatically controlled by induction, and can also be used for anti-theft purposes
