HC-SR501 Human Body Infrared Sensor Module Motion Sensor Module pir

Supplier: Shenzhen Feng Chipsource Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Jane Chen
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	The original	theory:	Infrared sensor module
type:	Human body infrared sensor module pir motion sensor module HC-SR501	Origin:	Guangdong, China
model:	HC-SR501	Packaging Details:	carton
size:	32mm*24mm	usage:	sensor module
describe:	sensor	Operating Voltage:	5V-20V
Operating temperature:	-40~125℃	port:	China
Working current:	<50uA	Block time:	2.5 seconds
delay:	5-200S	payment terms:	T/T, Western Union, MoneyGram, PayPal
Supply capacity:	100000 pieces per week	output:	switch transducer
Level output:	High 3.3 V / Low 0V

Product Description

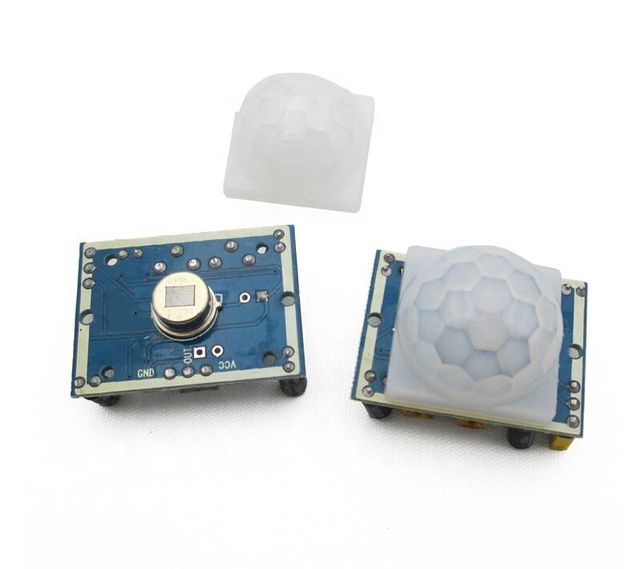

HC-SR501 human body infrared sensor module pir motion sensor module

technical specifications

Condition: 100% brand new and good quality
Product Model: HC--SR501 Body Sensor Module
Working voltage range: DC 4.5-20V
Quiescent current: <50uA
Level output: high 3.3V/low 0V
Trigger: L non-repeatable trigger/H retriggerable (repeat trigger by default)
Delay time: 5-200S (adjustable) range is (0.xx seconds to tens of seconds)
Block time: 2.5S (default) can do a range (0.xx to tens of seconds
Circuit board size: 32mm*24mm
Angle sensor: <100°cone angle
Working temperature: -15-+70 degrees
Lens Size Sensor: Diameter: 23mm (default)

application:
1. Security products
2. Human sensor toys
3. Human body sensor lighting industrial automation control, etc.
