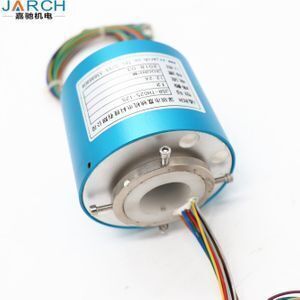

through bore slip ring, bore size 38.10mm(1.5"),Overall Diameter: 99mm(3.9"), slip ring rotary joint electrical connector

Supplier: Shenzhen Jarch Electromechanical Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Nico Wei
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Max speed:	500RPM;	Port:	shenzhen port;
Supply Ability:	500 Piece/Pieces per Week;	Model Number:	JSR-TH038 Series through bore slip ring;
Product name:	slip ring rotary joint electrical connector;	Current:	2A-20A;
Voltage:	24~600 VDC/VAC;	Circuits :	2-100 circuits;
Packaging Detail:	Gift box or custom packing;	Payment Terms:	L/C,T/T,Western Union;
Brand Name:	JARCH;	Brush:	silver/gold available;
Place of Origin:	China;	Contact Material:	Precious Metal:Gold-Gold;

Product Description

through bore slip ring, bore size 38.10mm(1.5"),Overall Diameter: 99mm(3.9"), slip ring rotary joint electrical connector

pls click here for the slip ring catalog.

Rings	2~48	Current	Signal(2A) or 5A/10A/15A/20/30
Voltage	mV~380 VDC/VAC	Max speed	500RPM (1000~3000RPM Optional)

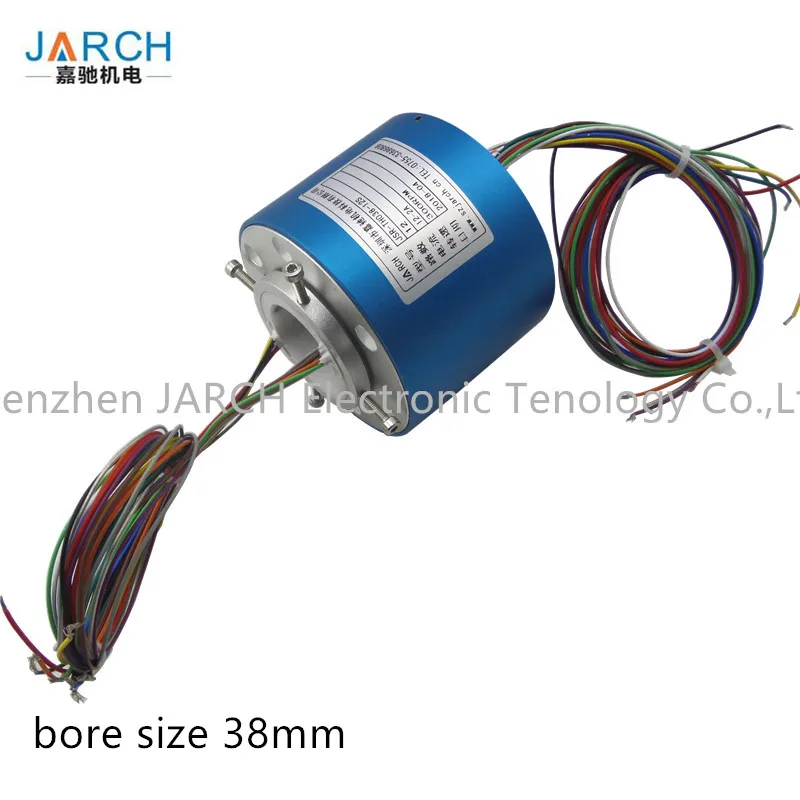

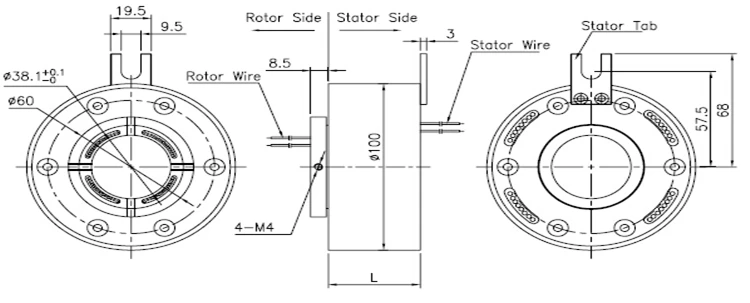

Through bore size	38.1mm(1.5")	Overall diameter	99mm(3.9")
Housing Material	Aluminium Alloy	Torque	0.05N.m;+0.03N.m/6rings
Working life	50million	Contact material	Precious Metal:Gold-Gold
Electrical noise	<5 mΩ	Contact Resistance	<2mΩ
Dielectric strength	1000VDC@50Hz	Lead Wire	UL Tf Awg26,Awg22,Awg16
Insulation resistance	500MΩ@600VDC	Lead Lengths	300mm(12")
Operating Temp.	-40°C to 80°C	Protection	IP54 (IP68 Optiaonal)
Materials	Lead Free, ROHS	Certificate	CE,FCC,ROHS,UL

We can do the slip ring as your requiments. pls tell us your specifications of the slip ring you need.

pls click here for more details and catalog of our slip ring.

pls click here for more details and catalog of JARCH slip ring.

pls click here to contact us for more details and catalog of JARCH slip ring.

Jarch main products:

1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring series

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?

At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.

FAQ

Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.
A: If you want to costomize the special slip ring model, you need provide details as below: a.operatring speed(RPM) b.the type of installation c.outline size d.channels(the No. of single wire besides cable) e.rated voltage & current for power rings and signal rings f.the signal type and related parameters(very important) g.operating temperature h.IP(sealing requirements)
Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
