Thinest 5mm pancake slip rings , panshi flat electrical slip rings
-
Supplier: Shenzhen Jarch Electromechanical Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Nico Wei -
Price: $10.00 /piece -
Min. Order: 1 piece
| Packaging Detail: | 1 pcs slipring 1 gift box; | Current: | 10A; |
| Single package size: | 20X20X20 cm; | Selling Units: | Single item; |
| Model Number: | JSR-PS025-6P10-SP; | Place of Origin: | Guangdong China; |
| Contact Material: | Precious Metal:Gold-Gold; | Usage: | revolving door, Medical equipments, autor machines; |
| Signal: | 2; | SHIPMENT WAYS: | Express Freight Air Sea; |
| Type: | Pancake slipring; | Product name: | Pancake slipring; |
| Single gross weight: | 1.0 KG; | Certificate: | CE .ROHS; |
| Hole Size(mm): | 25mm; | Thickness: | 28mm; |
| Brand Name: | Jarch; |

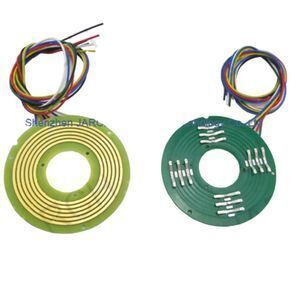

Thinest 5mm pancake slip rings , panshi flat electrical slip rings
Feature:
Ultra-thin,5mm thickness
6 circuits
12 colors lead wires available
ID:25mm
Rotor and stator lead exits
Description:
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
JSR-PS025-6P10
Hole size: 25mm , Thickness:5mm
2,3,4,6,8,12,18,24 circuit version
In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. JSR-PS025-6P10, with 5mm thickness and hol size 25mm, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates
The JSR-PS025-6P10, with 2 ~ 24 circiuts and compact 5mm body thickness, which we call our disk slip ring .
Benefits:
Longer lead lengths available
Power and signal combinations
Rotor and stator lead exits
gold alloy brush,Gold plated rings
IP65 are optional
More thickness available
Dimensions:
Model Explanation:
| Operating Speed | 0-300 rpm |
| Number of Circuits | 2 ~ 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°Cto +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
Ethernet slip ring FORJ Fiber optic rotary joint A4H Mercury slip ring
JARCH is a professional manufacturer of sliprings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have slipring, fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome!
-
