5 circuits separate pancake slip ring routing USB2.0 and signal contact with precious metals
-
Supplier: Shenzhen Jarch Electromechanical Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Nico Wei -
Price: $20.00 /piece -
Min. Order: 1 piece
| Product name: | Flat Slip rings; | Place of Origin: | Guangdong China; |
| Current Rating: | 10A; | Usage: | PCB slipring brushless slip ring for robot arm; |
| Contactor Material : | Gold - Gold; | Payment Terms: | L/C,T/T,Western Union; |
| Circuits : | 4; | Voltage: | 240VDC-240VAC; |
| Model Number: | JSR-PS028-4S-SP; | Brand Name: | JARCH; |
| Current: | 2A-10A; | Port: | shenzhen port; |
| Supply Ability: | 500 Piece/Pieces per Week; | Certificate: | CE; |
| Housing Material: | Alumi; | Packaging Detail: | Gift box or custom packing; |
| Inner size: | 28mm; |

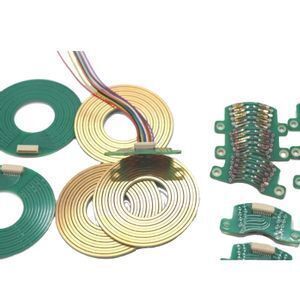

5 circuits separate pancake slip ring routing USB2.0 and signal contact with precious metals
- ultra-thin flat slip ring
- Inner diameter:28mm
- gold alloy brush,gold plated rings
- More thickness available
- OEM is welcome
PCB slipring brushless slip ring for robot arm
| Operating Speed | 0-300 rpm |
| Number of Circuits | 2 ~ 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20°Cto +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 5mΩMin |
5 circuits separate pancake slip ring routing USB2.0 and signal contact with precious metals

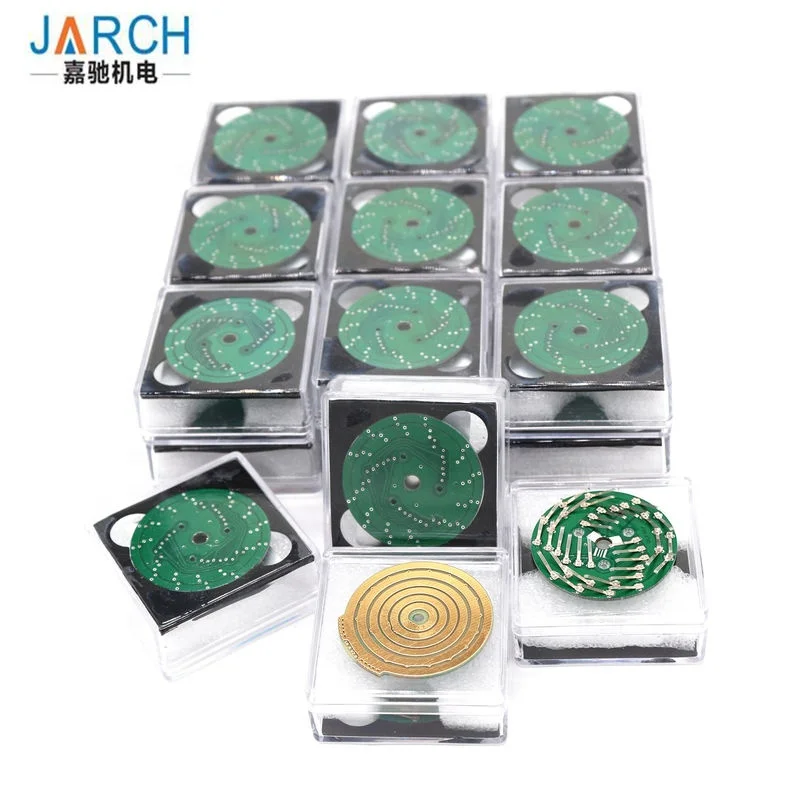

Packing
Ethernet slip ring FORJ Fiber optic rotary joint A4H Mercury slip ring
5 circuits separate pancake slip ring routing USB2.0 and signal contact with precious metals
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. |
||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. |
JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.
We have 8 types of patented products at present and have established extensive and long-term cooperation with many domestic research institutes(Beijing University,SAS,,Beihang University,etc), and own a skilled management team.To creat the brand and do famous brand,we carry out strict performance ISO9001 standard of CQC.
Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
Our products are sold to more than thirty provinces in China and exported to more than 38 countries. Our main customers have Huawei,Foxconn,Sany Heavy Industry,BYD,etc.
OEM and ODM are highly welcome! click here to contact us for the catalog.
-
