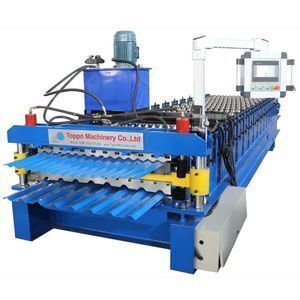

Double Layer Roof Automatic Tile Roll Making Forming Machine

Supplier: Botou Toppo Machinery Co., Ltd.
Region: Hebei, China
Contact: Mr. Jeffrey Yao
Price: $7600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	a. Fit for ocean shipping b. The main body is fixed to the container by 8mm diameter steel wire; c. Rollers and shaft are covered with anti-rust oil d.Spare parts in a carton box.;	Dimension(LWH):	About 6.81.61.25m;
Key Selling Points:	Easy to Operate;	Delivery Time:	35 working days after deposit;
Operation Language:	English/Spanish/Chinese;	Supply Ability:	30 Set/Sets per Month;
Tile Type:	Colored Steel;	Showroom Location:	Peru,India,Kenya,Argentina,Chile,Colombia,Sri Lanka,Romania,Bangladesh,South Africa;
Production Capacity:	0-20 m/min;	Voltage:	380V 50Hz 3 Phase;
Port:	Tianjin Port;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
After-sales Service Provided:	Field installation, commissioning and training;	Condition:	New;
Brand Name:	TOPPO;	Control System:	fully automatic;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Type:	Tile Forming Machine;
Color of Machine:	blue, gray, or your required color;	Warranty:	2 years;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;	Local Service Location:	India,Kenya,Chile,Colombia,Sri Lanka,Romania,Bangladesh,South Africa;
Life Time:	at least 5 years;	Certification:	ISO/CE/SGS;
WhatsApp:	0086-15631793989;	Suitable Material:	Q235 or similar;
Use:	Roof;	Package Preview:	https://sc02.alicdn.com/kf/H51ec9ab6a85c491daf80108b62359f8fc.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H2b77f8a069b944e18e357b92387ddba3C.jpg_640x640.jpg;
Place of Origin:	Hebei China;	Feature:	high production speed;
Weight:	about 3.5T;	Raw Material:	PPGI/Galvanized Sheet;

Double Layer Roof Automatic Tile Roll Making Forming Machine

Product Description

Name	Double Layer Roof Automatic Tile Roll Making Forming Machine
Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Coil Width Range	914, 1000, 1220 or 1250 mm. According to your actual drawing.
Electric Power	380V, 50 Hz, 3 phase or according to your need.
Dimension	About 7.21.31.1m(LWH), as per the drawing
Cutting	Automatically stop and cutting when it comes to the set length.
Length of the Sheet	You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm.

Working Flow

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

Details Show

——Details Show——

——Product Details——

uncoiler
Loading capacity	5T
Inner diameter	470-530mm
Steel coil width	914, 1000, 1220, 1250 mm. According to your actual drawing.
Working speed	0-15m/min, adjustable

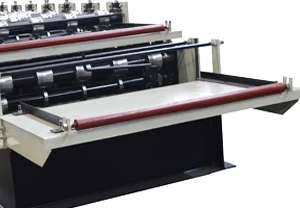

feeding table

It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,

to make sure the panel is neat and parallel.

main frame
Material	350 H steel
Feature	more table, no shaking

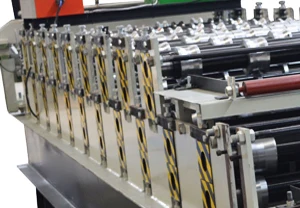

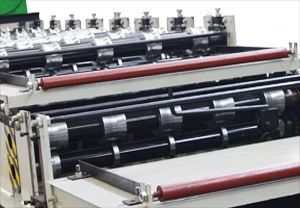

forming rollers

Material

High grade 45# steel.

Roller stations

11-16 stations.

According to your actual drawing

cutting system
Material of blade	Cr12MOV, much better than normal Cr12 material
Hydraulic power	3KW

control cabinet

Suitable power

380V, 50Hz, 3phase

or according to your need.

Feature

The whole process is automatically controlled by the computer.

In this way, you can ensure the accuracy and easy work.

Product Display

—–Product Display—–

Product Applications

Product Applications

The advantage of IBR sheet includes beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

Catalog

Catalog

Packaging & Shipping

Packaging&Shipping

a. Need one 20 or 40 ft container, according to your final drawing.

b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is

covered with anti-rust oil.

c. Spare parts in carton box.

About Us

About Us

Toppo Machinery starts roll forming machine since 1998.

We know well the requirements for the customers from different countries and have an outstanding export teams who will take care of your requests. Our experts and skilled workers complete the work with great precision.

We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.

FAQ

1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.

2. Do you provide training for my workers?

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.

3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.

4. What is included in the machine?

The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.

a. Put the machine on the flat level ground.

b. Inject gear oil and hydraulic oil.

c. Connect 3 phase electric wire.
