Customized Steel Automatic Steel Stud And Track Roll Forming Machine
-
Supplier: Botou Toppo Machinery Co., Ltd. -
Region: Hebei, China -
Contact: Mr. Jeffrey Yao -
Price: $9800.00 /set -
Min. Order: 1 set
| Color of Machine: | blue, gray, or your required color; | Production Capacity: | 25-30 m/min; |
| Voltage: | 5.5 kw; | Weight: | about 1.8 T; |
| Operation Language: | Chinese/English/Spanish; | Power(W): | 380V 50Hz 3phases; |
| Condition: | New; | Port: | Tianjin Port; |
| WhatsApp: | 0086-15631793989; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Delivery Time: | 35 working days after deposit; | Certification: | ISO/CE/SGS; |
| Work Pressure: | 195 Mpa---350 Mpa; | Brand Name: | Toppo Machinery; |
| Type: | Steel Frame & Purlin Machine; | Packaging Detail: | a. need one 20 or 40 ft container, according to your final panel size. b. Fit for ocean shipping. c. The main body of Automatic Zinc Metal Roof Sheet Cold Roll Forming Machine fixed to the container by 8mm diameter steel wire. Rollers and shaft are covered with anti-rust oil. d. Spare parts in carton box.; |
| Warranty: | 1 Year; | Place of Origin: | Hebei China; |
| Control System: | fully automatic; | Supply Ability: | 30 Set/Sets per Month Steel Automatic Steel Stud And Track Roll Forming Machine; |
| Dimension(L*W*H): | About 4.8*0.8*1.2 m (L*W*H); | Delivery Detail: | within 35 working days after 30% deposit; |
| Life Time: | at least 5 years; | Raw Material: | PPGI/Galvanized Sheet; |
| Suitable Material: | Q235 or similar; | Feature: | high production speed; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Name: | Customized Steel Automatic Steel Stud And Track Roll Forming Machine; |
| Model Number: | Toppo; |

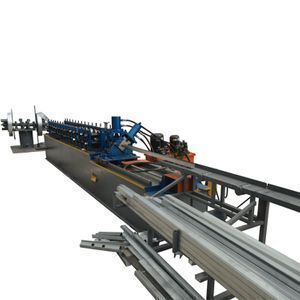

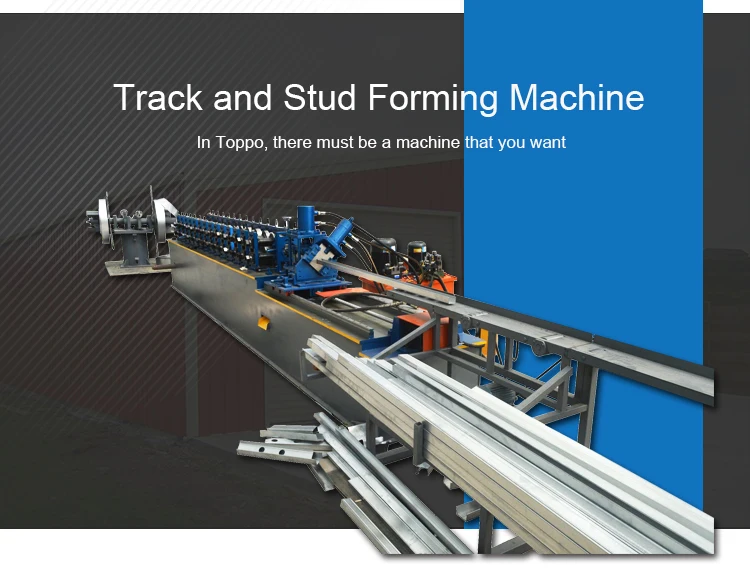

Customized Steel Automatic Steel Stud And Track Roll Forming Machine
| Product Description |
Name | Customized Steel Automatic Steel Stud And Track Roll Forming Machine |
Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
Thickness Range | 0.3-0.8 mm |
Coil Width Range | According to your actual drawing. |
Electric Power | 380V, 50 Hz, 3 phase or according to your need. |
Dimension | About 4.8*0.8*1.2 m(L*W*H), as per the drawing |
Cutting | Automatically stop and cutting when it comes to the set length. |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

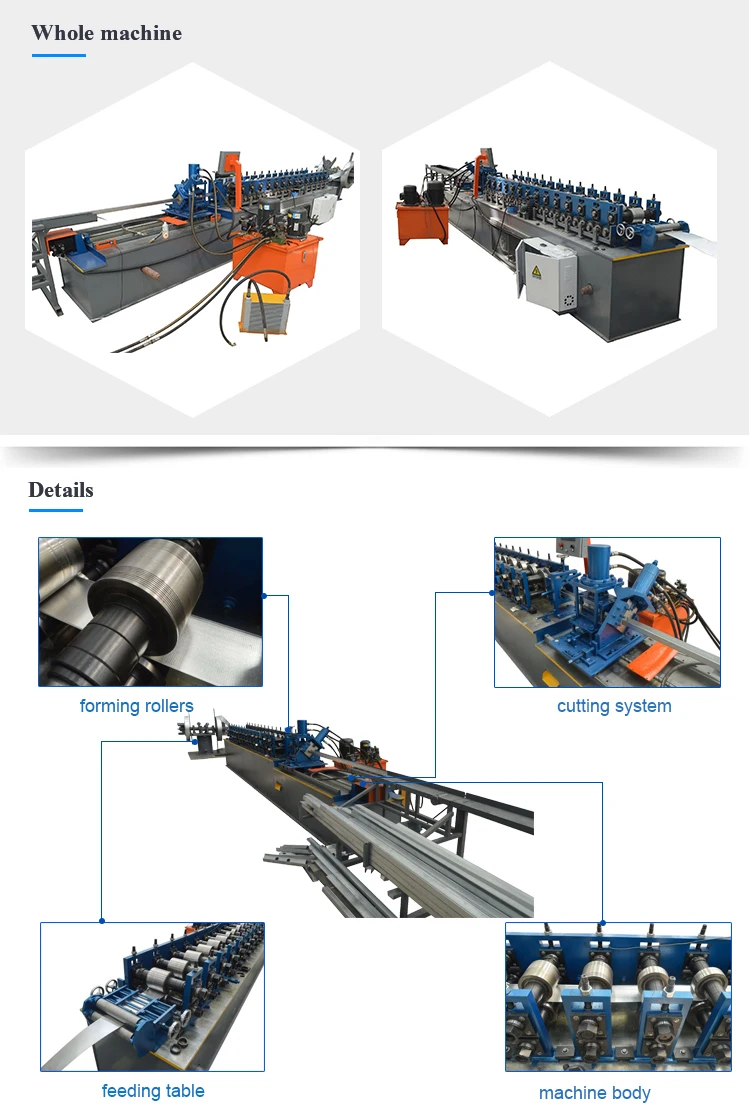

——Details Show——

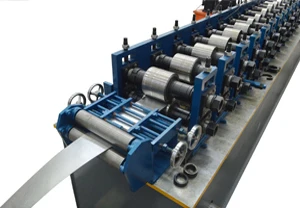

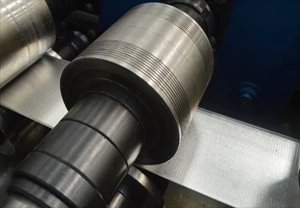

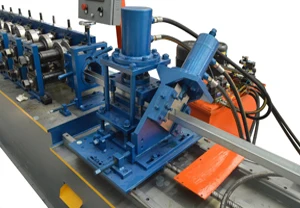

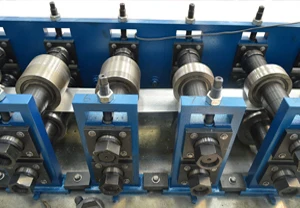

——Product Details——
 |
| ||||||||
|  |
 |
| ||||||
|  | ||||||
 |
| ||||||
|  | ||||||
—Product Display—
| Product Applications |
| Catalog |
Packaging&Shipping |
a. Need one 20 or 40 ft container, according to your final drawing.
b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is
covered with anti-rust oil.
c. Spare parts in carton box.
| About Us |
Toppo Machinery starts roll forming machine since 1998.
We know well the requirements for the customers from different countries and have an outstanding export teams who will take care of your requests. Our experts and skilled workers complete the work with great precision.
We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.
Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.
| FAQ |
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand
The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
| Contact Us |
If you need any more information, be free to contact us.We will reply within 12 hours
