GTAW/ TIG stainless steel tube orbital welding machine steel

Supplier: Hyzont (Shanghai) Industrial Technologies Co., Ltd
Region: Shanghai, China
Contact: Mr. Raymond Mao
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Usage:	Pipe Welding;
Welding Type:	GTAW/TIG fusion without wire feeding;	Welding Power Source Model:	OBT-200;
Brand Name:	Hyzont;	Voltage:	220V;
Power(W):	6.3Kva;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Weight:	3KG;	Welding Thickness:	1-3mm( Stainless Steel);
Cuttent Output:	200A;	Name:	Steel Tube TIG orbital Welding System;
Tube Diameter:	6-38.1mm/1/4"~1 1/2";	Warranty:	12 months;
Supply Ability:	50 Set/Sets per Month;	Welding Head Model:	CFH-15;
Port:	Shanghai;	Dimensions:	37738100mm;
Place of Origin:	Shanghai China (Mainland);	Packaging Detail:	Aluminum flight case or as buyer requirement;
Condition:	New;	Certification:	ISO9001.CCC. CQC;

Product Description

Application

The orbital welding process uses the Gas Tungsten Arc Welding process (GTAW/TIG) as the source of the electric arc that melts the base material and forms the fusion weld. The metal to be welded is melted by the intense heat of the arc and fuses together without wire feeding. The ability to make high quality, consistent welds repeatedly at a speed close to the maximum weld speed offer many benefits to the user.

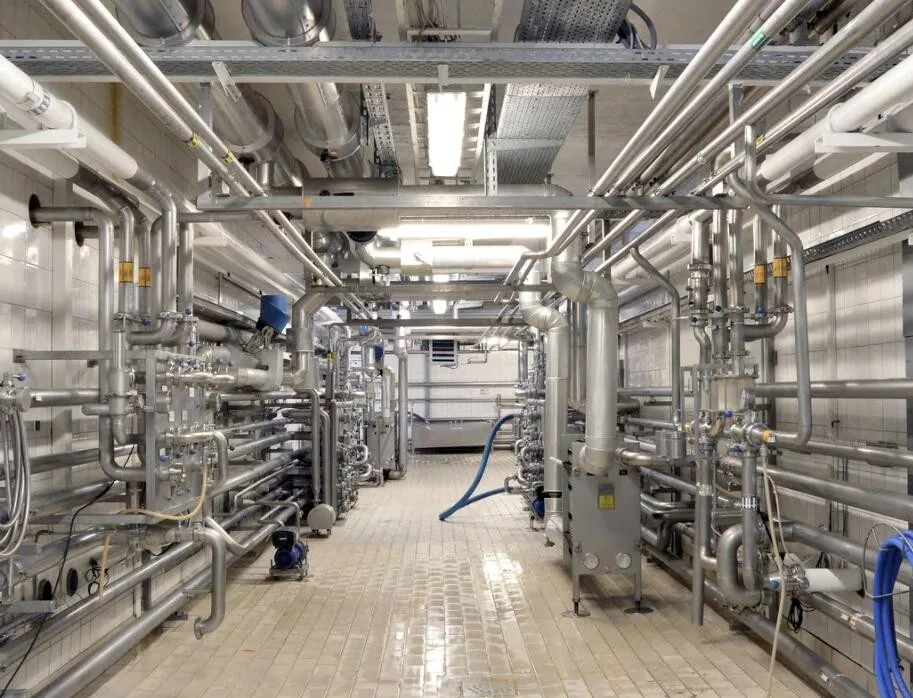

This system widely applied in

1 High purity gases pipe welding

2 Hydraulic tube welding

3 Sanitary piping welding and installation

4 Instrument and pipe installation industries.

CFH-15 TIG orbital welding head is designed as a compact and portable welding tool which compatible with only OBT-200 welding power source. This welding head standard package includes 6 sets of aluminum mould:

OD:6.35mm/OD:9.53mm/OD:12.7mm/OD:25.4mm/OD:30.8mm/OD:38.1mm

Specification of Orbital Welding Head CFH-15
Model	CFH-15
Welding Power Source	OBT-200
Tube OD(mm/Inch)	6~38.1 ( 1/4"~1 1/2")
Weld Type	GTAW/TIG butt Welding ( No wire feeding)
Welding Tube Materials	Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting Type	Straight tube, Pipe flange, Elbow
Tube Wall Thickness(mm)	1-3mm
Tungsten OD(mm)	1.6
Rotating	360 degree free rotated and Auto reset / All-position welding
Rotation speed(rpm)	0.3~6
Shield Gas	Argon
Cooling	Water
Cooling Flow(ml/min)	1000
Cable Length	6m( Standard Machine)
Dimension(mm)	37738100
Weight (Kg)	3

Main Features

1 All key parts are imported insulation and heat-resisting materials

2 Compact and handy closed welding Head which made by aluminum alloy,light and durable

3 Germany original rotating motor, welding process stable and reliable

4 Adjustable parameter during welding process for some special welding requirements

5 Built-in various welding head parameters for accurate motion control

6 Water circuit cooling design for long time working

7 Unique design of inner orientation gas circuit

8 Quick-install Clamps, easy to use

Detailed Images

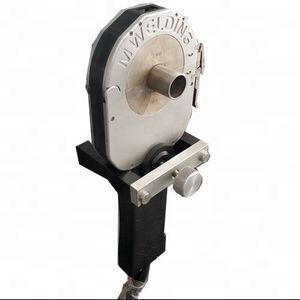

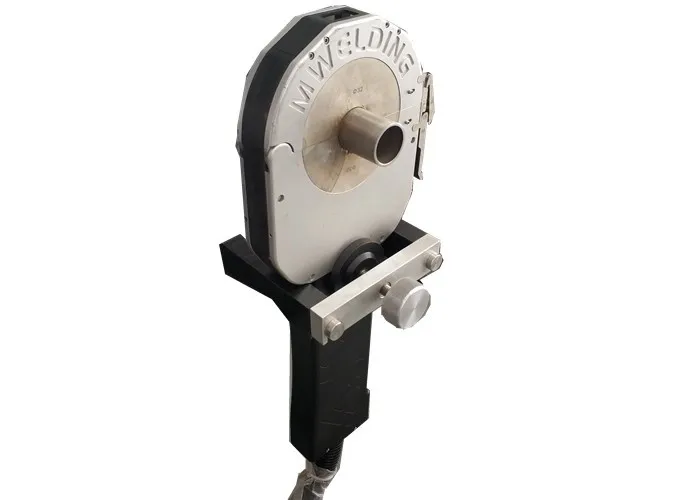

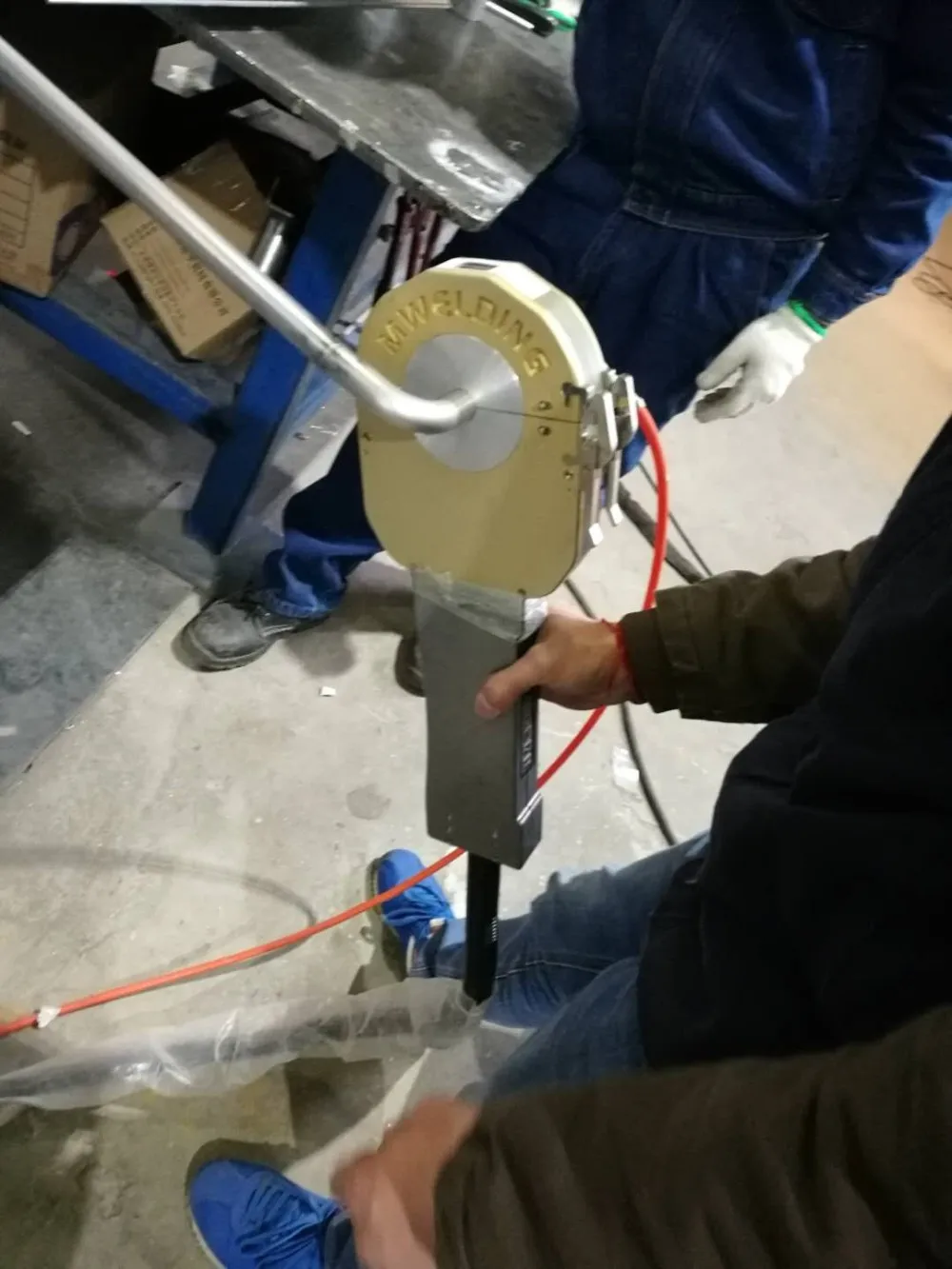

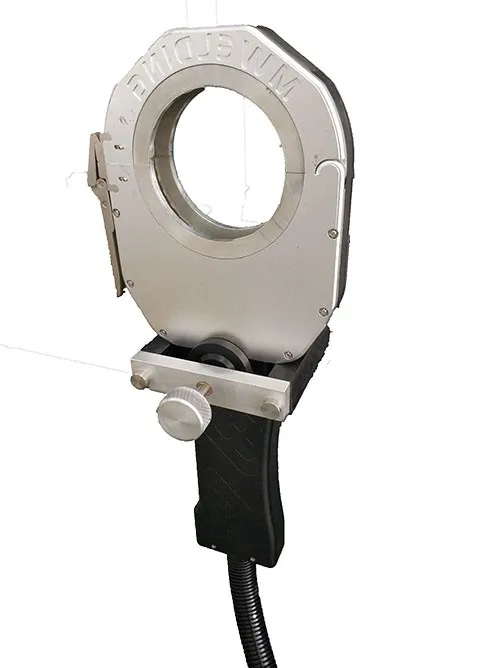

Welding Head Body

Brand: Hyzont

material : Aluminum

Features: 1 Total 3Kg ,easy to move on

2 Aluminium structure light and sturdy

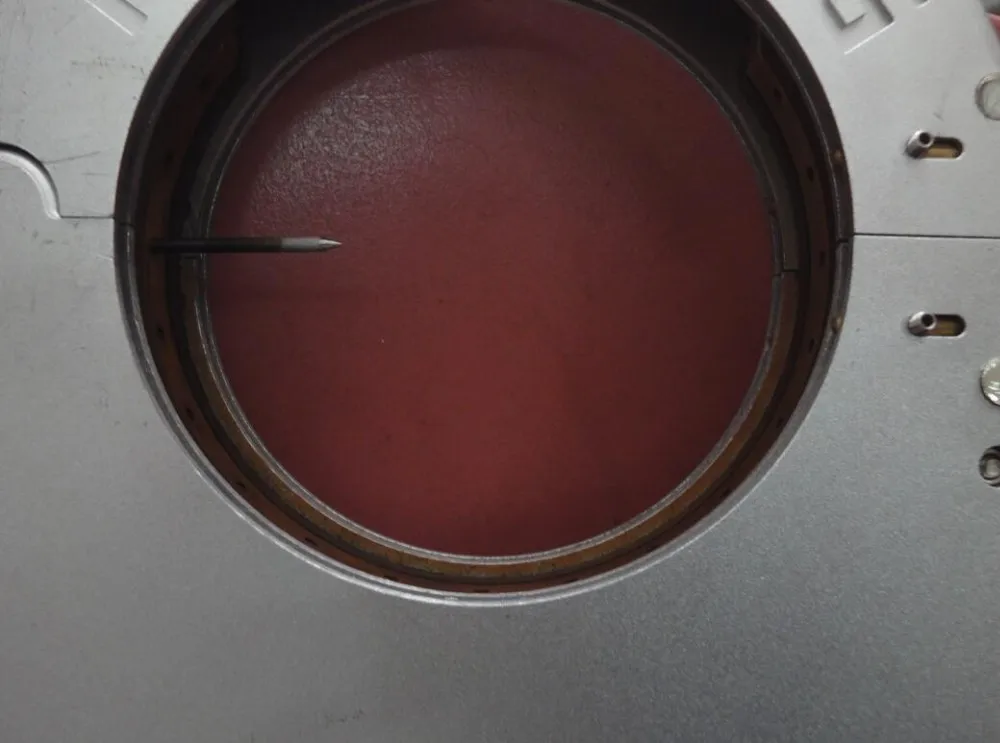

3 360 degree free rotating with 1.6mm tungsten electrode

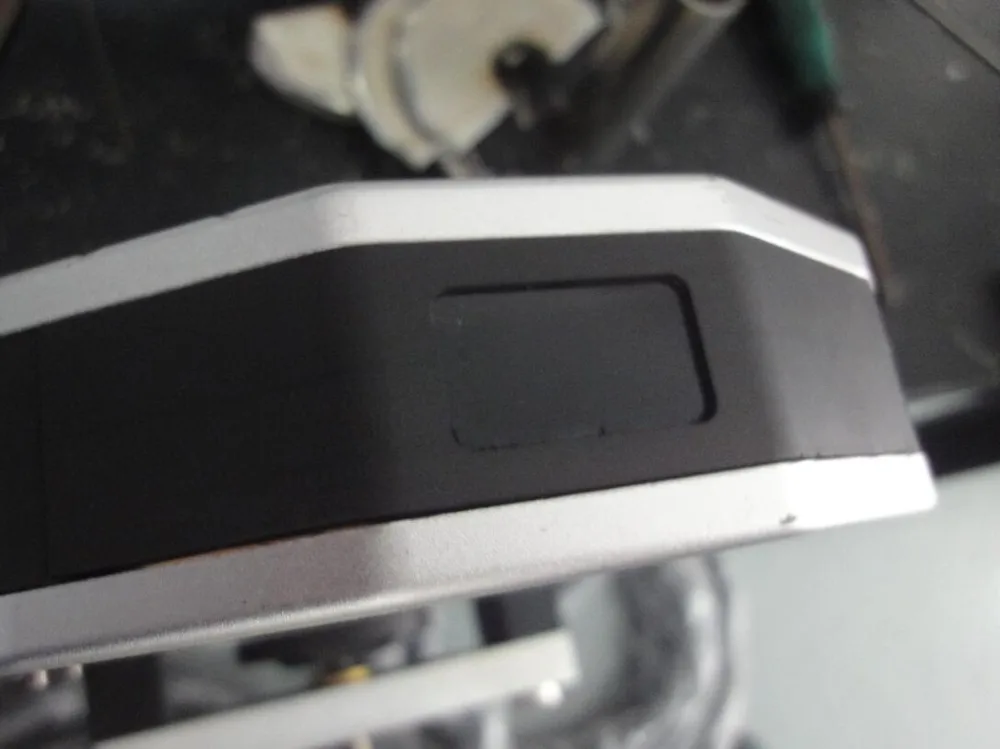

Watch Window

You Can observe all welding process through this watch window and timely stop or adjust Welding process.

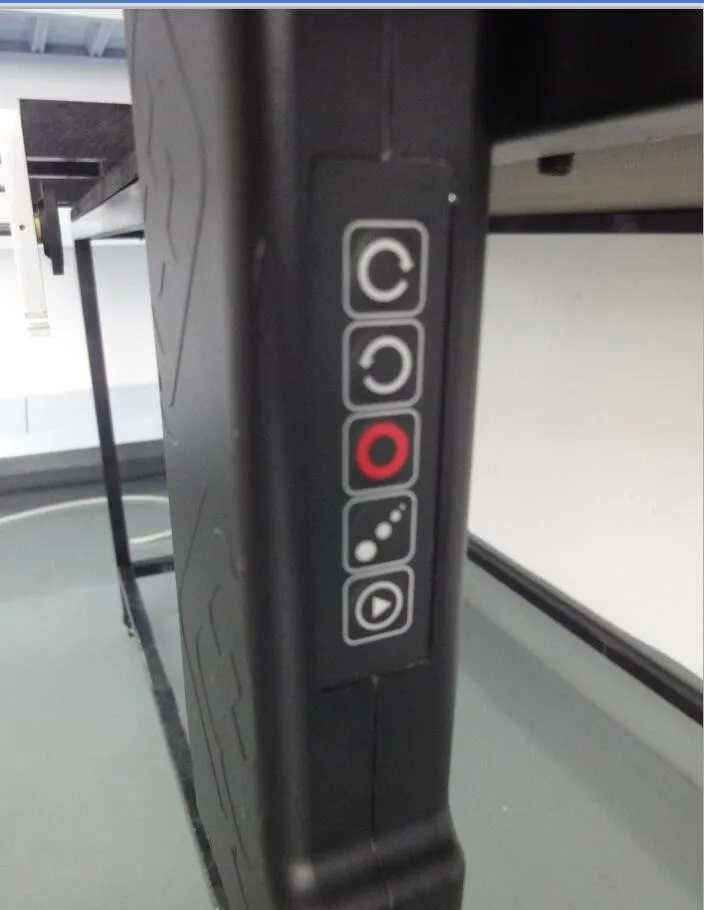

Control Buttons

These buttons controls welding head rotating forward, reverse, welding start ,stop and other operations, simple and easy to use.

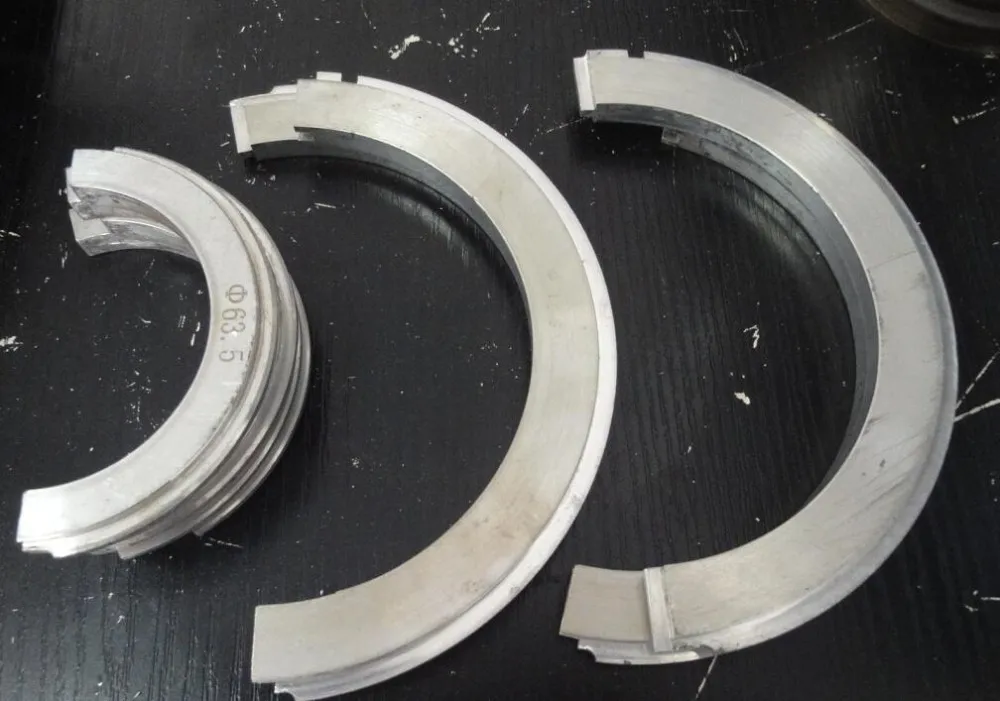

Clamping Mould

Standard package includes 6 sets of aluminum mould:

OD:6.35mm

OD:9.53mm

OD:12.7mm

OD:25.4mm

OD:30.8mm

OD:38.1mm

Our Service

Pre-Sales Service

* Inquiry and welding process consulting support.

* Work-Piece sample welding test support.

* View our OEM Factory.

After-Sales Service

* Installation and operation training at our company

* Engineers available to service machinery overseas.

* 7*12 hours online support

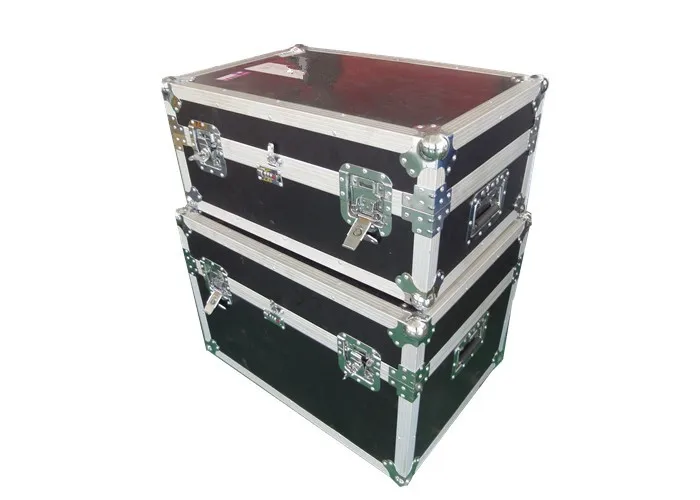

Packing & Delivery

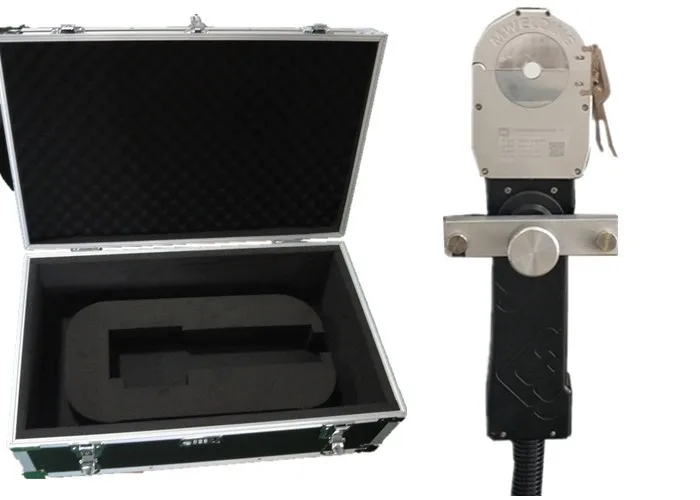

Packaging of CFH-15 Welding Head
Size	850mm450mm220mm(LxWxH)
Weight	G.W 7Kg
Packaging Details	* The normal package is Aluminum flight box. Which is sturdy and protection well the goods inside. It is available to carry on or air transport.

Packaging of OBT-200
Size	1100mm600mm550mm(LxWxH)
Weight	25Kg
Packaging Details	* The normal package is Aluminum flight box. Which is sturdy and protection well the goods inside. It is available to carry on or air transport.
