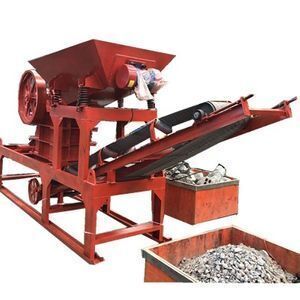

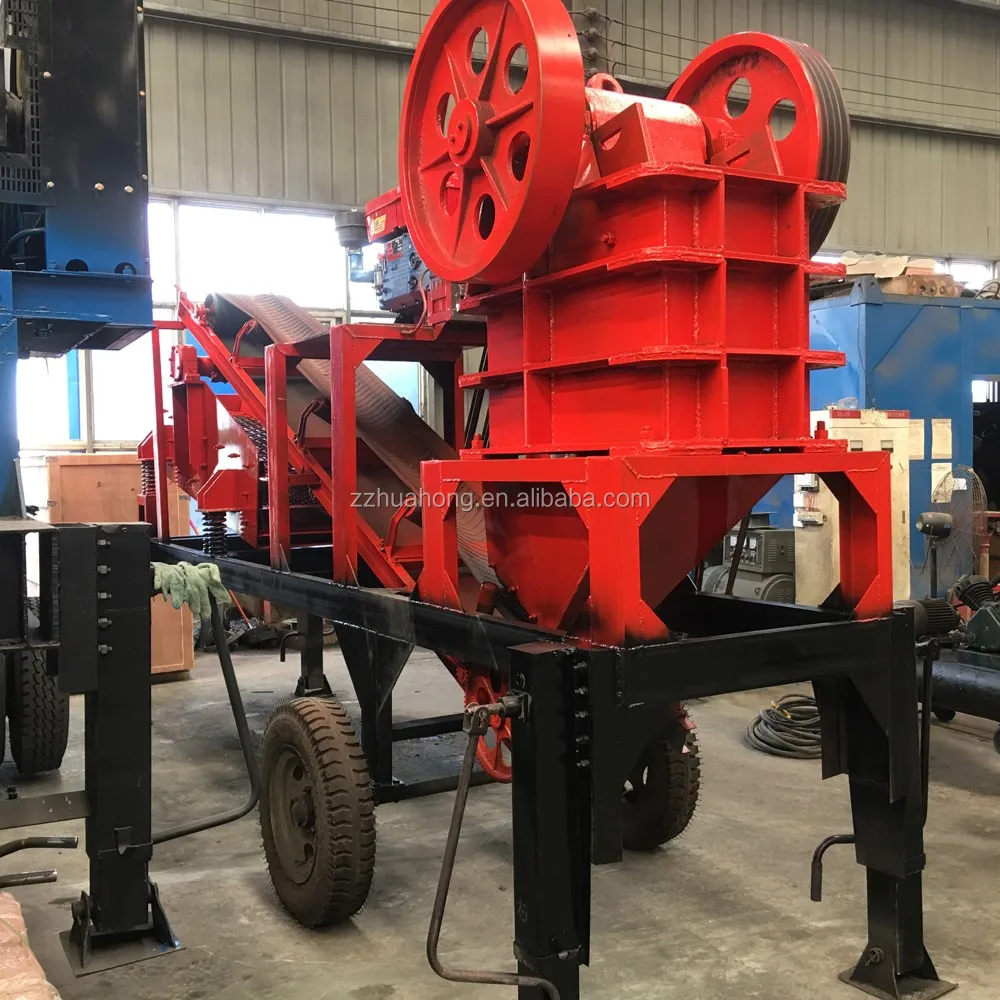

jaw crusher station , mobile stone crusher plant ,stone jaw crusher

Supplier: Zhengzhou Huahong Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr hong hua
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO;	Warranty:	one year;
visit factory:	supply;	Type:	Jaw Crusher;
Condition:	New;	Brand Name:	huahong;
Power(W):	15KW;	Weight:	2.8t;
Packaging Detail:	wooden case packing;	Application:	stone, ore,rock;
Capacity(t/h):	5-20;	Supply Ability:	100 Set/Sets per Month;
Dimension(LWH):	130010901270;	Place of Origin:	Henan China;
Motor Type:	AC Motor;	Port:	shanghai tianjing qingdao;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;

Product Description

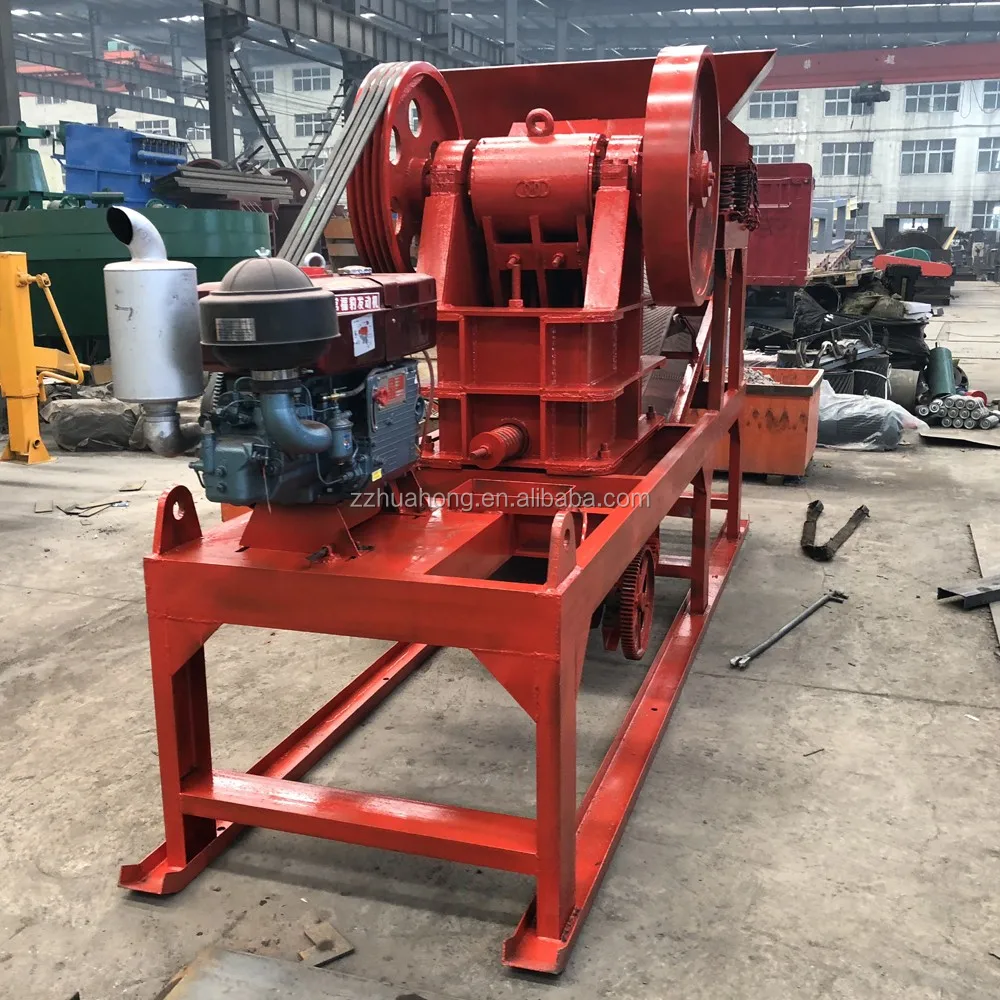

jaw crusher with diesel engine,stone jaw crusher,the structure of jaw crusher

Small Jaw Crusher is composed of Sheave, jaw plate, frame, eccentric shaft, toggle plate, hydraulic setting system, etc. Please check out the picture below, you can see the structure of jaw crusher clearly.

Working principle of diesel engine jaw crusher

Motor drives V-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. Moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process.

Moving jaw moves downwards from fixed jaw by pulling rod and spring when angle between toggle plate and moving jaw decreases, so the final crushed materials are discharged from the outlet. The moving jaw moves periodically according to the eccentric shaft movement, and the materials entering the crushing chamber are crushed and discharged continually.

Advantage of diesel engine jaw crusher

1. Big reduction ratio

2. Even granularity

3. Simple structure

4. Reliable working condition

5. Convenient repair and economic operation

6. Widely used for mine, smelting, building material, road, railway, irrigation works

7. Chemical and materials with compression strength no more than 320 Mpa.

Product dates

Model	Feed opening size (mm)	Max feed size(mm)	Adjustable range (mm)	Capacity (t/h)	Eccentric shaft rotary speed (r/min)	Motor power (kw)	Total weight (t)	Overall dimensions (LWH)(mm)
PE-150×250	150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	90-110	29	2660×2430×2800
PE-800×1060	800×1060	640	160-220	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-300	400-800	180	160	100.9	4200×3300×3500
PEX-150×750	150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600
