RELA PVC Series vacuum conveyor for flour powder

Product details
Capacity:350-6000kg/h;Condition:New;
Type:Pneumatic Vacuum Conveyor;Dimension:Depends;
Single package size:45X40X80 cm;Selling Units:Single item;
Function:Transporation;Transmission Length:0.01,0.03 km;
Model:PVC serise;Place of Origin:Jiangsu China;
Single gross weight:30.0 KG;Air pressure:0.6Mpa;
Packaging Detail:flour powder vacuum conveyor usually packed with plastic Film & Plywood Case;Dimension(L*W*H):450*400*800MM;
Hoisting Height:3,3 m;Application:Powder;
Certification:BV;Warranty:1 YEAR;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Air Consumption:180-4320l/min;Weight:30KG;
Product Description

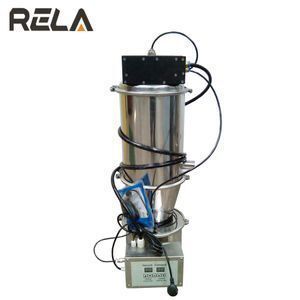

RELA PVC Series vacuum conveyor for flour powder

RELA Pneumatic Vacuum Conveyor (PVC) is the process of moving bulk dry materials, such as powders, from pick uk place A to destination place B within a factory using suction.

Working Principle

RELA Pneumatic Vacuum Conveyor (RPVC) is the process of moving bulk dry materials, such as powders, from pick-up place A to destination place B within a factory using suction. The material is transferred in a network of tubing from the pick-up point or source to the customer's process. Most Vacuum conveying system transfer product based on a timed interval to the vacuum receiver. During conveying, the material is entrained in the air stream and there is an almost equal part of air and product. At the end of the timed sequence the discharge valve can open and the conveyed material can discharge into the process.

Technical Parameters
     Model
Capacity (kg/h)
Air Consumption (L/min)
Dimension (mm)
Weight (kg)
PVC-1
350
180
Dia 159 * 560
10
PVC-2
700
360
Dia 220 * 780
21
PVC-3
1500
720
Dia 290 * 850
30
PVC-4
3000
1440
Dia 420  * 1150
40
PVC-5
5000
2880
Dia 420 * 1250
55
PVC-6
6000
4320
Dia 420  * 1350
70

Remark

1. Required air pressure 0.6Mpa; Compressed air should be dry, clean, no oil, no water.


2.The capacity of PVC-1 in the sheet is tested in 3 meters, other models are in 5 meters.


3. The capacity range is big on different materials.


Advantages

1. Simple to installation & operation & maintenance

2. Compact size

3.Easy to clean, Dust free operation

4.Low noise level

5. High efficient


Choose model

If you don't know how to choose the suitable model, send us the following information:


1. What is the product name, size, specific density?

2. From where to where? the pick-up place and the destination place?

3. How long is the transportation distance? the length and height?

4. Which type do you need, Type A (fixed) or Type B (movable)?

5. What is the capacity per hour you need?

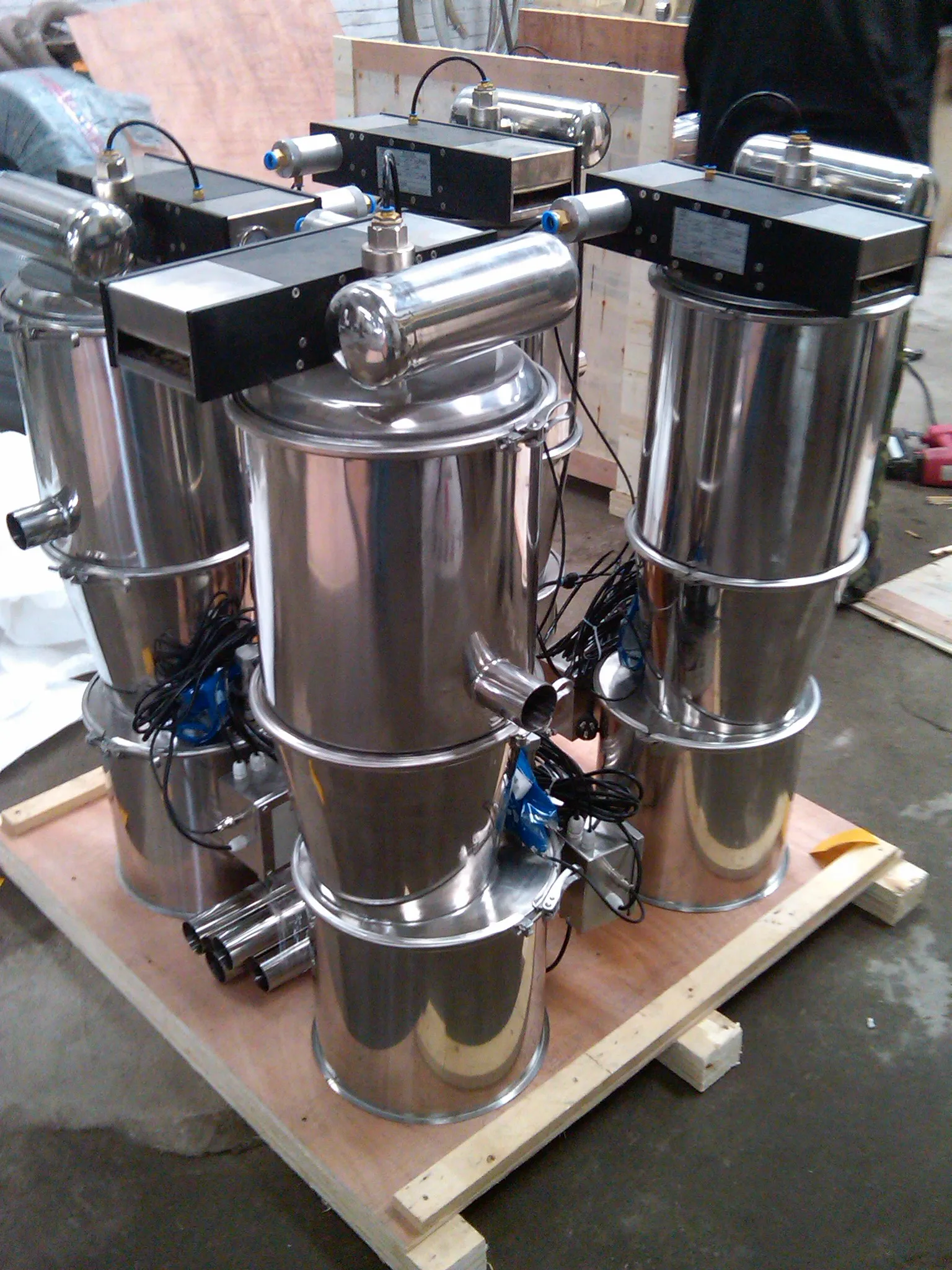

Packing & Delivery
+
+
Our company

Wuxi Rela Pharma Machine Co., Ltd, with more than 10 years experience, is focused on the powder solution, from the unit machine to the production line. Our main products are Pulverizer, Mixing machine, Conveying machine, Sifting machine, Granulator, Dryer... which are application to pharmaceutical, foodstuff, foodstuff, food additives, chemical raw material, baking ingredients...

+
+
