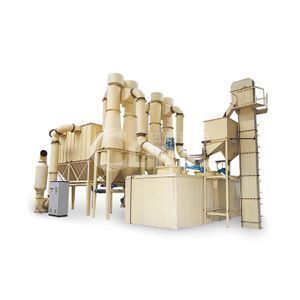

Quick Lime Powder Production Line Lime Grinding Mill Machine

Product details
weight:heavy;spare parts:more than 6 months;
Capacity(t/h):1-12 t/h;Place of Origin:Shanghai China;
Voltage:380V;max input size:10mm;
Certification:CE, ISO9001:2008;Weight:20t;
Power(W):165-380kw;origin:Shanghai;
fineness:325-2500 mesh;layer:3 to 4;
color:as required;Supply Ability:50 Set/Sets per Month;
Port:Shanghai;Control system:PLC;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;Packaging Detail:standard container;
Applicable Industries:Manufacturing Plant,Construction works ,Energy & Mining;Dimension(L*W*H):depends;
Key Selling Points:Energy saving;After-sales Service Provided:No after-sales service,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Condition:New;Brand Name:CLIRIK;
Warranty:1 YEAR;moh's hardness:less than 6;

Quick Lime Powder Production Line Lime Grinding Mill Machine







Quick Lime Powder Production Line Lime Grinding Mill Machineis the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.



Quick Lime Powder Production Line Lime Grinding Mill Machine Working Principle:



After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers. The high-pressure air blower constantly inhales air within the grinding mill and,  in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.







Quick Lime Powder Production Line Lime Grinding Mill Machine Features:





1. High Efficiency



Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.



2. Long lifecycle of spare parts



The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.



3. High safety and reliability



As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.



4. High fineness, flexible adjustment



The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.



5. Environment-friendly



The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.



6. Advanced intelligent speed control device



Convenient adjust, more uniform particle size.





Quick Lime Powder Production Line Lime Grinding Mill Machine Main Specifications:





 Main Specifications

Model

HGM80

HGM90

HGM100L

HGM125

Ring Diameter(mm)

800

900

1000

1300

Ring Number(layer)

3

3

4

4

Roller Number(piece)

21

27

36

44

Main Shaft Speed(r/p/m)

230-240

200-220

180-200

135-155

Input Size(mm)

 no more than 20

no more than  20

no more than 25

no more than 25

Finished Size(um, mesh)

5-47
(325-2500)

5-47
(325-2500)

5-47
(325-2500)

5-47
(325-2500)

Capacity(t/h)

0.5-4.5

0.6-6.5

1-8.5

1.5-12

Overall Dimension(L*W *H,m)

13.9*4*6.2

14.7*4.8*7.2

18*4.6*8.6

14*9*10.25

Motor Powder (Kw)

123-143

168.35

243.95

344.4



Quick Lime Powder Production Line Lime Grinding Mill Machine Flowing Chart
