Complete unit 110V 220V Single phase wind turbine generator 10KW 5KW 3KW with permanent magnet generator

Complete unit 110V 220V Single phase wind turbine generator 10KW 5KW 3KW  with permanent magnet generator  from QINGDAO ALLRUN NEW ENERGY CO., LTD

Main technical parameter as follows:

1. Machine Type: horizontal-axis wind turbine

 2. blade form: propeller

3. blade number: 3 pieces

4. balde material: glass fibre reinforced plastic

5. type of generator:permanent-magnet 3 phase AC

6. type of tower: guy wire or free standing

7.Power:       10KW

8.Blade diameter (m) : 8.0

9. Rated rotor speed (r/min) :200

10..Rated speed (m/s) :    10

11.Rated power: 10KW

12.Max power:   20KW

13.Output voltage (v): 380

14.Start up wind speed (m/s):3

15.Work speed (m/s):3-30

16.Security wind speed(m/s): 50

17.High of tower (m):       12

18.Top quality except tower: 600kg

19.Tower Steel tube model (mm):φ273

20.Capacity and quantity of battery: 12V200AH 28 pieces

21.Speed regulation: leaning tail + electric brake

22.Can supply power for: Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans, and Charge .

 wind   generator of our company just start in a light wind. And in the bad environment, it can work safely, regardless of a furious storm, no needing special caring. It is ideal power source of the scattered inhabitants of the mountain area islands, poor signal transfer station, prairie farm, and fishing vessels.10KW wind turbine can be set to meet a family color television VCD, satellite receiver, electric fans, washing machines,refrigeratory and electric lighting.And it can also power for the office, the small factory and so on.

  1. The wind wheel: using three blades, laminar flow airfoil, high lift-drag and excellent performance. The blades use glass fiber reinforced plastic leaf fiber, with a large damping, good dynamic feature, and good toughness. Wind wheel and generator with flexible connections run smoothly without vibration or noise.
  2. Generator: the overload strong bearing, long-lasting lubrication without maintenance. The rotor is made of permanent magnet (NdFeB), so it generates electricity when the rotating impeller drives generator rotor rotating. the wind is different from ordinary electric motor, which is the ultra-low-speed motor, 100 --- 400 per minute to switch that is able to meet the design power (depending on model), while such a low speed of the motor is unable to pronounce with ordinary electricity.
 3. Switch controller: it is connected generators, batteries, and electric-powered equipment, electrical installations. The system with different voltage sockets is user-friendly; rectifier that is issued by the three-phase AC generator changing into direct current.
 4. Inverter: wind generators are direct current through the battery output can only be used for the direct current electrical use, using AC appliances must be equipped with the DC into AC inverter, inverter can change from electrical power storing of battery to alternating current suitable for the standard of customers, and then provide utilization for electricity equipment.

Small wind power generator of our company just start in a light wind, and in the bad environment, it can work safely, regardless of a furious storm, no needing special caring. It is ideal power source of the scattered inhabitants of the mountain area islands, poor signal transfer station, prairie farm, and fishing vessels.5000w wind turbine can be set to meet a family color television VCD, satellite receiver,refritor, electric fans, washing machines ,water heater ,and electric lighting.And it can also power for the small station,small vellage.

  1. The wind wheel: using three blades, laminar flow airfoil, high lift-drag and excellent performance. The blades use glass fiber reinforced plastic leaf fiber, with a large damping, good dynamic feature, and good toughness. Wind wheel and generator with flexible connections run smoothly without vibration or noise.
  2. Generator: the overload strong bearing, long-lasting lubrication without maintenance. The rotor is made of permanent magnet (NdFeB), so it generates electricity when the rotating impeller drives generator rotor rotating. the wind is different from ordinary electric motor, which is the ultra-low-speed motor, 100 --- 400 per minute to switch that is able to meet the design power (depending on model), while such a low speed of the motor is unable to pronounce with ordinary electricity.
 3. Switch controller: it is connected generators, batteries, and electric-powered equipment, electrical installations. The system with different voltage sockets is user-friendly; rectifier that is issued by the three-phase AC generator changing into direct current.
 4. Inverter: wind generators are direct current through the battery output can only be used for the direct current electrical use, using AC appliances must be equipped with the DC into AC inverter, inverter can change from electrical power storing of battery to alternating current suitable for the standard of customers, and then provide utilization for electricity equipment.

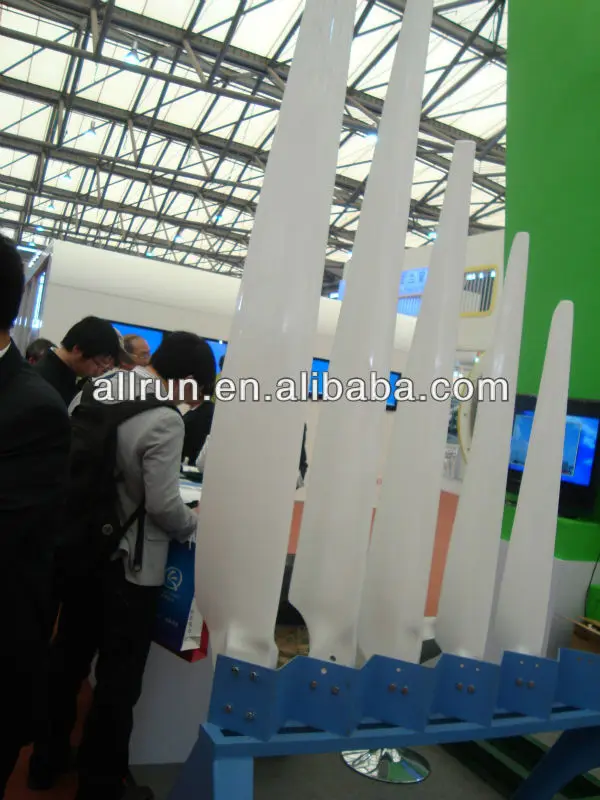

BLADES for  10KW 5kw wind turbine generator

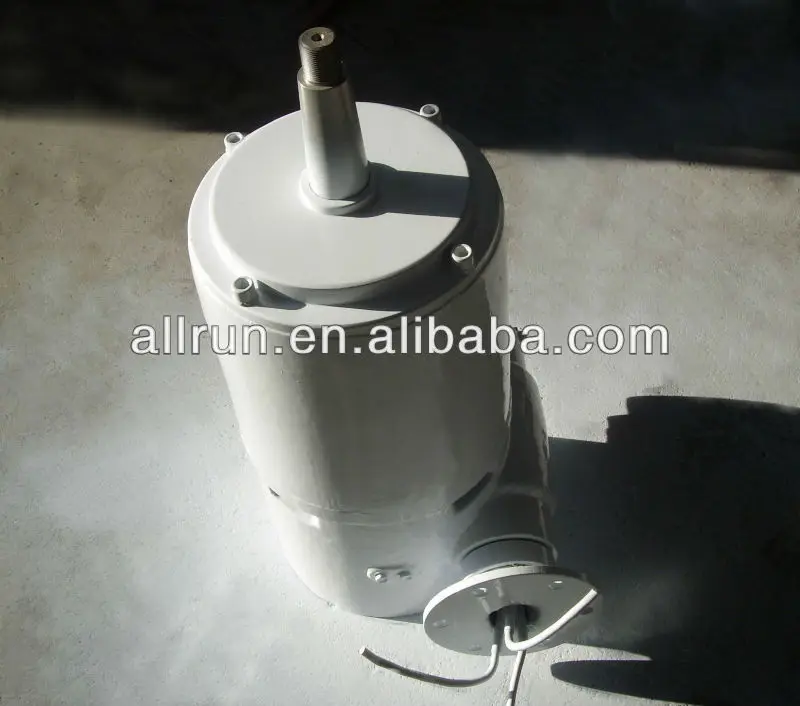

GENERATOR for  10KW 5kw wind turbine generator

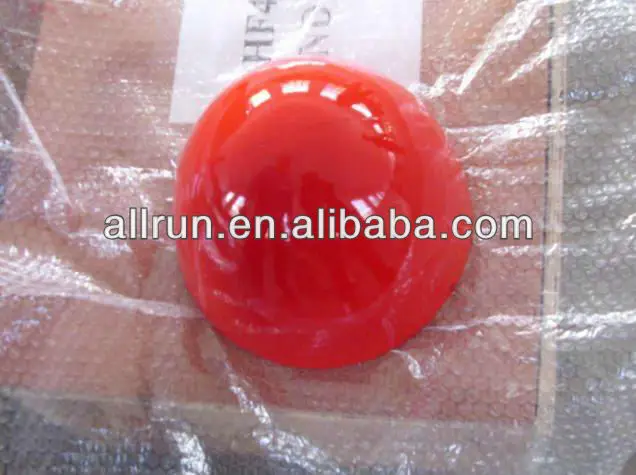

 DOME for 10KW 5kw wind turbine generator

TOWER for  10KW 5kw wind turbine generator

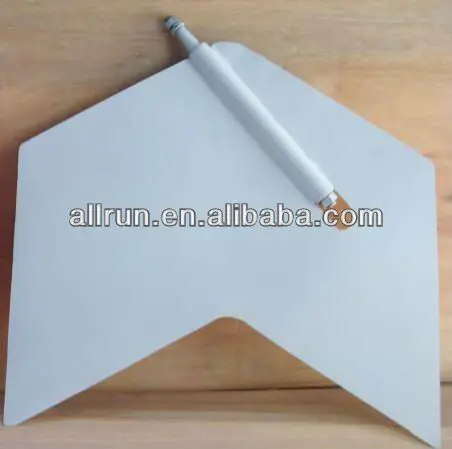

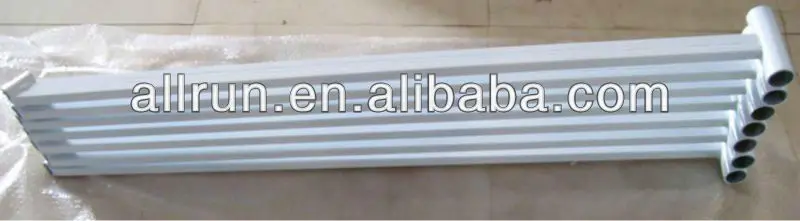

Tail Vane Board & Tail Vane Booms for 5kw wind turbine generator

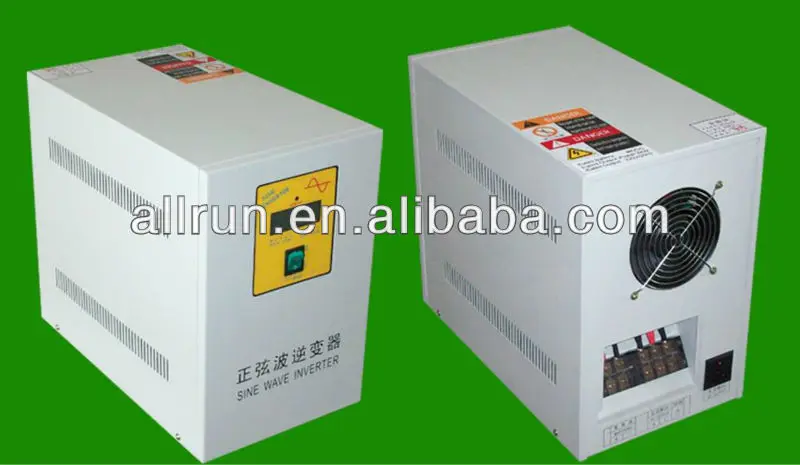

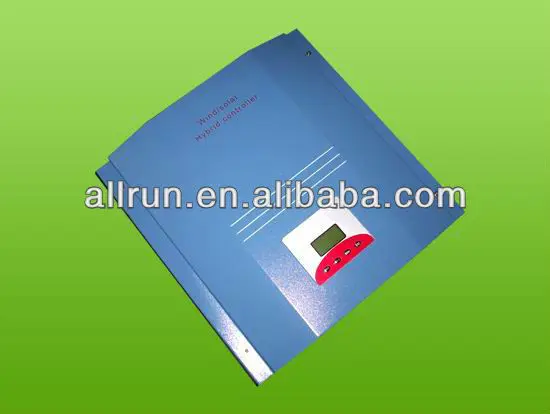

INVERTER AND CONTROLER For  10KW 5kw wind turbine generator

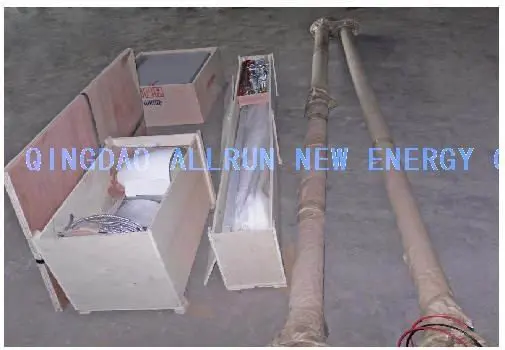

WELL PACKAGE BY POLY WOOD BOX for  10KW 5kw wind turbine generator

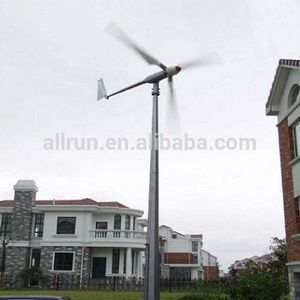

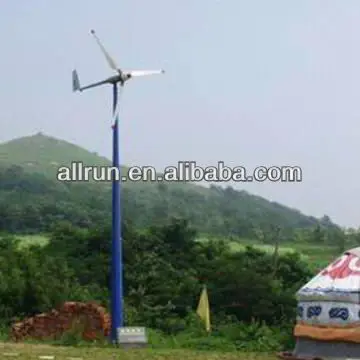

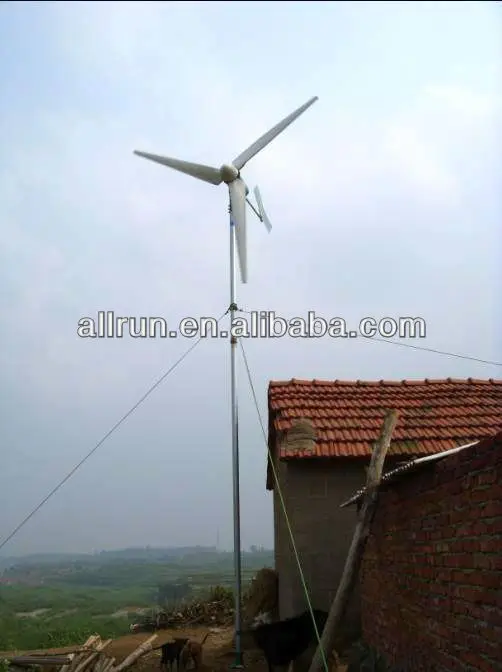

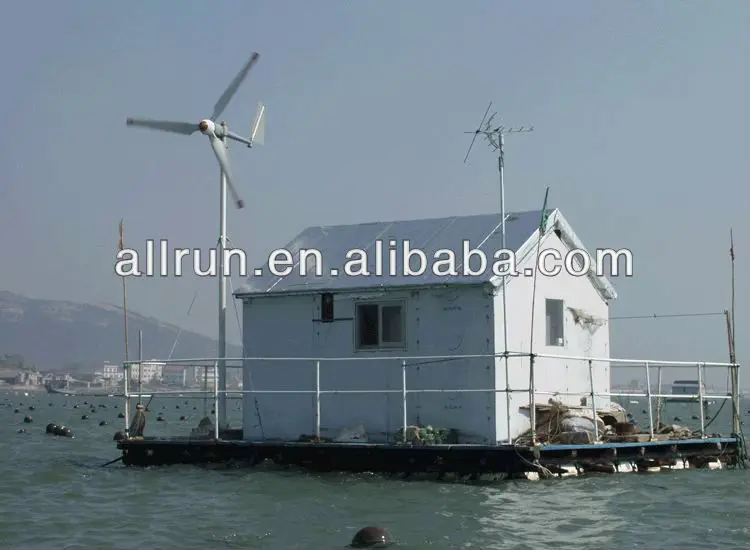

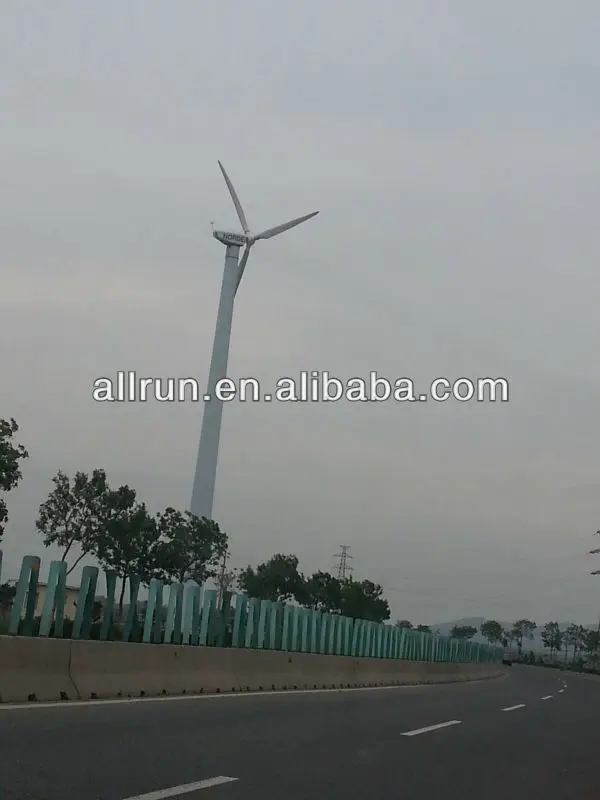

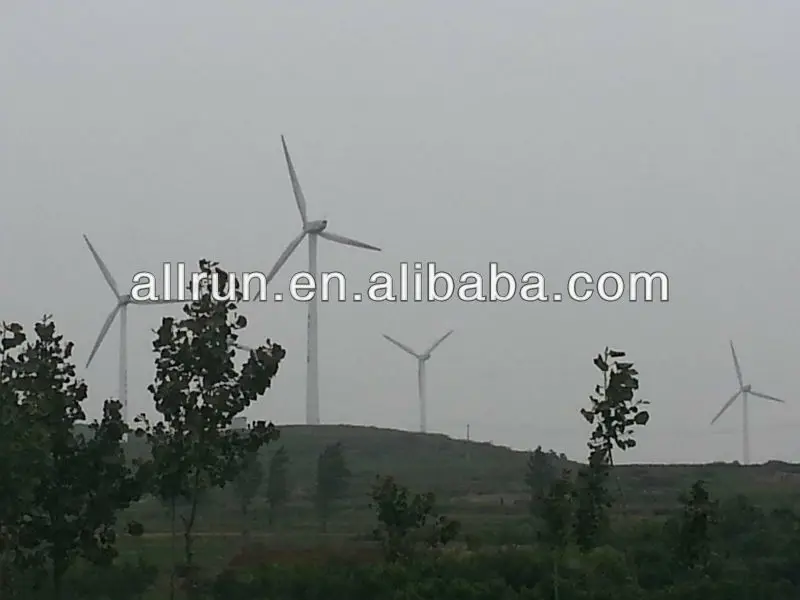

  YOU CAN USE FOR DIFFERENT SITUATION, FOR HOME, FOR VALIAGE , FOR OFFI CE, FOR PLANT, FOR BOAT, AND SO ON, PLEASE FIND THE FOLLOWING SITUATION  FOR YOUR REFERENCE .

    Our company Qingdao Allrun New Energy co., ltd, is specialized in producing wind products and solar products, such as wind power system, solar panel , and other solar products. And welcome you to visit our website: www.qdallrun.cn to know more about our company and the products! We have about ten years in this area ,not only can products our own brand products, but also can design the system to the requirement from our clients. We have a 10 personed r&d team to do the development to meet the requirement from the market. Customers from Europe, America, Australia, Canada, New Zealand, South Africa and Asia. have already established reliable cooperation ship with us, and appreciated for our good service, fast delivery, honest communications, good quality and combative price. This is also the reason we can stand here so many years. And also hope you can cooperate with us in long term because of our advantage. Thanks!

Please feel free to contact me if there is any further question about it.

  1. What size do you produce ?

Allrun can produce  from 150W to 100KW wind turbine,  can supply parts  or whole unit

2.which style do you produce ?

Allrun can produce both on grid and off grid, horizon style and vertical style. we can adjust to what you need

3. what the warranty ?

 Allrun can offer 20 years warranty

4.what about the delivery ?

Allrun can delivery goods in 7days after payment , and also we can help you ship all over the world, you know we hae our own shipping forwader .
