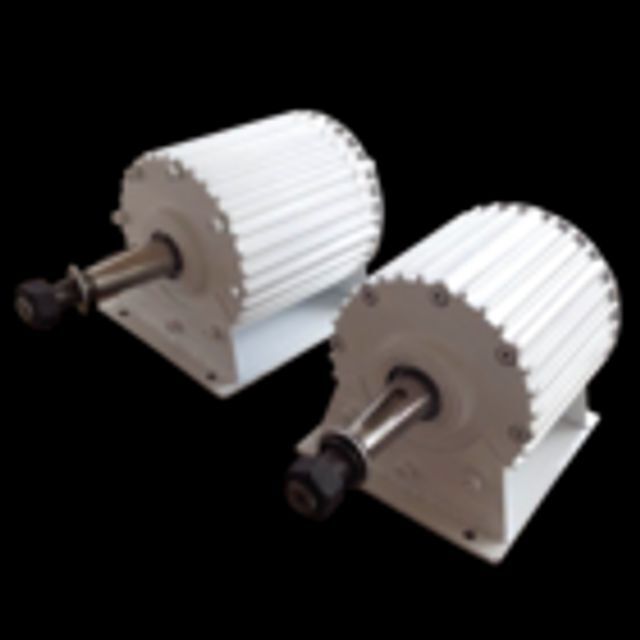

Low RPM wind turbine hydro use 5kw 10kw 15kw three phase permanent magnet generator PMG also called 3 phase generator

Supplier: Qingdao Allrun New Energy Co., Ltd.
Region: Shandong, China
Contact: Ms li yan
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	ECPORTING POLYWOOD CASE FOR 3 phase generator;	Payment Terms:	L/C,Western Union,D/P,T/T;
OEM ODM Service:	YES;	Certification:	CE TUV;
Place of Origin:	Shandong, China;	Rated power:	15kw;
Brand Name:	ALLRUN;	Port:	QINGDAO;
Factory Direct Sale:	YES;	product name:	3 phase generator;
Warranty:	20YEARS;	Shell Material:	Carbon Steel;
Rated Torque( N*M)::	842.6 Nm;	Model Number:	ARPMG -15KW;
Supply Ability:	50000 Sets per Month Fast delivery time for 3 phase generator;	Rated rotated speed(r/m):	100 170 150 200rpm TO 5000RPM;
Top net weight(kg):	150KGS;

Model	ARPMG
Rated Power(w)	15kw
Max Power(w)	20kw
Rated Voltage(v)	220V/380V/420V( can adjust for your requirement)
Rated rotated speed(r/m)	220 RPM ( can adjust to customersize )
Top net weight(kg)	250kg(Upon the RPM and power)
Output Current	AC
*Rated Torque(NM)**	651 Nm(Upon RPM)
Generator	3 phase permanent magnet synchronous generator
Insulation Class	F
Service Life	More Than 25 years
Bearing	HRB or SKF for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃

A: Grid TIE System

B: Off Grid System

Allrun Company can provide customized generators according to customers' requirements for voltage, speed, power, frequency, etc.

RATED POWER	RATED SPEED	RATED VOLTAGE	FREQUENCY
0.2KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
0.3KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
4MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

1.Generator type

Pemanent Magnet Synchronous Direct drive 3Phase AC

2.Customizable

a.Customized Voltage,Speed,Power,Frequency.

b.Customized shaft size,Spline shaft,biaxial extension,flange can be used.

3.Varity structures designCan be customized vertical axis, horizontal axis, internal rotor, external rotor, plate type. Therefore, as long as we know your requirements, we can provide you with suitable products.

4.Features1

a.Gearless, direct drive, low RPM generator. b.Low start up speed due to low cogging and resistive torque design. c.High standard, quality components for use in harsh and extreme environments for wind turbines.

5.Features2

d.Generator is designed using speciallted material and treated to resist corrosion and oxidation.

e.Designed for reliable and long operational lifetime under long-term full output.

f.Patent protected design.

We,one subsidiary company of Qingdao ALLRUN Group,are one of the high-tech enterprises specialized in solar panel,solar power projects and Permanent magnet generator (PMG).

We have have our own solar panel factory( and solar appliance products),wind products factory( include PMG),so we can well control the quality of the products.And we have our own 25-personed QC dept.And we also have 10 specialists in designing and installing solar street lights,solar power stations( solar system),and kinds of solar water pump ,solar water heaters in different sizes and models,as well as solar appliances, wind turbines systems and wind appliances.We have been honored for the excellent work,such as the Project of the municipal administration,the road administration project, the development of residential project and island project,and the supply of the heater and power voltage station.

At present,our main products include solar system products,such as various types of solar panel and solar system , solar photovoltaic applications, permanent magnet generators and wind generation sets.

If you are interested in our products,please do not hesitate to contact us with more information.We are looking forward to cooperating with you!

Q1:How can we use the PMG? A:ALLRUN supply variety of permaent magent generators which is suitable for driven by following equipment to: a.Driven by Wind Power --------Wind turbine b.Driven by Water Power ------- Hydro generator c.Driven by Belt with Motors d.Driven by Motor e.Dirven by perpetual motion machine f.Dirven by test plant g.Dirven by yourselves creation h.Driven the permanent magnet generator and make it rotate then it can generate power Q2.Which size can you supply? A:We supply from 100w to 1000kw PMG. Q3. Are your PMG three phase? A:Yes, our PMG is three phase. Q4.what the RPM of your PMG? A:We can produce different RPM for the same design, just to what you require. Q5.can we get in different colour? A:Yes,right,we can adjust to what you need,such as white colour,black colour and so on.
