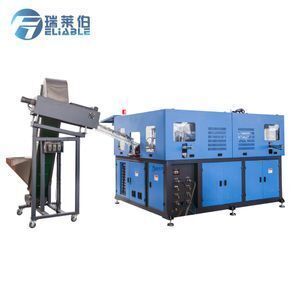

Automatic PET Bottle Blowing / Plastic Stretch Blow Molding / Bottle Making Machine

Supplier: Zhangjiagang Reliable Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Admin Reliable Machine
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	4600KG;	Brand Name:	Reliable;
Factory location:	3 in 1 filling machine;	Certification:	CE ISO SGS;
Model Number:	RM-6000;	Voltage:	380V/3PH/50HZ;
Customized:	Acceptable;	Bottle size:	220ml-2000ml;
Power(W):	68KW;	Port:	Shanghai Port;
Application:	Bottle;	Operation:	Easy&stable;
Place of Origin:	Jiangsu China (Mainland);	Automatic:	Yes;
After-sales Service Provided:	Engineers available to service machinery overseas;	Key words:	blow molding machine;
Product name:	Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine;	Packaging Detail:	The normal packages is wooden box. If export to Europ Country,the wooden box will be after fumigated. If enter container the packages is too tighter,we may use PE film to wrapping the machine. or according customer special request. for Automatic PET Bottle Blowing / Plastic Stretch Blow Molding / Bottle Making Machine;
Plastic Processed:	PET;	Condition:	New;
Dimension(LWH):	280819581920mm;	Raw material:	PET Preforms;
Blow Moulding Type:	Stretch Blow Moulding;	Delivery Detail:	Shipped in 30 days after payment;
Quality:	HIgh&Guarantee;	Supply Ability:	35 Set/Sets per Month for Automatic PET Bottle Blowing / Plastic Stretch Blow Molding;

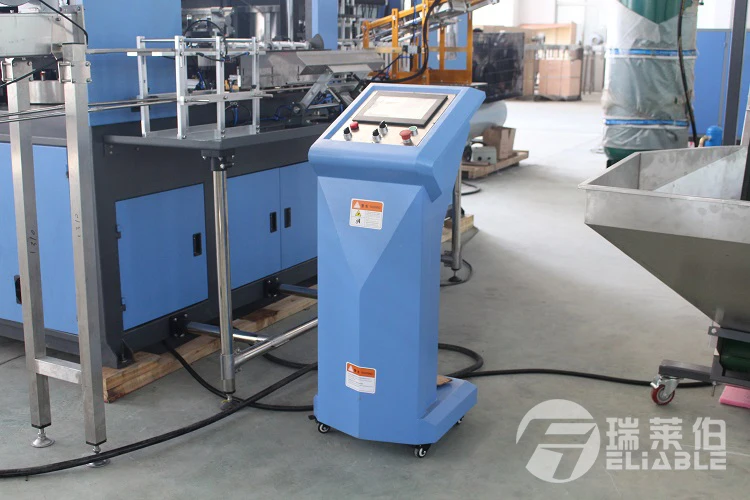

Warranty:	2 Years;	Control:	PLC+touch Screen;
Capacity:	6000BPH;	Payment Terms:	L/C,T/T,Western Union;

Automatic PET Bottle Blowing / Plastic Stretch Blow Moulding / Bottle Making Machine

Great Overall performance	Smart Start System	Easy to Maintain
Designed by our senior engineers who has rich experience in bottle oil areas, this machine has many newest technologies based on our advanced control system.	With the efforts of our engineers, now we can start our machine easily Which means you will have no trouble to use when you get it.	Don’t worry about machine maintain, we have optimize its structure, so now it is easy to maintain! Professional after sales service will be offered in its lifelong years!

Product Description

Production Overview

Automatic PET Bottle Blowing / Plastic Stretch Blow Moulding / Bottle Making Machine RM-6000 blow moulding machine is suitable for producing PET plastic containers and bottles in all shapes. The blow moulding machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Advantages

High safety. high speed with high efficiency.
Manual saving, one man is enough for operation the machine.
Stable performing with easy maintaining.
Imported PLC controlling and man-machine interface computer
Japan Omron inspection sensor
Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
Power saving design that can increase your profits
Segregate type air controlling system, which is designed for avoiding waste pollution

Specifications

Type	RM-6000
output	according to bottle shape	Max. 6000PCS/H
product specification	bottle body diameter	20mm-100mm
	bottle height	50mm-350mm
	bottle mouth diameter	15mm-38mm
mold	cavity	6cavities
	mold thickness	200mm
	mold effective area	800*800mm
Main power	power ,voltage	380v 3Phase /220v 3Phase 50/60HZ
Main power	Install machine power/actural use power	68kw/15kw
air source	low pressure air compressor	2.0m3/min 1.0MPa
	high pressure air compressor	3.6m3/min 3.0MPa
	cold-dry machine	2.0m3/min 3.0MPa 1set
cooling water	cooling quantity	15L/min
main machine size	LWH	280819581920mm/4600kg
feeder size	LWH	20009502480mm/250kg

Flow Chart

Machines Show

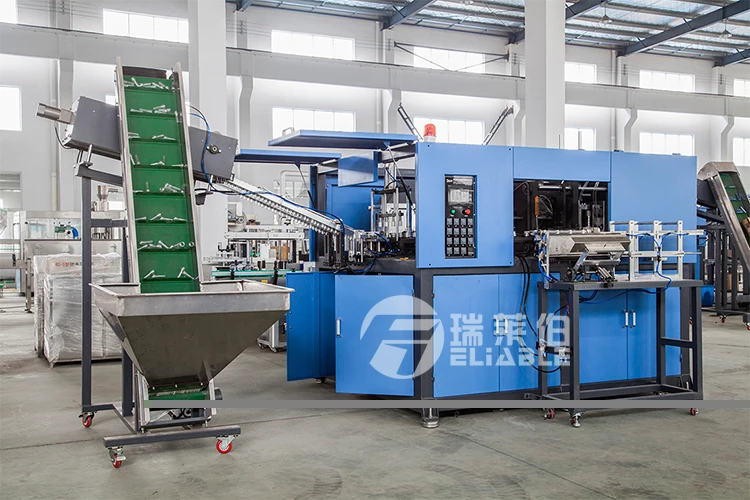

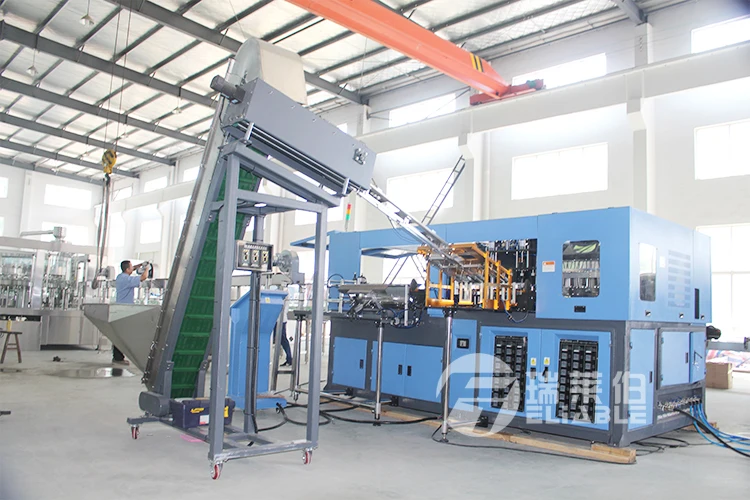

Overview

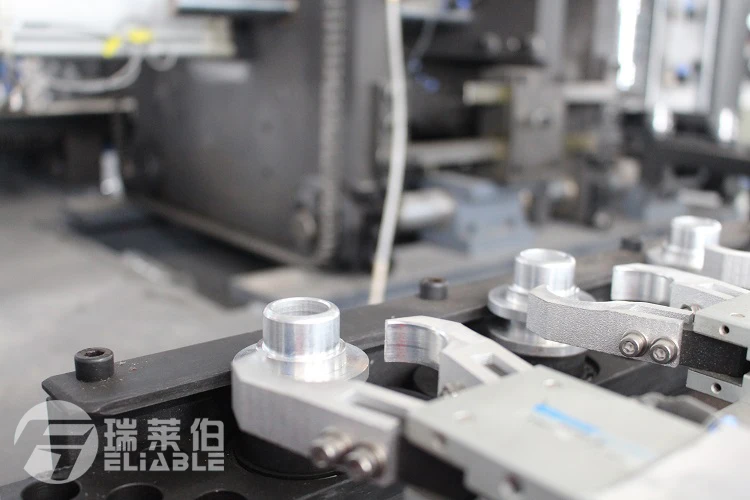

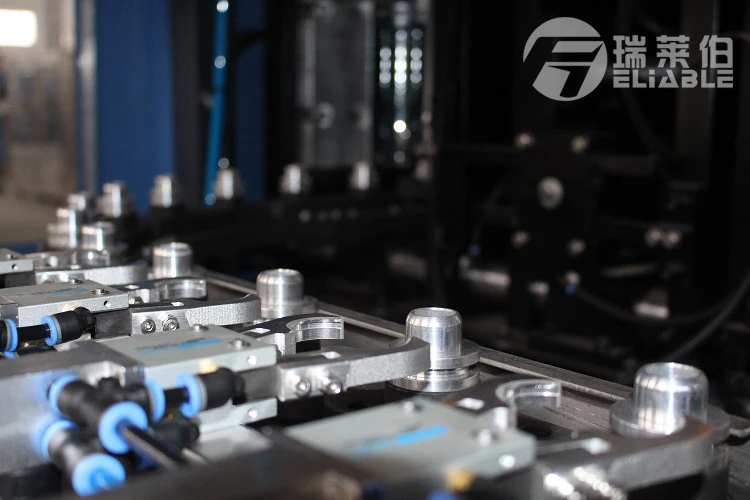

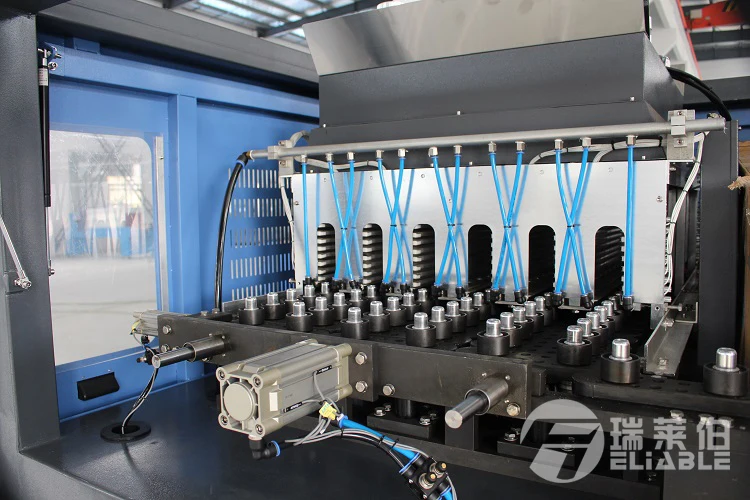

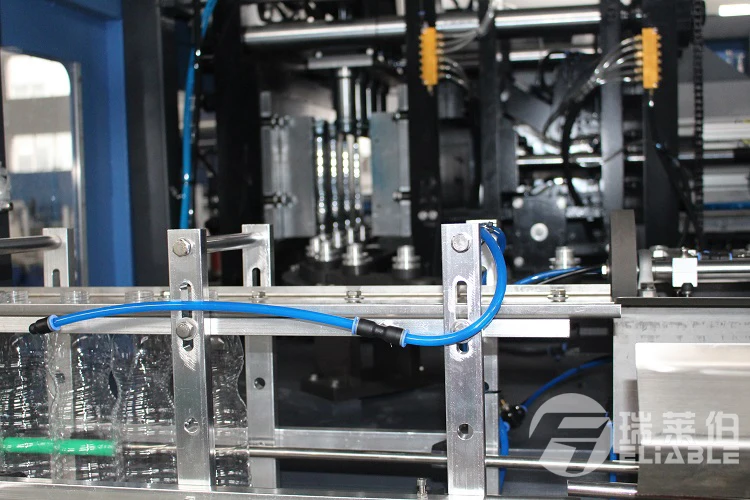

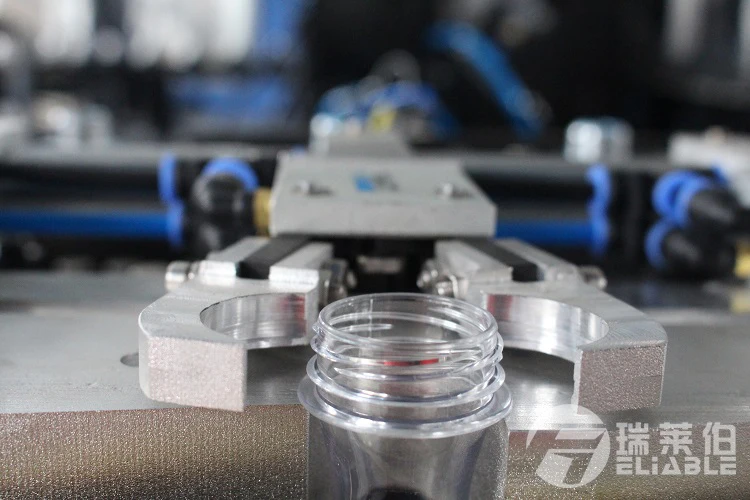

Inside Detailes

Our Services

What Service Can Reliable Offer You?

1. Installation, debug

After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

2. Training

Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee

We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

4. After sales

(1)After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can’t solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

(2)After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can’t solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
