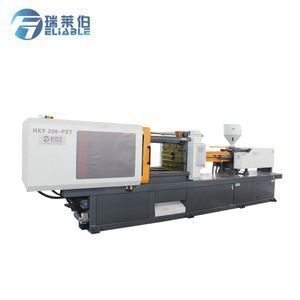

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap
-
Supplier: Zhangjiagang Reliable Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Admin Reliable Machine -
Price: $11650.00 /set -
Min. Order: 1 set
| Certification: | ISO CE SGS; | Overall size: | 6.7m*1.75m*2.25m; |
| Product name: | Plastic Injection Molding Machine; | Voltage: | 220 ~ 480V; |
| Style: | Horizontal; | Factory location: | 1.5 hour away from SHANGHAI airport; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,For Injection Molding Machine; |
| Delivery Detail: | About 30~45 Days For Injection Molding Machine; | Automatic: | Yes; |
| Injection Weight: | 772~1050g; | Packaging Detail: | PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap The normal packages is wooden box. If export to Europ Country,the wooden box will be after fumigated. If enter container the packages is too tighter,we may use PE film to wrapping the machine. or according customer special request.; |
| Injection Rate: | 35.2~51.8g/s; | Clamping Force: | 3000KN; |
| Supply Ability: | 5 Set/Sets per Month For Injection Molding Machine; | Heating Zone: | 5 pcs; |
| Plastic Type: | Thermoplastic; | Opening Stroke: | 590mm; |
| Suitbale Material: | PP PE PS PET HDPE etc.; | Type: | Preform Injection; |
| Port: | SHANGHAI PORT For Injection Molding Machine; | Used for: | Bottle preform , Bottle cap , Plastic Bowl; |
| Brand Name: | RELIABLE Injection Molding Machine; | Model Number: | RMZ-3000A Injection Molding Machine; |
| Condition: | New; | Power(W): | 52.0KW; |
| Min-Max: | 220~630mm; | Feature: | Energy Saving; |
| Place of Origin: | Jiangsu China (Mainland); | Net weight: | 11 tons; |

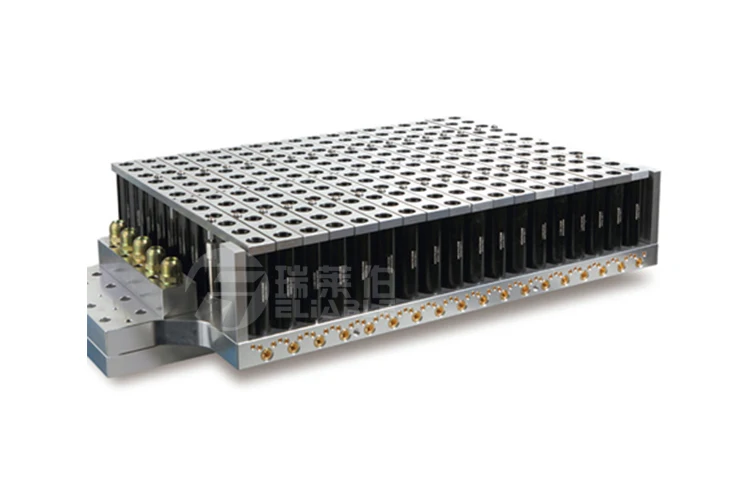

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap

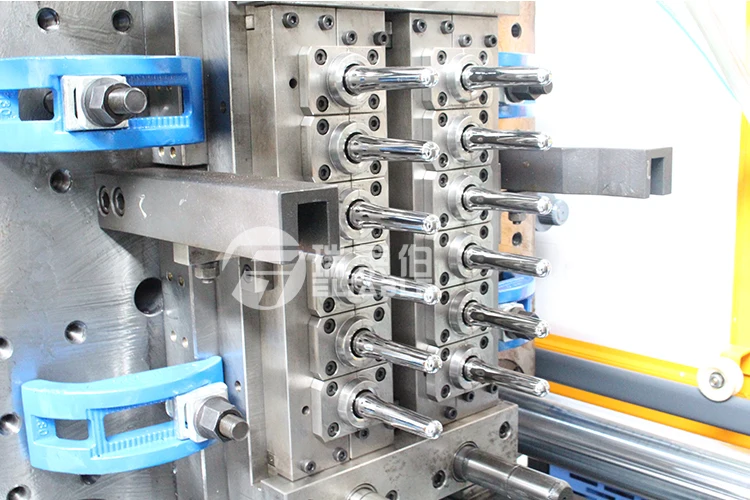

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap
* Screw of big length to diameter ratio, uniform plastication and high plasticizing capability
* Multi Step adjustment of injection speed or pressure
* Back pressure control of molten plastic
* Double toggle mold closing system with a large force magnification ratio and a large stroke ratio
* Very good speed characteristic of high speed mold closing and low pressure mold protection
* Various kinds of hydraulic ejectors
* Double proportional, load sensitive hydraulic circuit
* For big sizes of machines there are several oil pumps in a group, use proportional valve to compensate the difference of pressure or flow between pumps
* Triple interlock of mechanic, electric and hydraulic devices
* Hydraulic knockout core device and rotary mold-parting the work piece device
* Using the computer, electric and hydraulic elements of famous brands in the world

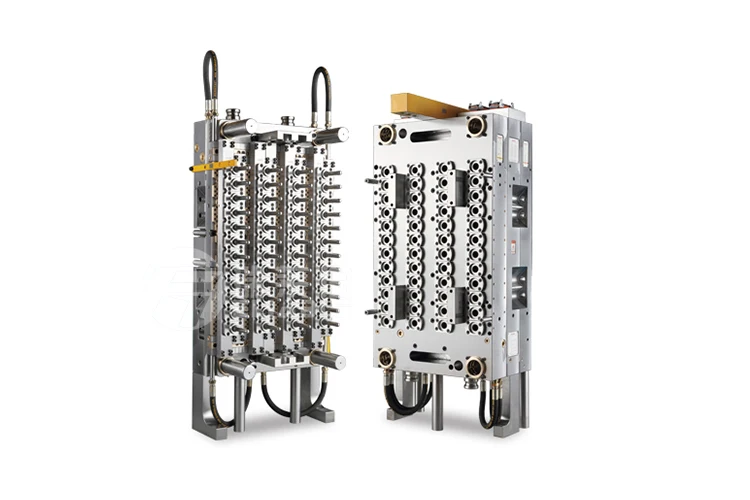

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap
A Injection Unit

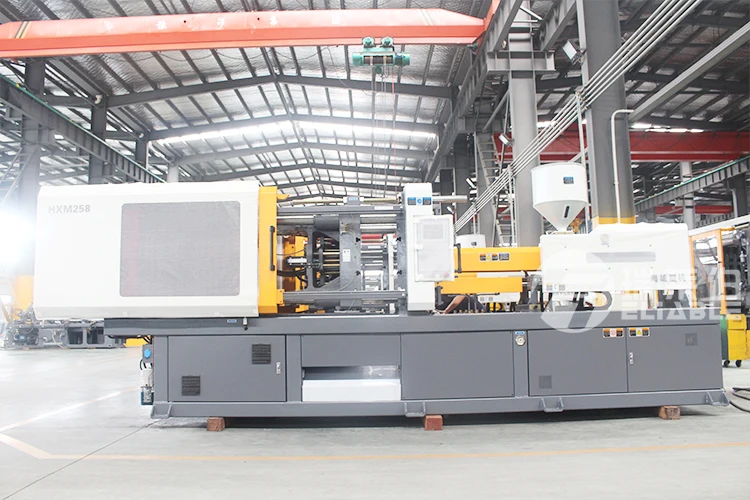

PET Preform Mould / Pastic Injection Molding Machine for Bottle , Cap
•A07) Oil temperature indication
•A08) Adjustable such back before and after refilling
•A09) Auto sprue break
•A10) Linear transducer to control programmable injection position
•A11) Cold start screw prevention
•A12) Sliding Mechanism for hopper
•A13) Gas Nitrated hardened screw and Barrel
•A14) Screw back pressure con troll with pressure relief valve
•A15) Hand Operated Lubrication Unit

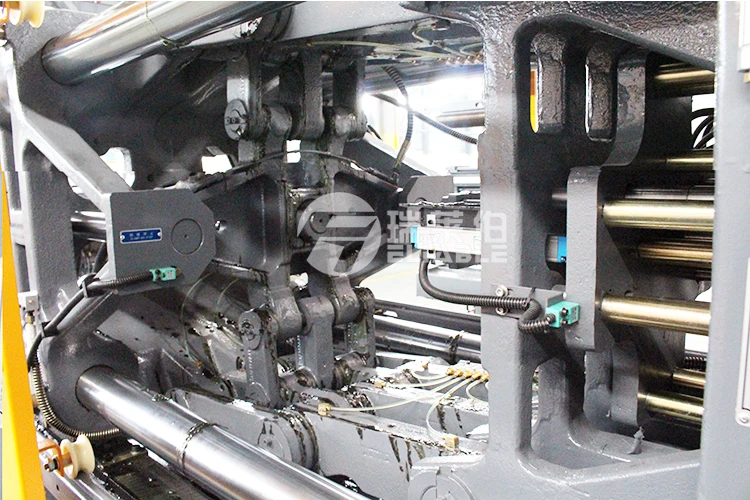

B. Clamping Unit

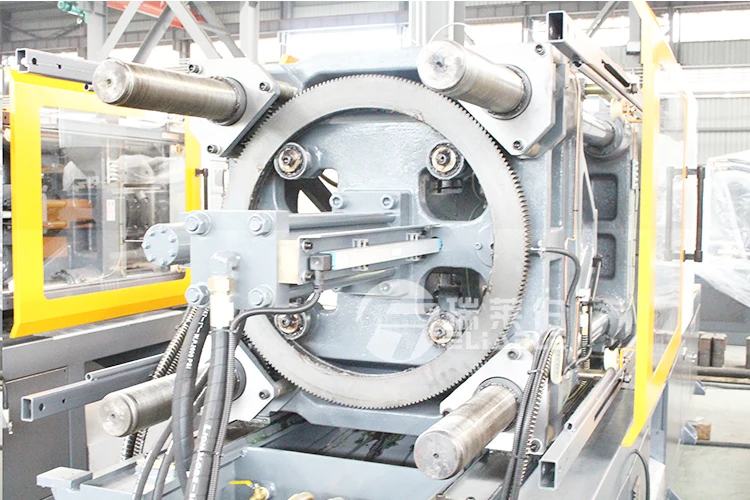

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap
•B01) Five Point twin toggle locking system
•B02) Case Hardened toggle, Brackets and links with hardened
PIN & BUSH
•B03) Motorized mould height adjustment for quick mould change
•B04) Auto tonnage setting facility
•B05) Low pressure precise mould protection with pressure and time
setting
•B06) Five stage Mould closing
•B07) Five stage Mould opening
•B08) Hydraulic cushioning for consistent mould opening position
•B09) Linear transducer to control programmable clamp system
•B10) Electrical and hydraulic (Dump value) interlock safety gate
•B11) Moving platen with mechanical support with Teflon
•B12) Hydraulic Ejector with Multi stroke
•B13) Auto lubrication unit
C. Ejector

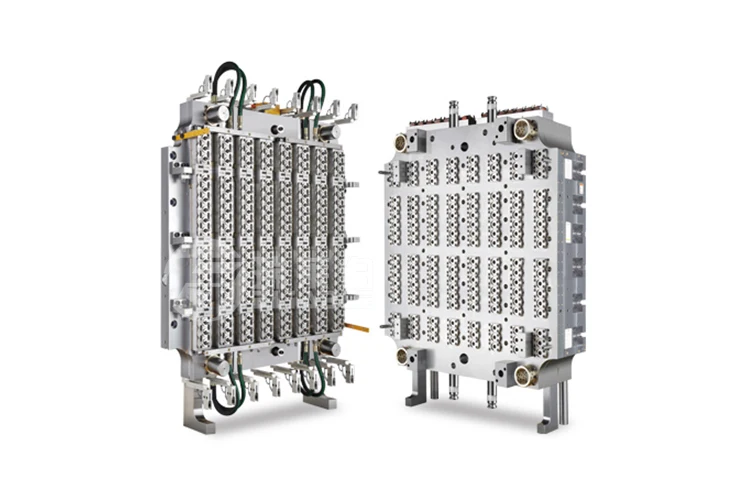

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap
•C01) Linear transducer to control programmable ejector position
•C02) Multiple stroke ejection
•C03) Ejector forward/ backward speed adjustable
•C04) Ejector forward/ backward pressure adjustable
•C05) Two stage in ejector forward/ backward operation
•C06) Additional safety of sensing ejector backward position with proximity switch
D. Hydraulic

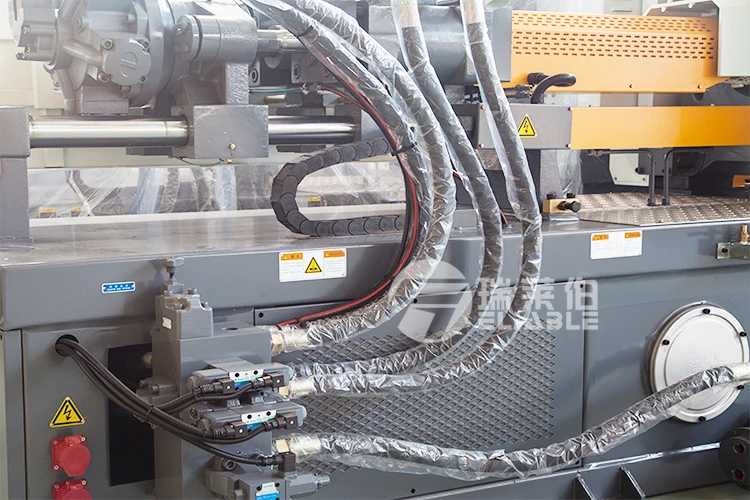

PET Preform Mould / Plastic Injection Molding Machine for Bottle , Cap
•D01) Compact and Simple design
•D02) Sealing ring imported from Japan, a total four leak-proof protection to
prevent the oil leakage.
•D03) Proportional value for pressure and speed
•D04) Variable displacement pump system attached with pulse absorber
•D05) High magnetic closed-loop oil filter to effectively remove debris of the
oil, the filtration is up to 10um.
•D06) Easy access to hydraulic elements for ease maintenance
E. Controller
•E01) Display type LCD QVGA B/W of 5.7 “with 100 membrane keys
•E02) Multi-CPU control, with 32 bit
•E03) Precise temperature control, the precision is of ±1 degree
•E04) Four forms of switch at the end of injection, they are time,
location, pressure, and speed.
•E05) Breaker and air switch are imported from Japan, the brand of
Micro switch is Omron
•E06) Instruction cycle time of controller in 0.4 microseconds
RMZ-3000A Plastic Injection Molding Machine for Bottle , Cap
Item | Unit | Data | ||
Max. clamping force | KN | 3000 | ||
Max. opening force | mm | 590 | ||
(V×H)Space between tie bars | mm | 610×610 | ||
(min-max)Mould height | mm | 220-630 | ||
Max. daylight | mm | 1220 | ||
Ejector force | KN | 70.6 | ||
Ejector stroke | mm | 150 | ||
Ejector quantity |
| 9 | ||
Screw diameter | mm | 60 | 65 | 70 |
Screw L/D ratio | L/D | 22.7 | 21 | 19.5 |
Theoretical shot volume | cm3 | 848 | 995 | 1154 |
Plasticising weight(PS) | g | 772 | 905 | 1050 |
Injection pressure | Mpa | 207 | 176 | 152 |
Theoretical injection rate(PS) | g | 241 | 283 | 328 |
Plasticising capacity(PS) | g/s | 35.2 | 43.3 | 51.8 |
Screw torque | N.m | 2530 | ||
Max. screw rotate speed | r/min | 150 | ||
Injection stroke | mm | 300 | ||
Pump motor power | KW | 30 | ||
Pump pressure | Mpa | 16 | ||
Heating power | KW | 22 | ||
Heating zone |
| 5 | ||
Size | m | 6.7×1.75×2.25 | ||
Net weight | t | 11 | ||
International designation |
| 3000-1750 | ||
The sample service
1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.
-
