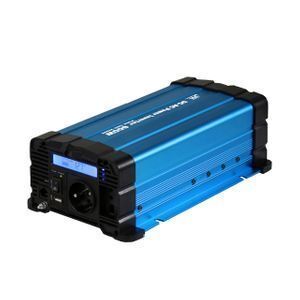

12/24V DC or 220/230/240V AC Output Voltage and 50Hz/60Hz Output frequency pure sine inverter solar 600 watt

Supplier: Jiaxing Solarway New Energy Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lucy Liu
Price: $52.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	5000 Piece/Pieces per Month;	OEM:	Accept OEM;
Protection Function:	Bat.low alarm, Bat.low shutdown, over voltage, polarity revers;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Place of Origin:	Zhejiang China;	Model Number:	FS600D;
Package:	Paper Skin Carton;	Display:	LCD;
Package Preview:	;	Color:	Blue;
Brand Name:	Solarvertech;	Wave form:	Pure Sine Wave;
Packaging Detail:	6 pieces in one carton paper carton/ plastic pallet, as your request;	USB:	5V 2.1A;
Frequency:	50/60 HZ;	Surge power:	Rated Power*2;
Output Frequency:	50/60HZ;	Port:	SHANGHAI/NINGBO;

12/24V DC or 220/230/240V AC Output Voltage and 50Hz/60Hz Output frequency pure sine inverter solar 600 watt

Company Information

Solarway is a professional off-grid power inverter supplier, is a sino-german joint venture, mainly engaged in off-grid power inverter/MPPT and PWM controller, research and development, manufacturing and sales, we can provide customers with off-grid power INVERTER OEM and ODM. The factory is located in Jiaxing, Zhejiang Province, China. We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany.

Technical Parameters

MODEL		FS600D-112	FS600D-124	FS600D-148	FS600D-212	FS600D-224	FS600D-248
Output	AC Voltage	100/110/120VAC			220/230/240VAC
	Rated Power	600W
	Surge Power	Load 120~150%;1200W(3ms.;resistive)
	Waveform	Pure Sine Wave(THD<3%)
	USB port	5V 2.1A	5V 2.1A	------	5V 2.1A	5V 2.1A	------
	Frequency	50/60Hz±0.05%
	AC Regulation	±5%			±10%
	Power Factor Allowed	COSθ-90º~COSθ+90º
	Standard Receptacles	USA/British/Franch/Schuko/UK/Australia/Universal etc.optional
	LED Indicator	Green for power on, red for faulty status
	LCD display	voltage, power, protection status(optional)
	Remote control function	default
	Remote controller	CR80/CR80 optional
Input	No Load Current Draw	≤0.60A	≤0.60A	≤0.60A	≤0.60A	≤0.60A	≤0.60A
	DC Voltage	12VDC	24VDC	48VDC	12VDC	24VDC	48VDC
	Voltage Range	10.5~15VDC	21~30VDC	42~60VDC	10.5~15VDC	21~30VDC	42~60VDC
	Efficiency(Typ.)	89%~93%
	Fuse	40A×4	20A×4	10A×4	40A×4	20A×4	10A×4
	Remote Control	Function(optional)
Protection	BAT.Low Alarm	10.5±0.5VDC	21±1.0VDC	42±2.0VDC	10.5±0.5VDC	21±1.0VDC	42±2.0VDC
	BAT.LOW Shutdown	10±0.5VDC	20±1.0VDC	40±2.0VDC	10±0.5VDC	20±1.0VDC	40±2.0VDC
	Over Load	Shut down output voltage, restart to recover
	Over Voltage	15.5±0.5VDC	31±1.0VDC	62±2.0VDC	15.5±0.5VDC	31±1.0VDC	62±2.0VDC
	Over Temperature	Shut down output voltage, recover automatically after temperature goes down
	Output Short	Shut down output voltage, restart to recover
	DC Input Reverse Polarity	By fuse
	Earth Fault	Shut off o/p when the load has electrical leakage
	Soft Start	Yes,3~5 Seconds
Environment	Working Temp.	0~+50℃
	Working Humidity	20~90%RH non-condending
	Storage Temp.&Humidity	-30~+70℃,10~95%RH
Safety&EMC	Safty Standards	Certified UL 458(only for"GFCI"receptacles)			Certified EN 60950-1; 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013.
	Isolation Resistance	I/P-O/P:100M Ohms/500VDC
	EMI Conduction&Radiation	Certified FCC class A			Certified EN 62040-2:2006,EN61000-3-2; EN61000-3-3;
	EMS Immunity	------			Certified IEC61000-4-3, IEC61000-4-6
	E-MARK	------			Certified ECE RIO.05:2014

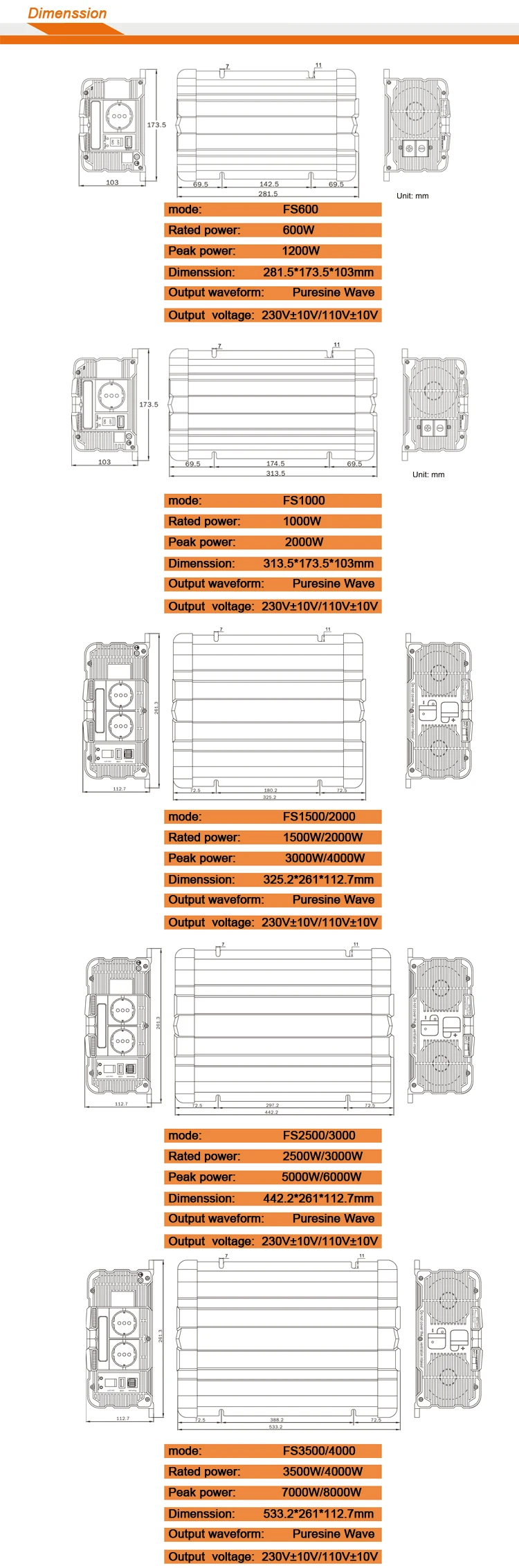

Others	Dimension(L×W×H)	281.5173.6103.1mm

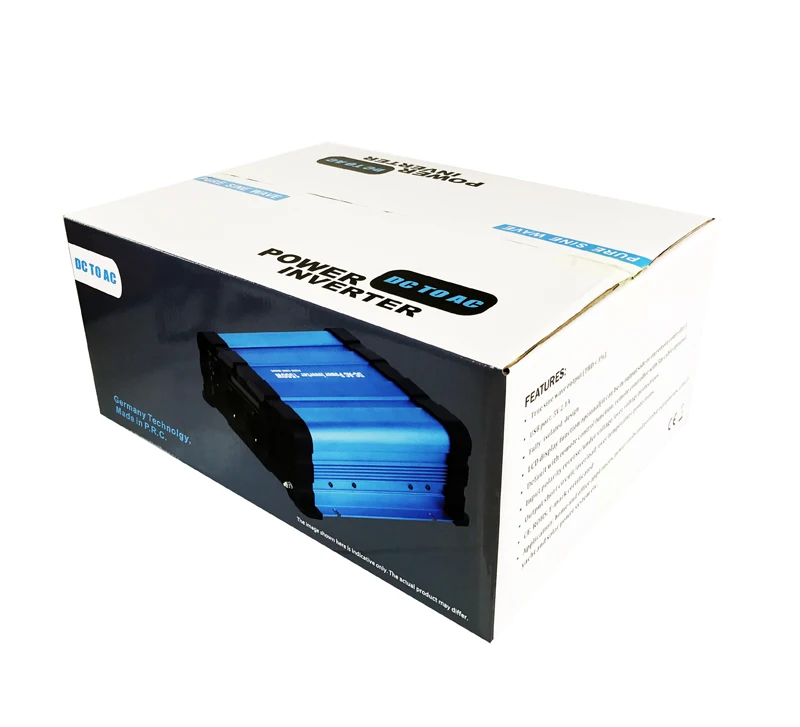

	Packing	2.1kg;6pcs/13.2kg/0.054m³
	Cooling	Load control fan or by thermal control fan

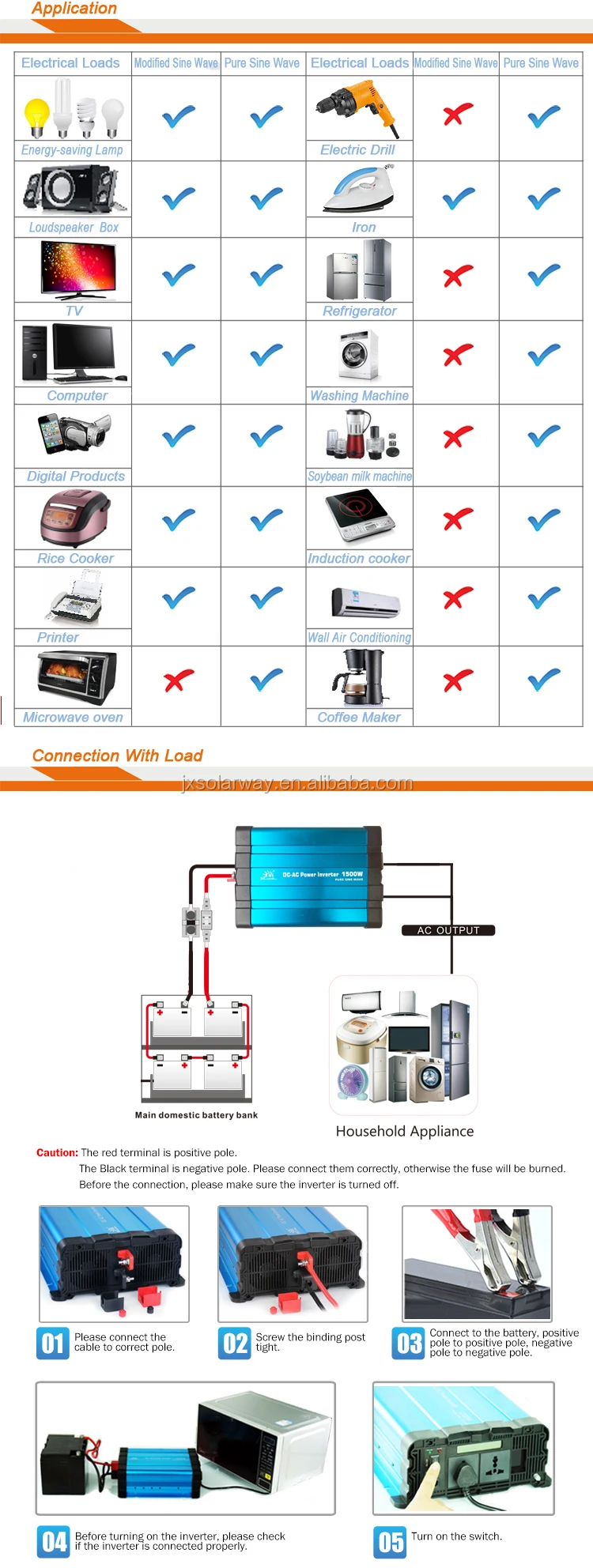

	Application	Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar power systems…etc.

FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in Jiaxing, Zhejiang, China.

2.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:Competitive Price

A:All of our products are produced by our own factory. So the price is very copetitive.

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.

7.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
