Single Output Type and 50/60 Hz Output Frequency 1.5K power inverter off grid solar system 24 V 230 V

Supplier: Jiaxing Solarway New Energy Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lucy Liu
Price: $53.54 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package:	Paper Skin Carton;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Brand Name:	SOLARVERTECH;	Color:	Black;
Peak power:	Rated Power *2;	Packaging Detail:	Exact overall dimension and mounting chart, make the installation more accurate and convenience for shipping.;
OEM:	Accept OEM;	Supply Ability:	5000 Piece/Pieces per Month;
Rated Power:	1500W;	Package Preview:	;
Frequency:	50/60 HZ;	Warranty:	1.5 Years;
Port:	shanghai/ningbo;	Phase:	Single Phase Solar Power;
Model Number:	NM1.5K;	Wave form:	Modify Sine Wave Power Inverter;
Application:	Off-grid System;	Place of Origin:	China;

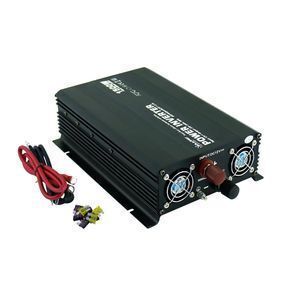

NM1.5K power inverter off grid solar system

Company Information

Solarway is a professional off-grid power inverter supplier, is a sino-german joint venture, mainly engaged in off-grid power inverter/MPPT and PWM controller, research and development, manufacturing and sales, we can provide customers with off-grid power INVERTER OEM and ODM. The factory is located in Jiaxing, Zhejiang Province, China. We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany.

Technical Parameters

MODEL		NM1.5K-112	NM1.5K-124	NM1.5K-148	NM1.5K-212		NM1.5K-224	NM1.5K-248
Output	AC Voltage	100/110/120VAC				220/230/240VAC
	Rated Power	1500W
	Surge Power	Load 120~150%(3min.);3000W(3sec.;resistive)
	Waveform	Modified Sine Wave
	USB port	5V 2.1A	5V 2.1A	------	5V 2.1A		5V 2.1A	------
Input	DC Voltage	12VDC	24VDC	48VDC	12VDC		24VDC	48VDC
	Voltage Range	10.5~15VDC	21~30VDC	42~60VDC	10.5~15VDC		21~30VDC	42~60VDC
	Efficiency(Typ.)	89%~93%
	Remote Control	Function(optional)
Protection	BAT.Low Alarm	10.5±0.5VDC	21±1.0VDC	42±2.0VDC	10.5±0.5VDC		21±1.0VDC	42±2.0VDC
	BAT.LOW Shutdown	10±0.5VDC	20±1.0VDC	40±2.0VDC	10±0.5VDC		20±1.0VDC	40±2.0VDC
	Over Load	Shut down output voltage, restart to recover
	Over Voltage	15.5±0.5VDC	31±1.0VDC	62±2.0VDC	15.5±0.5VDC		31±1.0VDC	62±2.0VDC
	Over Temperature	Shut down output voltage, recover automatically after temperature goes down
	Output Short	Shut down output voltage, restart to recover
	DC Input Reverse Polarity	By fuse
	Earth Fault	Shut off o/p when the load has electrical leakage
	Soft Start	Yes,3~5 Seconds

FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in Jiaxing, Zhejiang, China.
2.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:Competitive Price

A:All of our products are produced by our own factory. So the price is very copetitive.

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.

7.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
