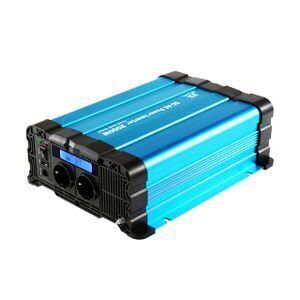

OEM 2kw/2000w/2000watt pure sine wave inverter 12v 220v

Supplier: Jiaxing Solarway New Energy Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lucy Liu
Price: $143.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	pure sine wave inverter;	Packaging Detail:	Exact overall dimension and mounting chart, make the installation more accurate and convenience for shipping.;
Warranty:	2 years;	Brand Name:	Solarvertech/OEM;
Display:	LCD;	OEM:	Accept OEM;
Certificate:	CE RoHS E8 ISO-9001;	Payment Terms:	T/T,Western Union,paypal;
package:	Paper Skin Carton;	USB Port:	5V 2.1A;
Port:	shanghai or ningbo;	Color:	Blue;
Place of Origin:	Zhejiang China;	Model Number:	FS2000D;
Supply Ability:	2000 Piece/Pieces per Month;

OEM 2kw/2000w/2000watt pure sine wave power inverter

FS Series

Product Description

MODEL		FS2000D-112	FS2000D-124	FS2000D-148	FS2000D-212	FS2000D-224	FS2000D-248
Output	AC Voltage	100/110/120VAC			220/230/240VAC
	Rated Power	2000W
	Surge Power	Load 120~150%(3min.);4000W(20ms.;resistive)
	Waveform	Pure Sine Wave(THD<3%)
	USB port	5V 2.1A	5V 2.1A	------	5V 2.1A	5V 2.1A	------
	Frequency	50/60Hz±0.05%
	AC Regulation	±5%			±10%
	Power Factor Allowed	COSθ-90º~COSθ+90º
	Standard Receptacles	USA/British/Franch/Schuko/UK/Australia/Universal etc.optional
	LED Indicator	Green for power on, red for faulty status
	LCD display	voltage, power, protection status(optional)
	Remote control function	default
	Remote controller	CR80/CRD80/CRW80 optional

1,Q:Why your quotation is higher than other suppliers?
A:In china market, There are many factories selling low-cost inverters, which is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, and some factories sells less power. For example real power is 600w but write 1000W or more. there is a very big security risk! In order to protect the personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: our NM and NS series Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
Type two: our NP, FS, NK series Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution..
..............................................................................................................................................................
3,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
4,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
..............................................................................................................................................................

5,How to choose suitable inverter ?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need highquality power.

............................................................................................................................................................

6,How do I choose the size of the inverter ?

Different types of load demand for power are different. You can view the load power values to determine the size of the inverter. Notice: resistive load: you can choose the same power as the load. Capacitive loads: according to the load, you can choose 2-5 times power. Inductive loads: according to the load, you can choose 4-7 times power.

.............................................................................................................................................................

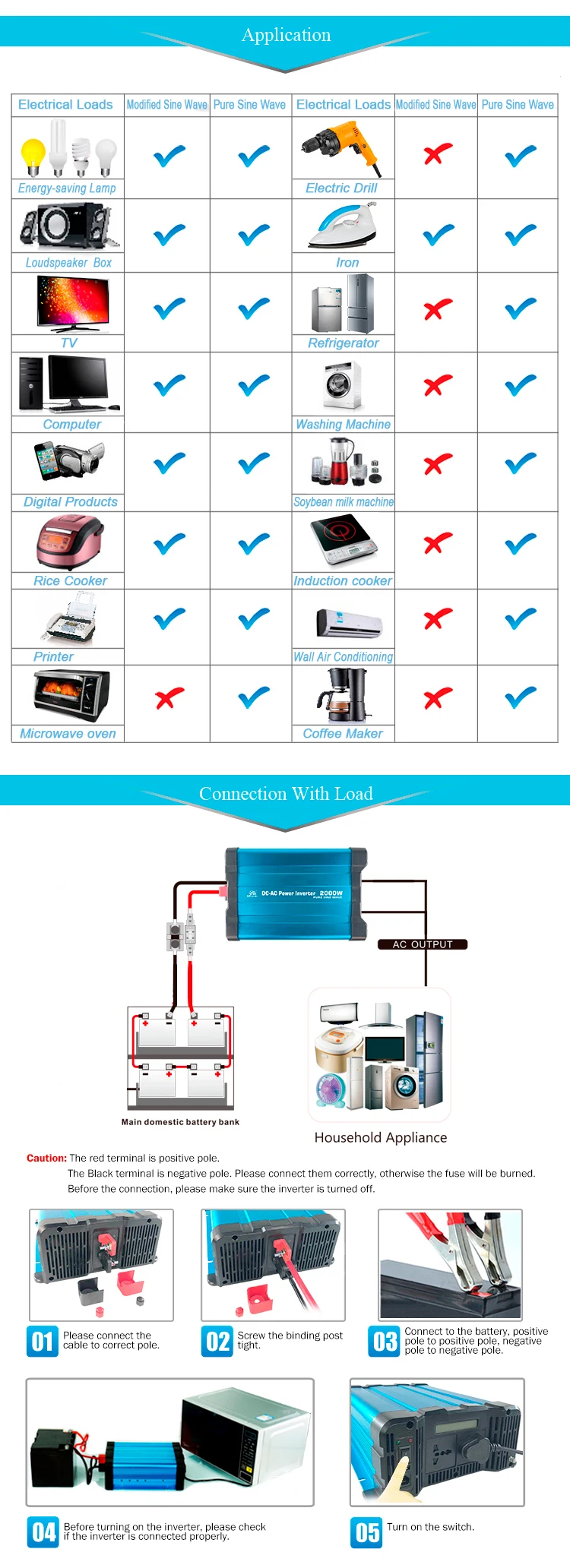

7,How connection between batteries and an inverter ?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.

.............................................................................................................................................................

8,How to calculate the load of working hours requires configuration of the battery size ?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss, so this is only a reference value: Work hours = battery capacity * battery voltage *0.8/load power (H= AH*V*0.8/W)
