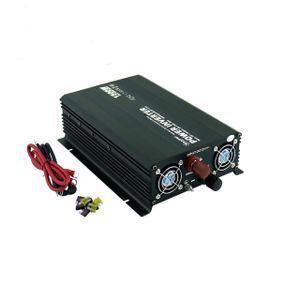

High efficiency MSW 1500 watt 24 volt 240 volt modified sine wave power inverter

Product details
Warranty:1 Year;Supply Ability:5000 Piece/Pieces per Month;
Wave form:Modified Sine Wave Power Inverter;Rated power:1500W;
Place of Origin:Zhejiang China;Package Preview:;
Application:Off-grid System;Brand Name:SOLARVERTECH/OEM;
Packaging Detail:Exact overall dimension and mounting chart, make the installation more accurate and convenience for shipping.;Port:shanghai/ningbo;
Package:Paper Carton;OEM:Accept OEM;
Payment Terms:T/T,Western Union,MoneyGram,PayPal;Frequency:50/60 HZ;
Model Number:NM1.5K;

High efficiency 1500 watt 24 volt 240 volt rechargeable power inverter modified sine wave

Company Information

Solarway is a professional off-grid power inverter supplier, is a sino-german joint venture, mainly engaged in off-grid power inverter/MPPT and PWM controller, research and development, manufacturing and sales, we can provide customers with off-grid power INVERTER OEM and ODM. The factory is located in Jiaxing, Zhejiang Province, China. We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany.

Technical Parameters



MODEL NM1.5K-112 NM1.5K-124 NM1.5K-148 NM1.5K-212 NM1.5K-224 NM1.5K-248
Output AC Voltage 100/110/120VAC 220/230/240VAC
  Rated Power 1500W
  Surge Power Load 120~150%(3min.);3000W(3sec.;resistive)
  Waveform Modified Sine Wave
  USB port 5V  2.1A 5V  2.1A ------ 5V  2.1A 5V  2.1A ------
Input DC Voltage 12VDC 24VDC 48VDC 12VDC 24VDC 48VDC
  Voltage Range 10.5~15VDC 21~30VDC 42~60VDC 10.5~15VDC 21~30VDC 42~60VDC
  Efficiency(Typ.) 89%~93%
  Remote Control Function(optional)
Protection BAT.Low Alarm 10.5±0.5VDC 21±1.0VDC 42±2.0VDC 10.5±0.5VDC 21±1.0VDC 42±2.0VDC
  BAT.LOW Shutdown 10±0.5VDC 20±1.0VDC 40±2.0VDC 10±0.5VDC 20±1.0VDC 40±2.0VDC
  Over Load Shut down output voltage, restart to recover
  Over Voltage 15.5±0.5VDC 31±1.0VDC 62±2.0VDC 15.5±0.5VDC 31±1.0VDC 62±2.0VDC
  Over Temperature Shut down output voltage, recover automatically after temperature goes down
  Output Short Shut down output voltage, restart to recover
  DC Input Reverse Polarity By fuse
  Earth Fault Shut off o/p when the load has electrical leakage
  Soft Start Yes,3~5 Seconds

FAQ



1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in power inverter for many years. Our facory is located in Jiaxing, Zhejiang, China.
..............................................................................................................................................................
2.Q:What kind of certification you have?
A:ISO9001,CE,ROHS and so on.

Our products could pass different labor testing according to different countries' requirements.
..............................................................................................................................................................

3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

............................................................................................................................................................

4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

.............................................................................................................................................................

5.Q:Competitive Price

A:All of our products are produced by our own factory. So the price is very copetitive.

.............................................................................................................................................................

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.

.............................................................................................................................................................

7.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
