copper mould tube for CCM

Product details
Local Service Location:None;Machinery Test Report:Provided;
Plating:Chrome;Standard:BS GB ASTM EN;
Packaging Detail:Fumigation wooden box;Showroom Location:None;
Video outgoing-inspection:Provided;Service:OEM ODM;
Port:Tianjin Seaport;Payment Terms:T/T;
Material:copper;Type:Machining Parts;
Brand Name:HFCB;Weight (KG):150 KG;
After Warranty Service:Online support;Certification:ISO9001,ISO-9001;
Product name:copper mould tube for CCM;Spare Parts Type:Copper Mould Tube;
Condition:New;Warranty:Unavailable;
Place of Origin:Hebei China;Key Selling Points:Long Service Life;
Supply Ability:30000.0 Piece/Pieces per Year;Marketing Type:New Product 2020;
Applicable Industries:Steel Plant;

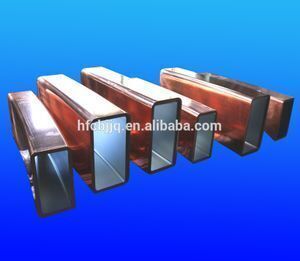

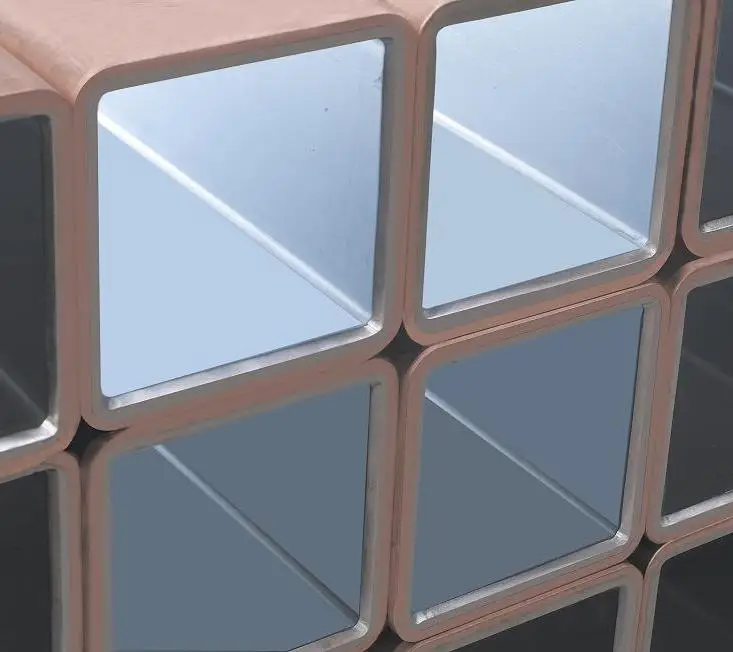

Copper mould tube for CCM

Product Description

The "heart ♥ " of continuous casting equipment.



(1) Gradually solidifying the molten steel into a shell of the required size and shape;
(2) By the vibration of the crystallizer to remove the shell from the mold wall without
being pulled off and leaking steel;
(3) By adjusting the parameters of the crystallizer, the casting blank does not have
defects such as stripping, bulging and cracking;
(4) Ensure uniform and stable formation of the shell.

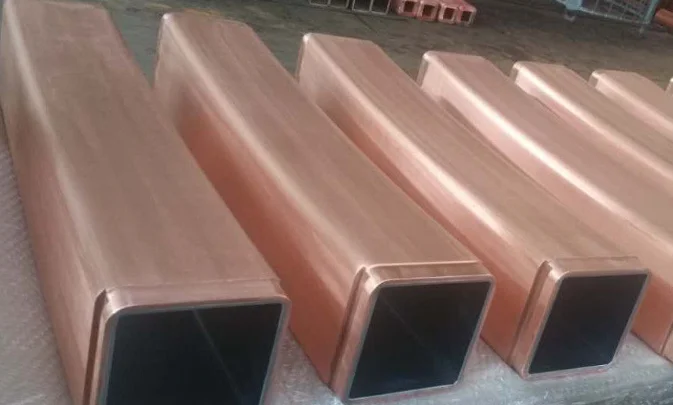

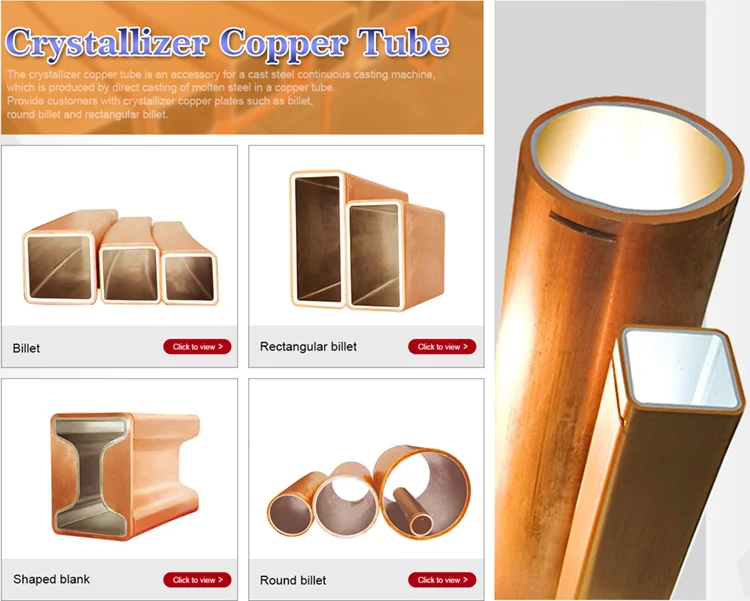

The crystallizer copper tube is an accessory for a cast steel continuous casting machine,
which is produced by direct casting of molten steel in a copper tube.

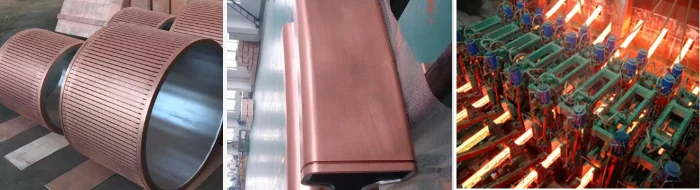

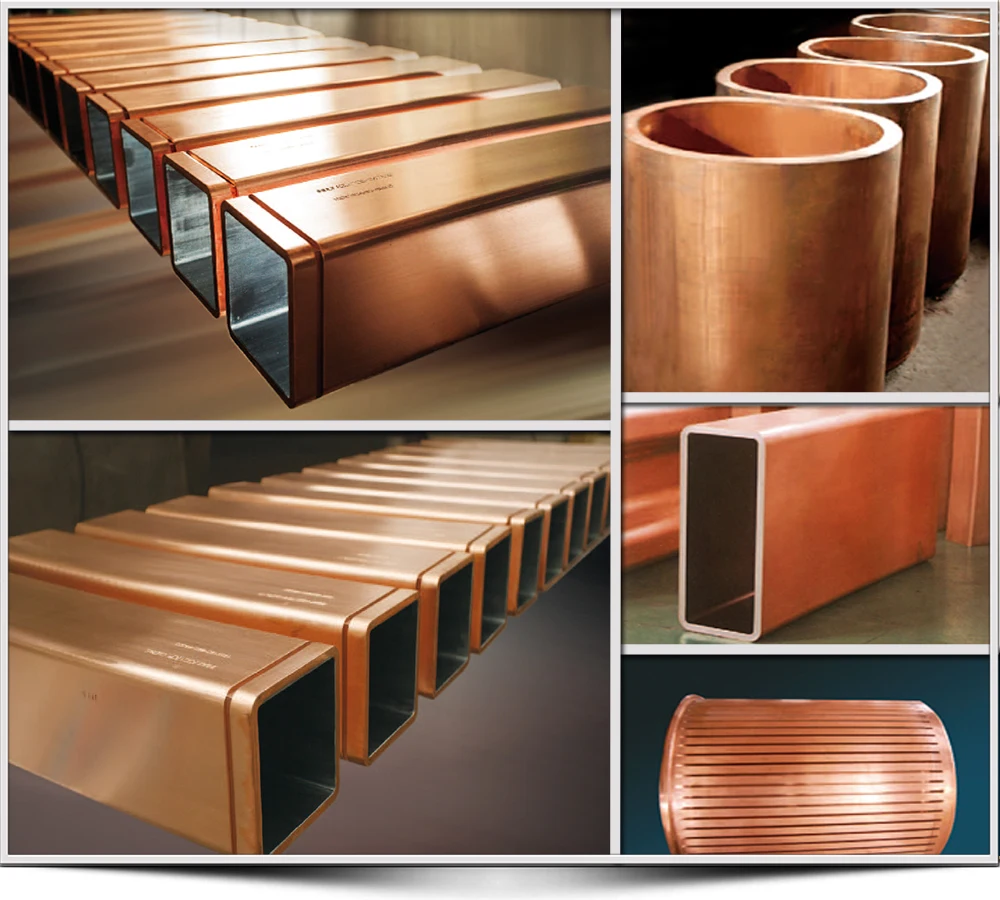

Provide customers with crystallizer copper plates such as billet, round billet and rectangular billet

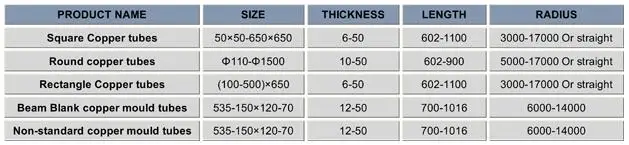

Product specifications: cover all sizes required
  Billet from 90mmX90mm to 330mmX330mm
  Round billet from φ100mm to φ1000mm
  Rectangular billet from 70mmX110mm to 550mmX720mm
Taper design: Provide different copper tube cavity dimensions according to customer's needs and
production environment. The main forms are single cone, multi cone and parabola.
Production capacity: 50,000 pieces / year

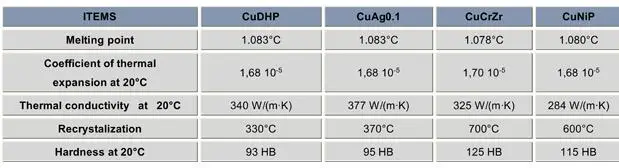

Material: DHP, CuAg, CuCrZr
Plating: Cr, composite plating













Related Products



About us



Our continuous casting mold copper tube is a famous product in Hebei Province, with an annual production capacity of 50,000 units ranking first in China.

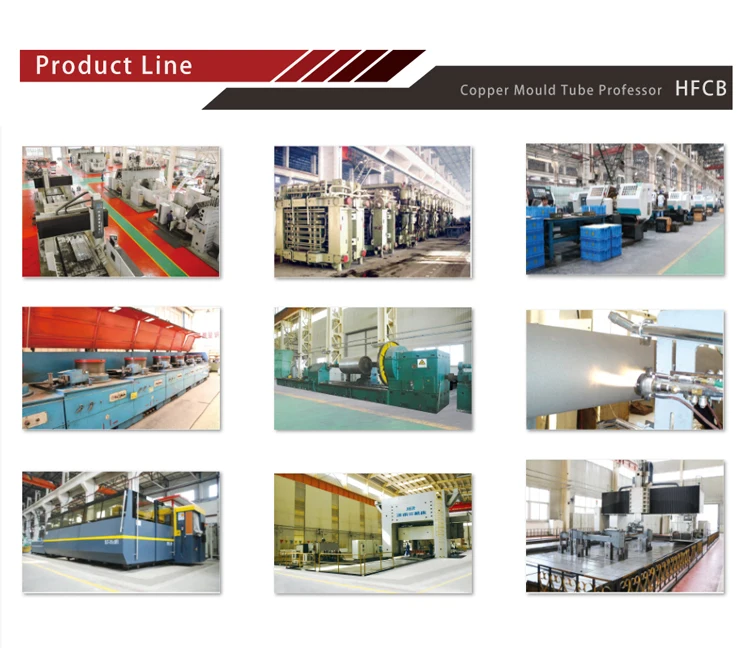

We won the “national high-tech enterprise”. In 2000, we passed the ISO9001 quality system certification. We have three production plants and :copper material factory, molding factory and surface treatment factory.In the manufacture of crystallizer copper tubes, a production system has been established from design and development, blank preparation, tooling production, to surface treatment . “Changbai” brand crystallizer copper tube was rated as “High-tech product” by Department, and was rated as a high-tech enterprise of the National Torch Program, Hanfeng Changbai Crystallizer Co., Ltd. has the first mold copper tube production line,with complete process chain and testing. Achieve self-completed process from copper water refining, copper billet preparation to forming, polishing, heat treatment and surface treatment.
