High quality 24V 10/100Mbps 8 ports mini desktop Network reverse PoE switch PCB board

Product details
Ports:≤ 8;Applications:Support PoE IP Cameras;
Single package size:12X7X1.5 cm;Transmission Rate:10/100Mbps;
Place of Origin:Guangdong China;Warranty:3 Years;
Product Name:8 ports Reverse PoE Switch;Communication Mode:Full-Duplex & Half-Duplex;
Switch Capacity:1Gbps;Certification:CE FCC RoHS;
Power Supply:DC24V;Function:POE,VLAN Support;
Single gross weight:0.2 KG;Model Number:ES100-7PD;
Packaging Detail:bubble box, carton;Fixed vlan:support;
Selling Units:Single item;Products Status:Stock;
Brand Name:GXCOM;Connector Type:8x 10/100Mbps RJ45 Ports;

Product Name



High quality 24V 10/100Mbps 8 ports mini desktop Network reverse PoE switch PCB board



Overview



 ES100-7PD Reverse PoE Switch with 7-Port PoE provides the seamless network connection. It integrates 10/100Mbps Fast Ethernet network capabilities. Port1-7 for PoE In, Port 8 can do PoE out,Support 24v 1A Passive PoE compliant PSD and PD.

8 port Ethernet switch can be powered by multiple power supply equipment at the same time. 8 port Ethernet switch has 7 pd port, and 1 pse port. 1 pse port can supply the next switch or other powered equipment. Powered switch can work without power adapter. It solved the problem of power to customers.



Features

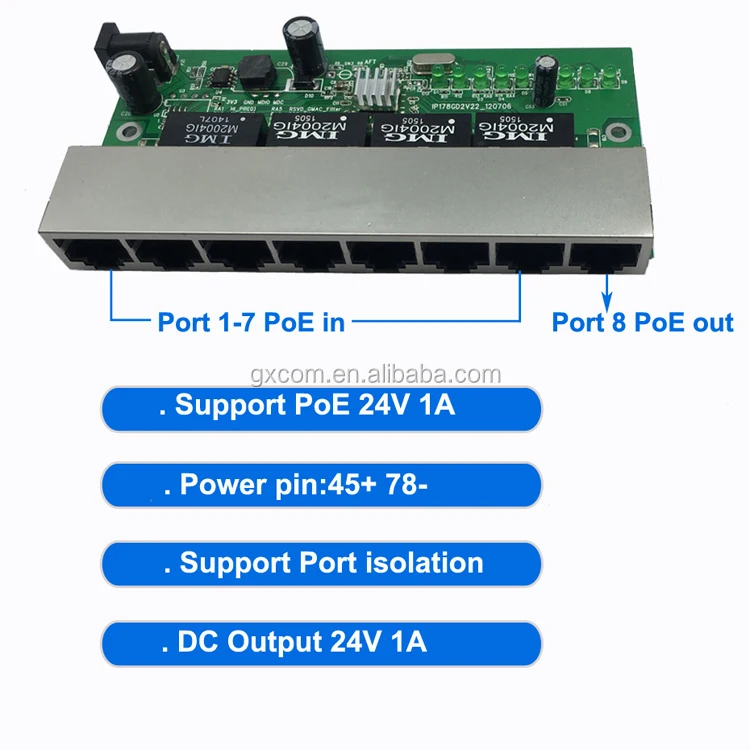

1. Port 1-7 for PoE In,Port 8 for PoE Out.

2  Support 24v Passive PoE compliant PSD and PD.

3  DC output 24v 1A,  45+,78-

4  Support port isolation

5.  Plug and play

6.  Support Green Ethernet

7.  Transient voltage suppressors for ESD protection





Technical Specification



Powered port

1-7 port

Powered pin

45+,78- 24vdc

PSE port

8 port

Power pin

45+,78- 24vdc

Ethernet port

8

Parameters

interface:RJ45

line:cat 5,

Protocol

IEEE 802.3 i 10 BASE-T;

IEEE 802.3 u 100 BASE-TX;

IEEE 802.3 x Flow Control;

Performance

back inpress:1.6G
address:48bits MAC
address database:1,000 MAC
delay:<3ms
buffer :96kb



Working Tem.

0℃-55℃

Storage Tem.

-20℃-70℃

Operatig Humidity

20%-85%,Non-condensing

Electromagnetic Emissions

CE mark,commercial  FCC Part 15 class B   C tick   VCCI Class B

Safety

CE Mark,commercial    CE/LVDA EN60950

Warranty

One year

Dimension

120*70*15mm

Gross Weight

0.1kg

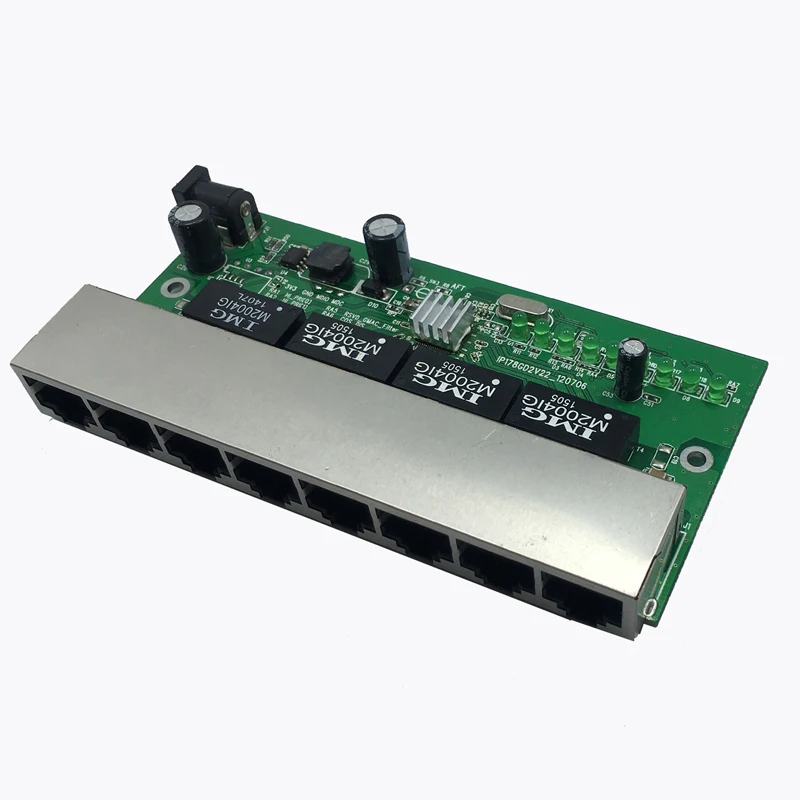

Product Images
