8GE RJ45 Plus 2GE SFP Fiber Optical RPOE Reverse Gigabit Switch with Waterproof Box IP65 for Outdoor Usage

Product details
Port:GUANGZHOU SHENZHEN;Place of Origin:China;
Ports:10;Transmission Rate:10/100/1000Mbps;
Switch Capacity:20G;Products Status:Stock;
Brand Name:GXCOM;Supply Ability:5000 Piece/Pieces per Month;
Communication Mode:Full-Duplex & Half-Duplex;Packaging Detail:bubble box, carton;
Model Number:ES1000-8GPD-2FM-IP65;Certification:CE FCC RoHS;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Function:LACP,POE,QoS,VLAN Support;
Product Description

Introduction:

The ES1000-8GPD-2FM-ip65  Reverse Power over Ethernet (Reverse PoE for short) is managed gigabit switch, which, facilitates power supply for installation in corridors, providing broadband network access for families and small to medium enterprises by using category-5 cables routed in the building. The ES1000-8GPD-2FM Reverse PoE is a box-type device, providing 2 SFP ports and eight LAN user ports, and is powered by the power sourcing equipment (PSE) deployed in users' residences. The ES1000-8GPD-2FM Reverse PoE is applied in scenarios where there is no alternating current (AC) power supply in corridors, featuring easy installation and maintenance, broad temperature range, low power consumption, mute design, high stability, environment-friendlily, and energy conservation.

Features:

1.With 8XGE reverse incoming poe ports, 2XGE SFP fiber optical port

2.Working with 24-48vdc reverse poe compliant PSE, expands LAN network

3.Output 12vdc power supply via dc jack, which can be supplied to ONT

4.Support L2 web management, QOS,VLAN, link aggregation

5.Plug and play,4kv surge protection for outdoor usage

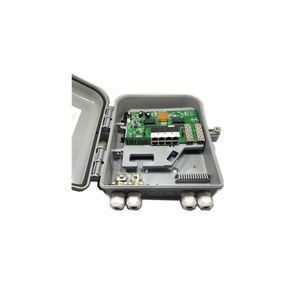

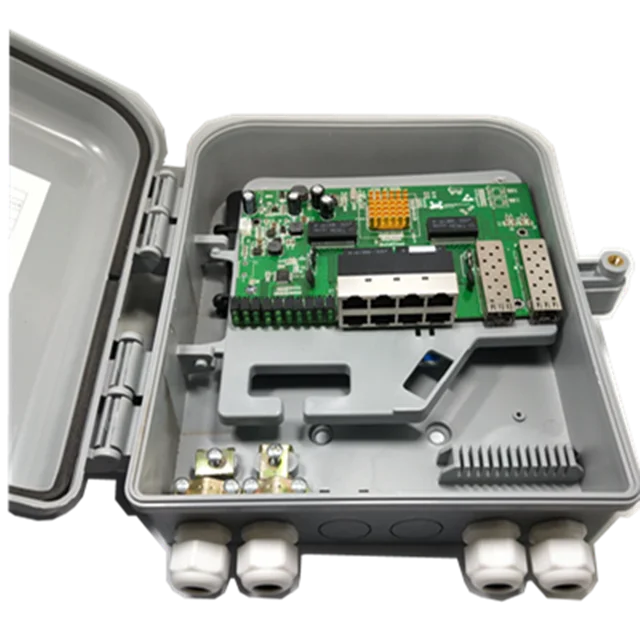

6.ip65 waterproof box for outdoor usage

Technical items
Description
interface
8x10/100/1000Mbps  rj45 + 2x1000base-x sfp
POE
port1-port7 PoE in, Port8 out
bandwidth
20g
demension
160*95*22 mm
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
L2 Features
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward

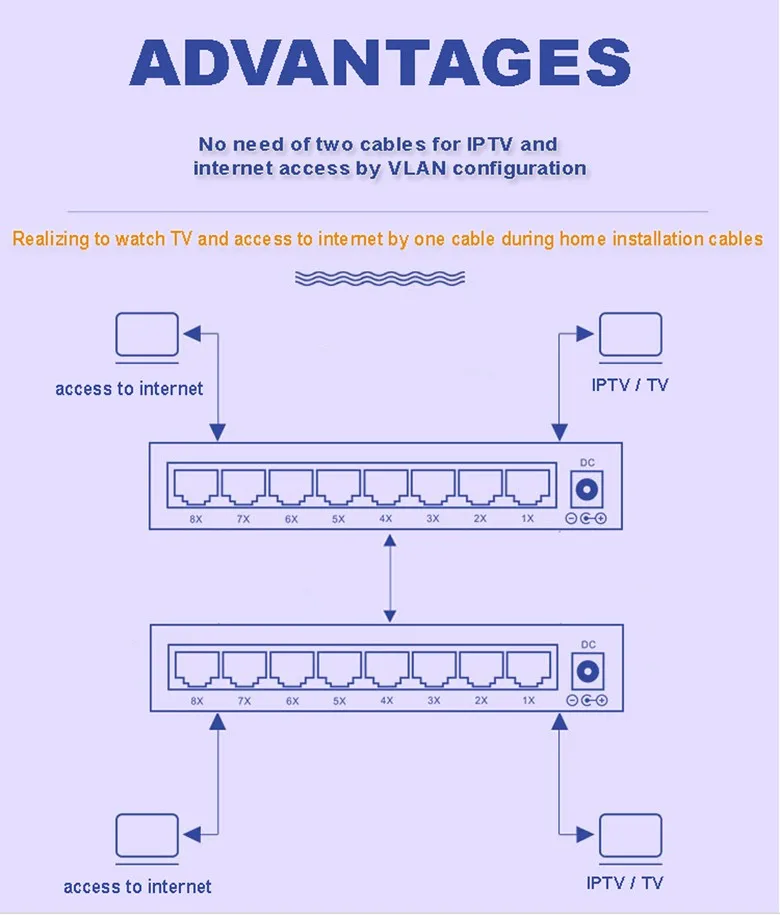

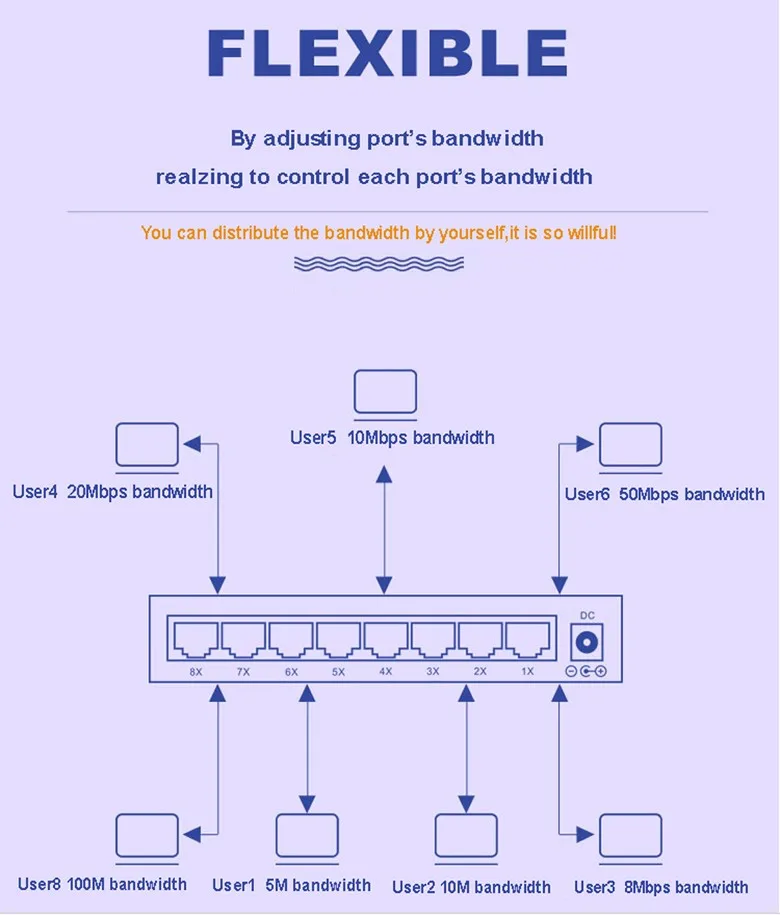

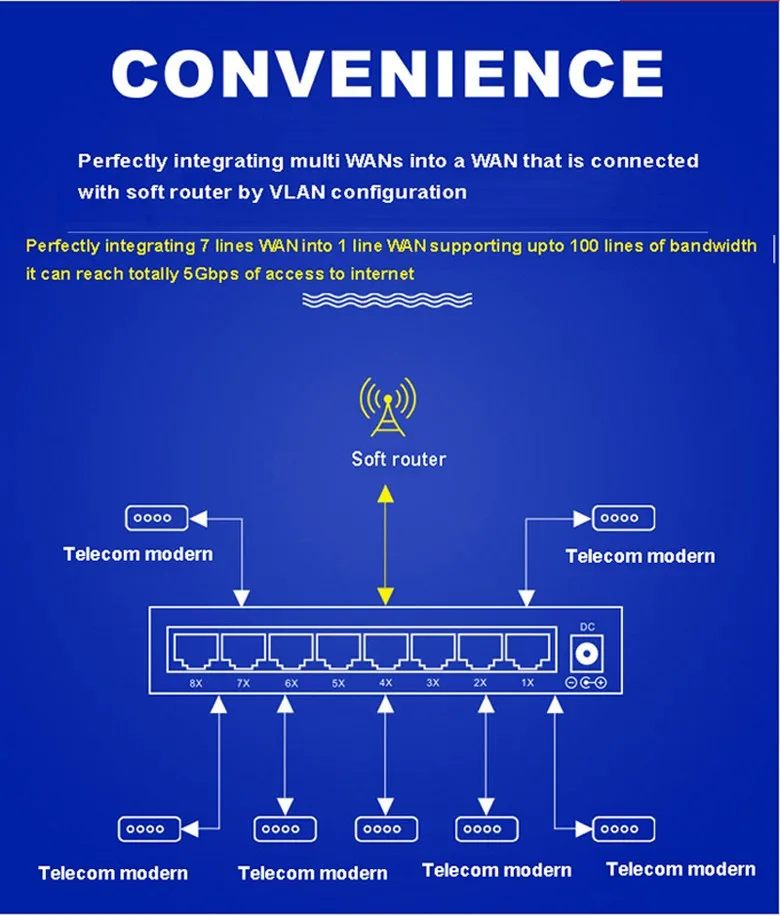

Detailed Images
