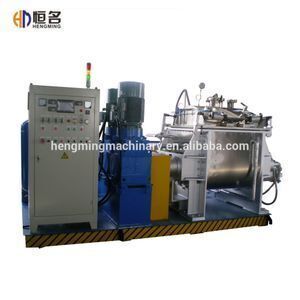

Sigma Rubber Kneader Mixer

Supplier: Nantong Hengming Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Angus Chen
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	HM;	After-sales Service Provided:	Free spare parts,Engineers available to service machinery overseas;
Warranty:	1 YEAR;	Type:	Rubber Mixer;
Voltage:	380V/50HZ;	Supply Ability:	10 Set/Sets per Month;
Color:	Optional;	Dimension(LWH):	680360620-650030003000mm;
Key Selling Points:	Competitive Price;	Place of Origin:	Jiangsu China;
Port:	Shanghai port;	Condition:	New;
Model Number:	0.25-7000L;	Applicable Industries:	Manufacturing Plant;
Packaging Detail:	Sigma Rubber Kneader Mixer is packed by plywood, electric parts will be packed in waterproof boxes.;	Name:	High Efficient Rubber Kneader/ Kneading Machine;
Certification:	CE ISO;	Power(W):	0.5-160KW;
Weight:	120-75000KG;	Capacity:	0.15-6300L;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;

Product Description

Sigma Rubber Kneader Mixer

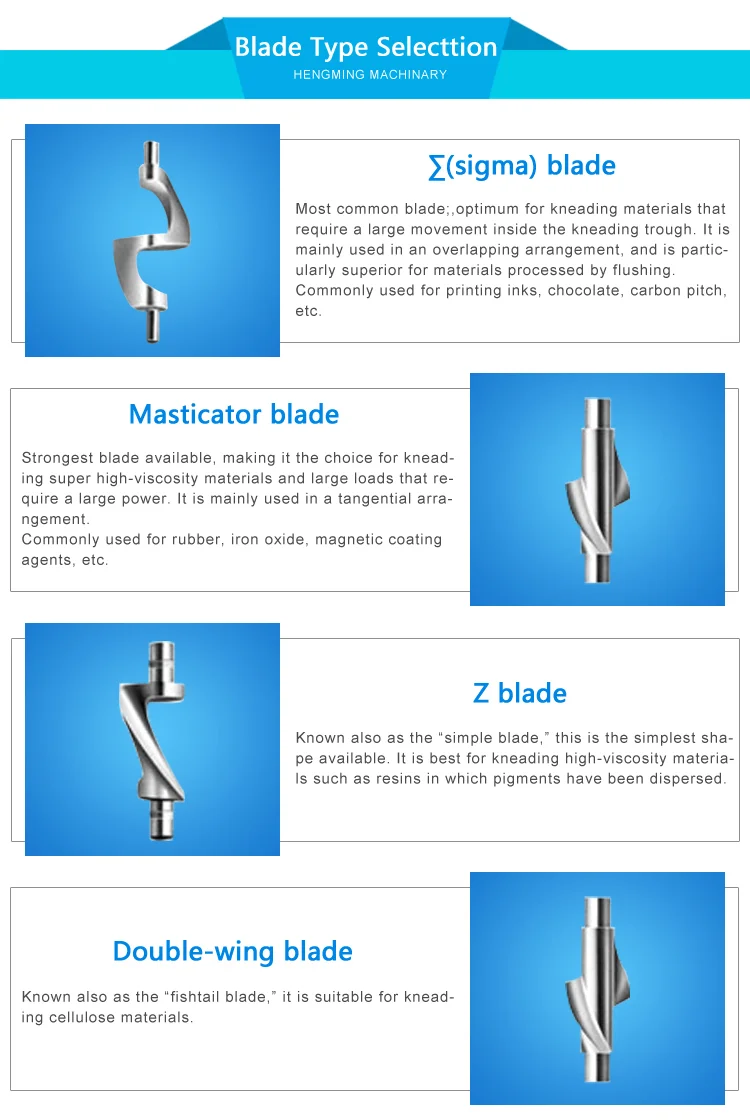

The Hengming horizontal KNEADER MIXER offers general purpose kneading of high-to super high-viscosity materials. The kneading effect(kneading, crushing, dispersing) is maximized by the powerful shear force generated between the two strong blades and between the blades and kneading trough. Cooling,heating, and vacuum/decompression are also possible (as options). A flushing-type kneader (flusher), which operates with heat vacuum/decompression, is also available as an option.

Applications for Sigma Rubber Kneader Mixer:

Technical ceramics
Hot-melt adhesives
Manufacture of abrasives
Graphite compounds
Sealing compounds
Lubricants
Hard metal compounds

Advantages of Sigma Rubber Kneader Mixer:

Intensive kneading and dispersion of high viscosity products
Shorter processing times with improved product quality
Minimum processing capacity of 25% of the total container volume
Infinitely variable speed adjustment via a frequency converter
Automation possible in accordance with customer requirements
All metal components which come into contact with the product are made from AISI 316L / 316Ti stainless steel
Seals made from high quality materials

Specification

Specification of Sigma Rubber Kneader Mixer

Type	Total capacity(L)	Working capacity(L)	Power of motor(KW)	Discharge method	Heating method
NHZ-50	50	30	4-5.5	Tilting chamber	By steam or electic
NHZ-100	100	60	5.5-7.5
NHZ-200	200	120	7.5-11
NHZ-300	300	180	11-15	Tilting chamber or bottom discharge
NHZ-500	500	300	15-30
NHZ-1000	1000	600	37-55
NHZ-1500	1500	900	55-75
NHZ-2000	2000	1200	75-90
NHZ-3000	3000	1800	90-110
NHZ-4000	4000	2400	132-160
