Automatic Paint/Rubber/Silicone Internal Mixer For Sale

Supplier: Nantong Hengming Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Angus Chen
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	manufacturing plant	Types of:	Rubber mixer
Warranty:	1 year	place of origin; place of origin:	Jiangsu, China
brand:	ham	Main selling points:	easy to operate
name:	Rubber Mixing Banbury Machine	port:	Shanghai port
State of health:	new	Certification:	International Organization for Standardization
model:	0.25-7000L	Packaging Details:	The automatic paint/rubber/silicone banbury mixer for sale is packed by plywood and the electrical parts will be packed in a waterproof box.
After-sales service provided:	Free spare parts, engineers available to repair machinery overseas	strength:	0.5-160KW
Voltage:	380V/50HZ	capacity:	0.15-6300L
Supply capacity:	10 sets per month	color:	Elective
weight:	120-75000KG	Dimensions (LWH):	680360620-650030003000mm
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash

Product Description

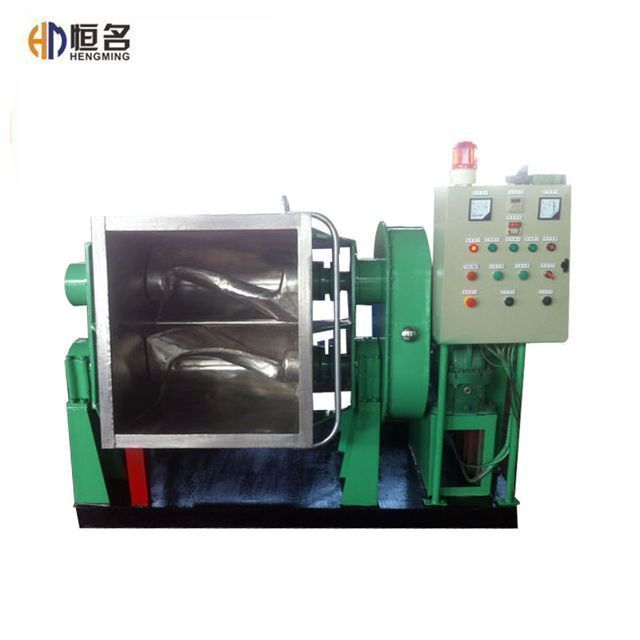

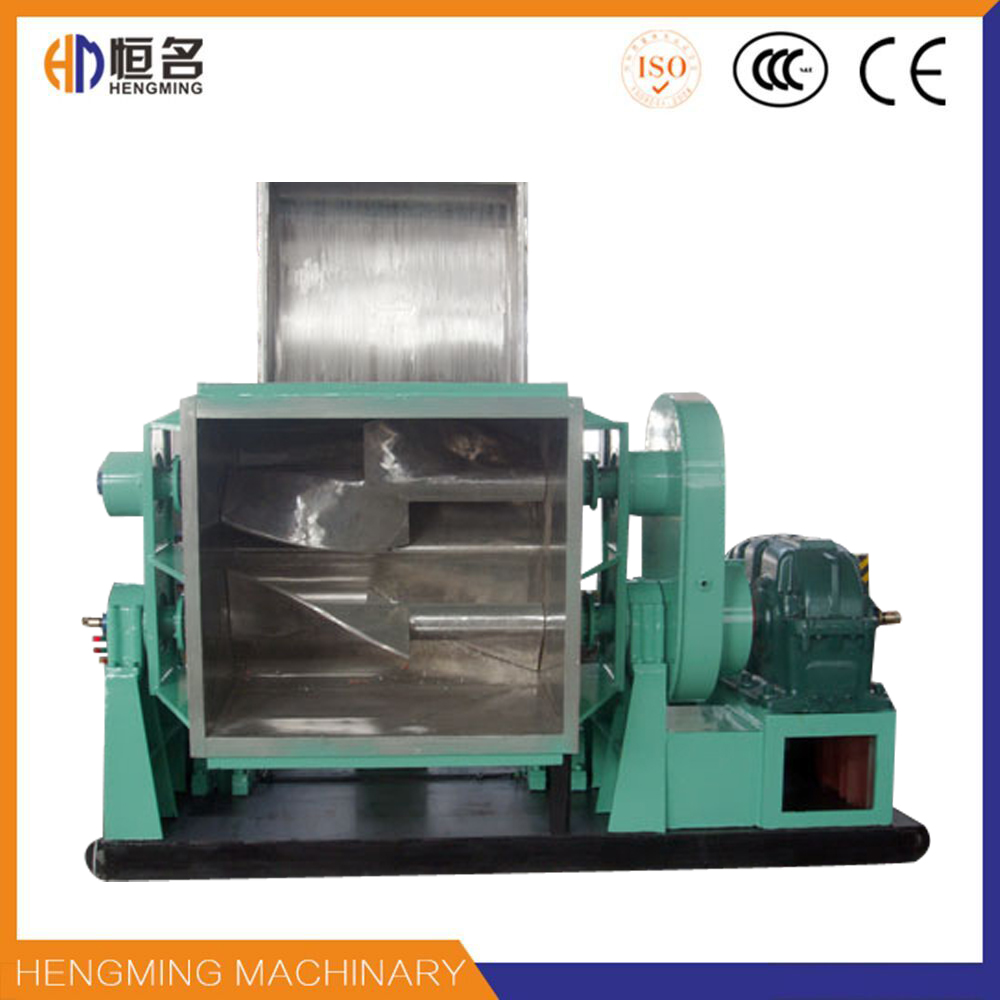

Automatic Paint/Rubber/Silicone Internal Mixer For Sale

Hengming Automatic Paint/Rubber/Silicone Banbury Mixers for sale provide general purpose kneading of high to ultra high viscosity materials. The kneading effect (kneading, pulverizing, dispersing) is maximized by the strong shearing force generated between the two powerful blades and between the blades and the kneading tank. Cooling, heating and vacuum/decompression are also possible (as options). Optionally, flushing kneaders (flushers) with thermal vacuum/pressure reduction operation are also available.

Automatic Paint/Rubber/Silicone Banbury Mixer For Sale Applications:

technical ceramics
hot melt adhesive
Abrasive Manufacturing
graphite compound
Sealants
lubricating oil
hard metal compound

Advantages of Automatic Paint/Rubber/Silicone Internal Mixer for Sale:

Intensive kneading and dispersion of highly viscous products
Reduce processing time and improve product quality
The minimum handling capacity is 25% of the total volume of the container
Infinitely variable speed regulation via frequency converter
Can be automated according to customer requirements
All metal parts in contact with the product are made of AISI 316L / 316Ti stainless steel
Seals made of high-quality materials

Knife selection:

∑(sigma) blade		The most common blade; best suited for kneading materials that require greater movement within the kneading tank. It is mainly used for overlapping arrangement, especially for the materials processed by washing. Commonly used in printing ink, chocolate, carbon pitch, etc.
chewing blade		The strongest blades available, making it the choice for kneading ultra-high viscosity materials and large loads requiring high power. It is mainly used for tangential arrangement. Commonly used in rubber, iron oxide, magnetic coating agents, etc.
Z blade		Also known as a "simple blade," this is the simplest shape available. Ideal for kneading high-viscosity materials such as pigment-dispersed resins.
double wing blade		Also known as a "fishtail blade", it is suitable for kneading cellulosic materials.

Specification

Specifications of Automatic Paint/Rubber/Silicone Banbury Mixer for Sale

Types of	Total capacity (L)	Working capacity(L)	Motor Power(kilowatt)	freed	way to heat up
NH-50	50	30	2.2-4	Inclined chamber or bottom discharge	electric
NH-100	100	60	3-7.5
NH-200	200	120	5.5-11
NH-300	300	180	7.5-15
NH-500	500	300	11-22		by steam or electric
NH-1000	1000	600	22-45
NH-1500	1500	900	30-55
NH-2000	2000	1200	45-90
NH-3000	3000	1800	55-132
NH-4000	4000	2400	75-160
NH-5000	5000	3000	90-200
NH-6000	6000	3600	110-250
