Professional Economic 3 Phase Stepper Motor Driver With DSP

Product details
Airframe Color:Black;Current:1.2-7.0A;
Communication Mode:RS232/RS485;Motor Type:Stepper Motor;
Voltage range:AC110V-220V;Control Type:Step and Dir;
Advantage:Speed stability and Control convenient;Packaging Detail:with carton, as standard package of SZGH;
Protection:Overvoltage, under-voltage , over-current alarm protection;Place of Origin:Guangdong China;
Weight:1.2kg;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Confifuration:DIP Switch;Matching Motor:NEMA23,34 ,42 Motors;
Model Number:Q3BYG2207MB/MC;Port:Shenzhen China;
Supply Ability:1000 Piece/Pieces per Month;Brand Name:SZGH;

Professional Economic 3 Phase Stepper Motor Driver With DSP

Product Descripton:

3-phase stepper driver AC110V~220V

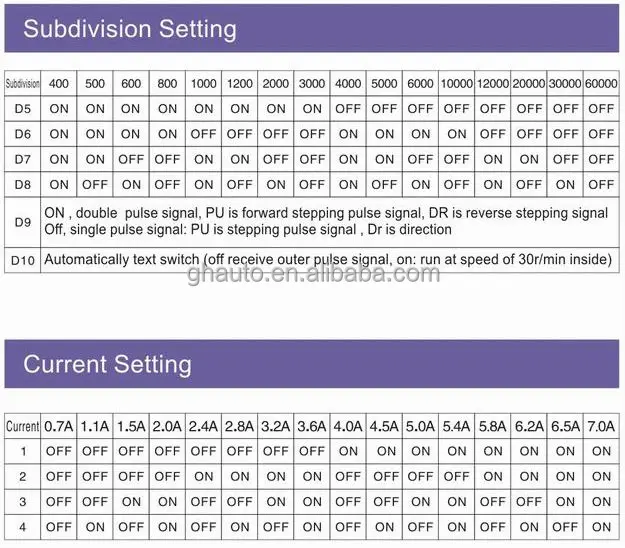

6 gear equal of angle constant torque subdivision, the maximal resolution is 60000 step/rotation



The maximal response frequency is 200K pps



When stepper impulse stop is over 1.5s, coil current will automatically reduce to half of setting current



The I/O signals are isolated by photoelectric mode



Driver current is 1.2A/phase to 7.0 A/phase, 16 gear can be adjusted



Single power input, the voltage range: AC 110V-220V



Phase remember function (note: input being stop over 3 seconds, the driver automatically remember of that time motor phase. If restart the driver or MF signal change from low level to high level, driver automatically recover motor phase.)

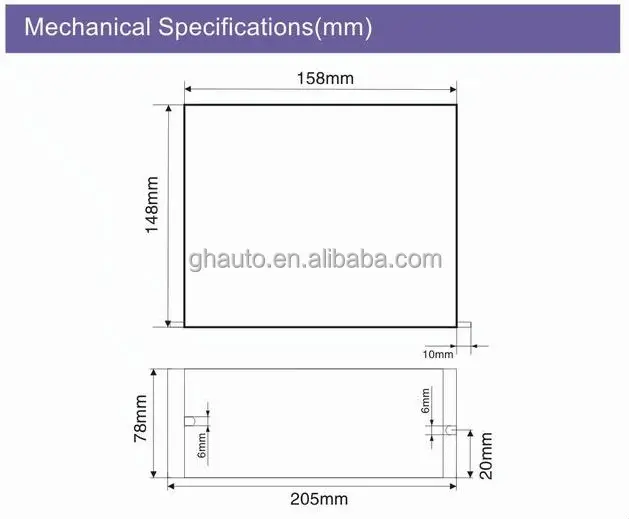

Specifications:



Our Services





About our Company:

Official Websit: http://www.szghauto.com/

Websit In Alibaba: http://ghauto.en.alibaba.com/



        we can provide with suitable package solution by CNC system and motor ,driver, gear box, Shenzhen Guanhong Automation CO.,LTD (short name:SZGH) has professional technical team, strictly product test for high quality guarantee, very competitive quotation, specially we has flexible and convenient payment mode by T/T, western union and Paypal etc,. and low cost delivery solution for clients.



Our company tenet “Quality is the life of enterprise “, Your satisfy is our greatest achievement.

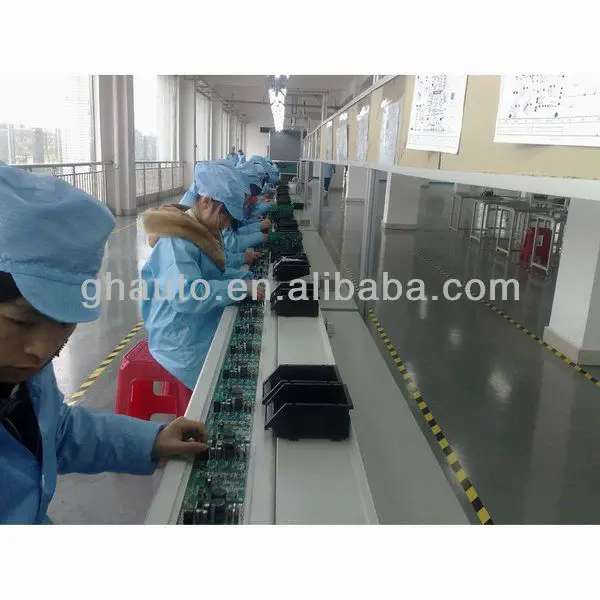

Produce workshop:
