4 axis cnc milling controller with ATC+PLC as fanuc cnc control system

Supplier: Shenzhen Guanhong Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Susie Xu
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	standard erporting packing;	Brand Name:	SZGH;
Copy interface:	USB movable U disc;	Port:	Shenzhen.CHINA;
CPU:	32 bits;	menu:	english;
Condition:	New;	Communication Mode:	RS232;
Certification:	CE;	function:	PLC and macro function;
Applicable Industries:	CNC Drilling and Milling Controller Machinery;	Dimension(LWH):	412205120mm;
Place of Origin:	Guangdong China;	Panel:	touch screen main and sub panel;
Supply Ability:	500 Set/Sets per Month;	Warranty:	1 Year;
Display screen:	640*480 8 inch real color LCD displayer;	Weight:	10KG;
User store room:	32Mb;	Memory:	64M;
Condition:	New;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Application:	Milling Machine;

4 axis cnc milling controller as fanuc cnc controller

Product Description

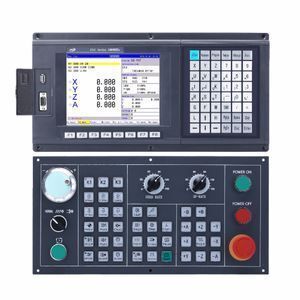

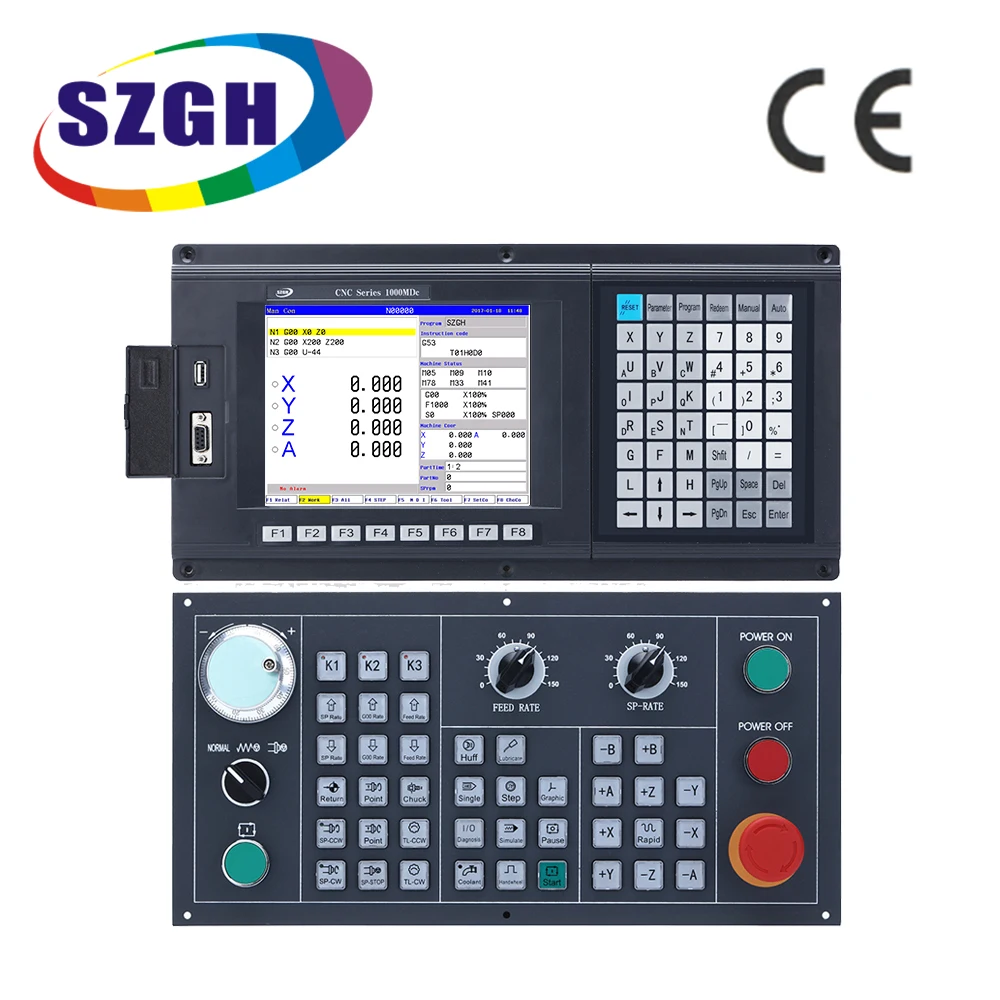

SZGH-CNC1000MDc-4 axis CNC drilling and milling controller , it is closed loop CNC controller and able to work with absolutely encoder motor , support PLC , macro and automatic tool exchange and encoder feedback function,specilized in milling machine center, with I/O 32X32,support bus network connection, and absolutely type motor Linear encoder feedback etc, it is high classes and very stronger CNC milling controller..

Feature

All SZGH Milling Controller Support ATC function!!(Linear&Umbrella/hat Tool Magazine)!

1) 800*600 8.4 Inches real color display

2) Support Linear&umbrella ATC function , Macro function,and PLC function

3) 5MHz Output Pulse Frequency,Max speed is 300m/min, feeding speed is 150m/min

4) 128MB Memory , 110Mb user store room,

5) Analog voltage output of 0~10V in two channels,support double spindles

6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

7) High anti-jamming switch power(220VAC -> DC 24V & 5V)

8) Built-in many plc programs,which can be edited freely.

9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade

10) Display in chinese or english,which can be selected by parameter.

11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.

12) I/Os : 56*32, can be edited freely

13) cutter offset : C

14) English menu, program and interface, full screen edition

Technical Specifications

1) System technical parameter

controllable axes:X.Y.Z.A four axis.

linkage axes:Arc 2-3 axes, liner 2-5 axes.

pulse equivalent:X.Y.Z.A axes:0.001mm.

max speed:X.Y.Z.A:60000mm/min.

cutting speed:1-10000mm/min.

min input unit:0.001mm.

program size range:± 99999.999.

99 tools management.

program code ISO-840 international standard.

program coordinate system definition ISO-841.

chassis protection complies with regulation of IP43.

2)System function

Auto-diagnosis function

All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.

Compensation function

automatic backlash compensation.

tool radius automatic compensation.

tool radius automatic offset and sharp angle transition.

leading screw pitch error automatic compensation.

Abundant instruction system

scaling up/down instruction

mirror machining instruction.

mutiple tool offset instruction.

program cycle, jump, call and different program ending.

multiple positioning instruction starting point setting fixed point,etc.

linera, circular spiral line interpolation instruction.

program management instructions: program cycle, call, transfer and different program ending method, etc.

6 work pieces coordinates system .

English menu, full screen edition

Easy operation, convenient viewing.

Abundant debugging functions

it can point out clearly what errors of operation are and guide to correct them.

Program changing between CNC system and IBM/PC series compatible computer

it can conduct CAD/CAM/CAPP auxiliary programming by using Pc series compatible computer's abundant software resources then transfer the CNC program into the system to machining through USB movable U disc copy port RS232 port.Likewise it also can transfer the program from system to PC through communication port.

Application:

Metal parts processing ( car/steamship metal processing industry ), glass product ( mobile, TV, computer, electrical switch etc,. glass board proceeding ) , wood furniture etc,. processing produce line (lathe, milling, grinder processing etc)
