High Power 1.5KW AC Servo Motor and Drive/220V ac motor speed controller

Supplier: Shenzhen Guanhong Automation Co., Ltd.
Region: Guangdong, China
Contact: Ms Susie Xu
Price: $90.00 /set
Min. Order: 1 set

Click here to contact

Product details

rated voltage:	single or 3 phase 220V AC;	Communication port:	RS232/RS485;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Type:	SD2004;
Speed ratio:	1:5000;	Place of Origin:	Guangdong China;
Model Number:	SZGH-SD2004;	Control technique:	3 phase full wave rectification, SVPWM space vector control;
Current:	20A;	Control mode:	torque/position/velocity;
Supply Ability:	600 Set/Sets per Month;	Matched motor:	600-1000W;
Port:	ShenZhen.China;	Speed volatility:	<±0.03%within rated torque;
Certifition:	CE;	Brand Name:	SZGH;
Motor Type:	AC Motor;	Packaging Detail:	standard exporting packing, as standard package of SZGH every carton is one pcs;

High Power AC Servo Motor Drive/220V AC Controller

Product Description

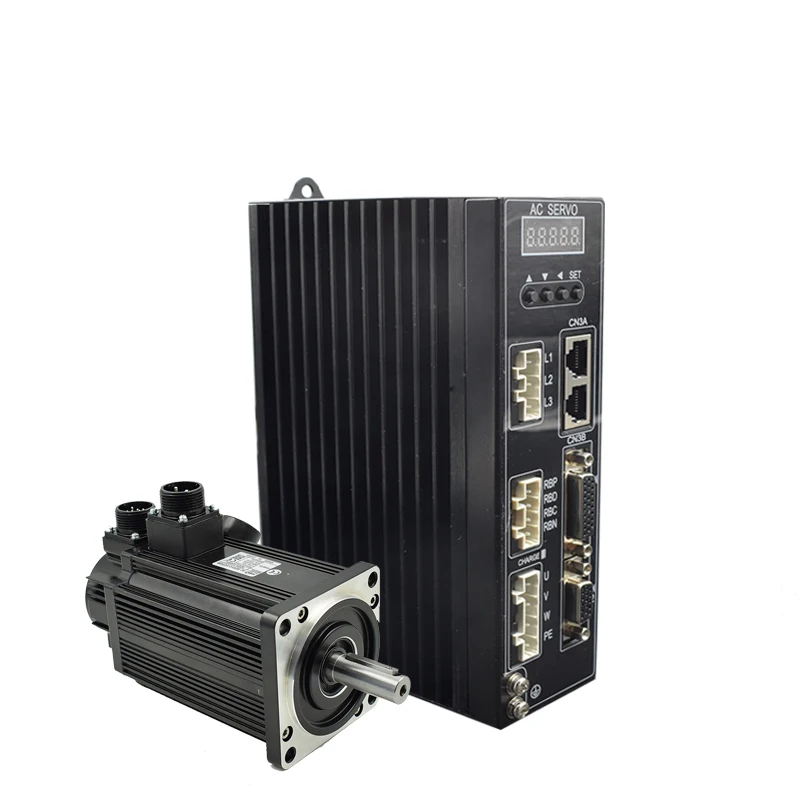

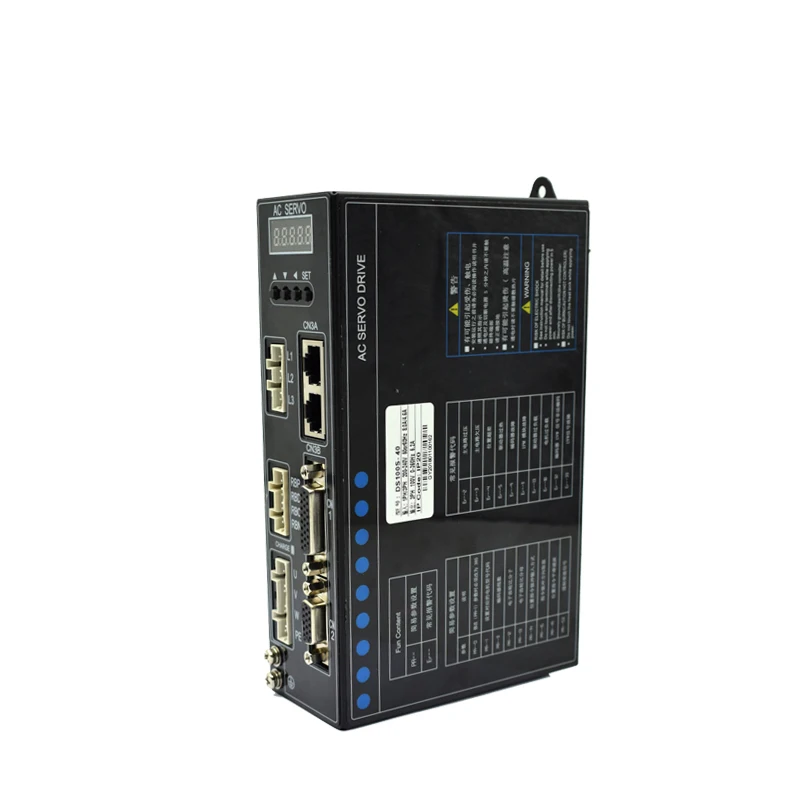

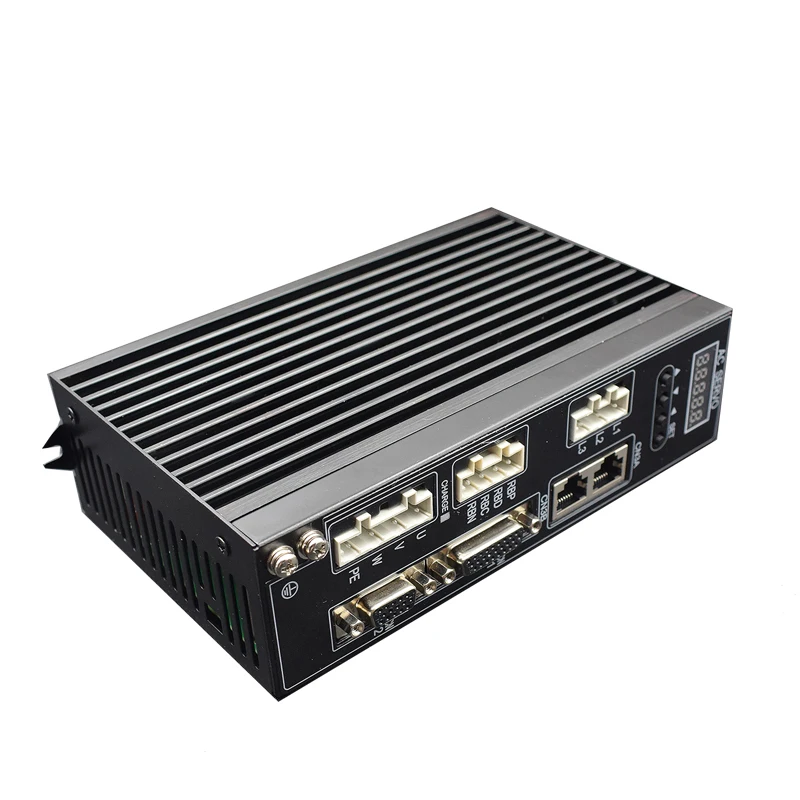

SZGH-sd2004 AC servo driver is matched with 750W servo motor, such as:09075DC and 09075BC,it has been added radiator fan, better performance

Specifications

Control technique	3 phase full wave rectification, SVPWM space vector control
Input power	AC220V -15%~10%
Feedback	incremental 1000 wire/2500 wire photoelectric rotary encoder
Speed ratio	1:5000
Speed volatility	<±0.03%within rated torque
Pulse command input	pulse type	pulse+direction, pulse+pulse A+B 90°orthogonal pulse
	pulse form	differential drive open collector
	pulse frequency	differential drive:500k open collector:200K
Analog command input	- 10V~10V, input resistance 10k∩
Pulse output signal	encoder ABZ phase differential output Z signal collector output
Input signal	servo enable alarm clear position forbid forward limit reversal limit,control mode
Output signal	locate finish , servo alarm , servo ready , brake output, zero output
Protection function	over current ,over voltage , low voltage , overload , overheat,phase loss,over speed , encoder unusual,module unusual
Monitoring function	rotation speed , current position ,current pulse frequency , position deviation , motor torque , motor current , analog input value etc.
Communication function	by RS232/485 to communicate with PC, modify real time parameters, monitor of servo system running status
Work environment	using/storage temp	45°C/-40°C-55°C
	using/storage humidity	40%-80%/90%no dew condensation
	no dew condensation	4.9m/s2/19.6m/s2
	altitude	1000m, above 1000m please derate to use
	air pressure	86-106kpa

Feature

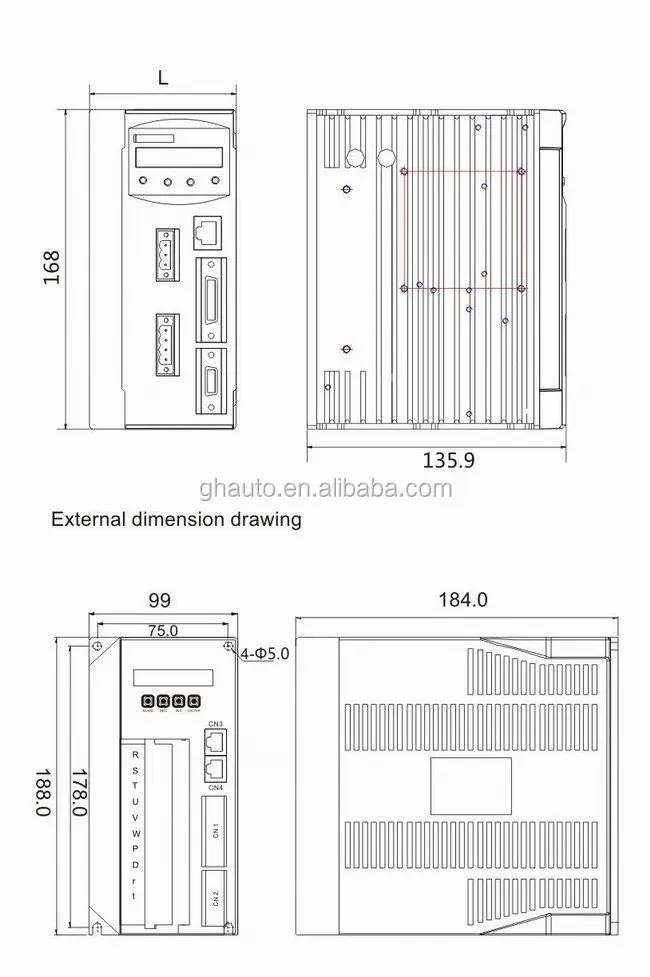

Mechanical Dimensions (mm)

Wiring Diagram

Packaging & Shipping

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients’ requirement

Delivery Detail: Normally ready goods and stock within 2-5days
