150+43kw DC&AC EV Charger with Chademo&CCS&Type 2 Connector and Ocpp for Outdoor Use

Supplier: Wenzhou Bluesky Energy Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tim Zheng
Price: $15500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Packaging Detail:	WOODEN CASE;
Port:	NINGBO;	screen:	7 inch screen;
Payment Terms:	L/C,T/T;	Protection degree:	IP54,IK10;
Network connection:	Ethernet(default), 3G and 4G are optional;	Input Voltage Range:	3 Phase, 400Vac±10%;
Supply Ability:	500.0 Set/Sets per Month;	Input Frequency:	50Hz or 60Hz;
Package Preview:	;	Environment:	indoor and outdoor;

Product detaiils:

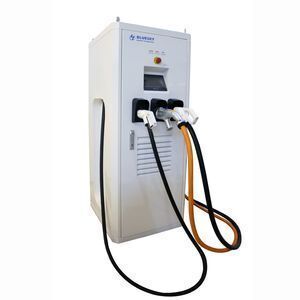

150+43kw CCS Chademo EV Charger Description

CCS CHAdeMO 50KW EV charging station is Combined with CHAdeMO and CCS Combo 2, Dual connectors, Fast charging Station.

That can be fit for all CHAdeMO and CCS Electric Cars.

SETQCY DC quick charger consists of charging modules, monitor, smart meter, HMI, communication module, charging connector, management and cabinet.

The Charger combines industry standardization with advanced charging technology to support next-generation electric vehicles. Seamless integration with several payment & billing platform solutions enable easy and secure payments via station payment terminals and RFID card.

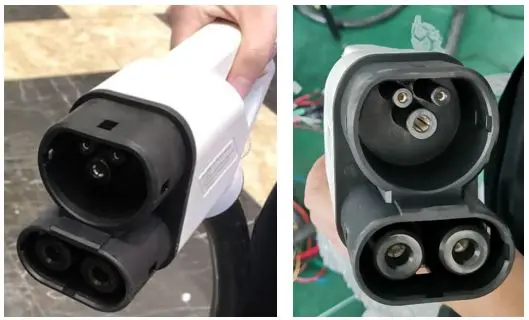

90kw CCS Chademo EV Charger Features

A.Meet 62196-2 IEC 2010 SHEET 3-Im standard

B.Housing massive structure promote protection performance

C.LED shows working condition

D.Product entire insertion and extraction force<100N

E.Protection class IP55

F.Max charging power:127.5kw

G.Mechanical life:no-load plug in/pull out>10000 times

H.Impat of external fore: can afford 1m drop and 2t vehicle run over pressure

I. Imput of external fore: can afford 1m drop and 2t vehicle run over pressure

J. Operating temperature: -30℃ ~ +50℃

K.Case Material: Thermoplastic,flame retardant grade UI94 V-0

L. Contact bush:Copper alloy,silver plarting

M.Rated current:150A

N.Operation voltage:1000V DC

O.Insulation resistance:> 20000mω(DC 1000V)

P. Terminal temperature rise: <50K

Q. Withstand voltage: 3200V

R. Contact resistance: 0.5mω max

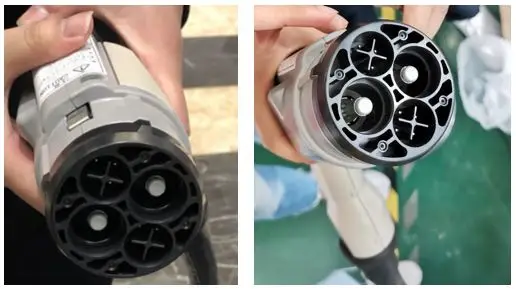

60KW CHAdeMO DC connector Features
A. Beautiful appearance, hand-held ergonomic principles, easy plug and pull.
B. Reliability materials, flame retardant, pressure resistance, wear resistance, impact resistance, high resistance to oil.
C. Pulling force when coupling: 45N

D. Resistance to impact:can withstand 1 meter drop and 2 tons of rolling pressure

E.Power:DC500V 125A

F.Signal:DC12V 2A

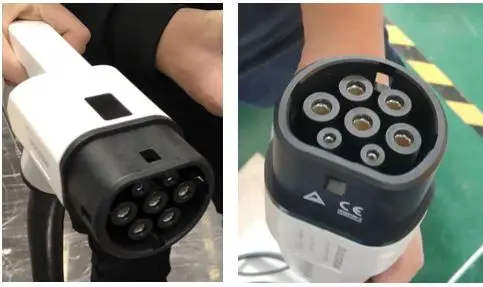

43KW AC Type2 connector Features
A. Meet 62196-2 IEC 2010 SHEET 2-IIe standard
B. Excellent protection performance, protection level IP54(working condition)
C. Mechanical life: No-load plug in/pull out>5000 times
D. Coupled insertion force: >45n<80n
E. Impat of external fore: Can afford 1m drop and 2t vehicle run over pressure
F. Operation temperature: -30℃ ~ +50℃
G. Case material: Thermoplastic, flame retardant grade UI 94 V-0
H. Contact bush: Copper alloy, silver plating
I. Rated current: 63A
J. Operation voltage: 415V
K. Insulation resistance: >1000mω(DC500V)
L. Terminal temperature rise: <50K
M. Withstand voltage: 2000V
N. Contact resistance: 0.5mω max

Technical Parameters

Line Voltage Vac		400±10%
Voltage Type		3 phase
	Frequency (HZ)	50/60Hz
AC Input	Power Factor	0.99
	Current THD value	<5%
	Input undervoltage protection value (V)	220V
DC Output	Nominal output voltage (V)	90kw+60kw+43kw
	Regulation accuracy	<0.5%
	Output Current (A)
	steady current accuracy	<1%
	Ripple Peak factor	<0.5%
	The output voltage range (V)	350-750V
	Short circuit current (A)	<30A
	Output Power	90kW
Mechanical indicators	packaging	Wooden packing
	Dimensions (WXHXD)	*
	System Weight	<200Kg
	protection grade	IP54
Operating Temperature	-20°C: to +50°C
Protective Function	Short circuit protection/ Over temperature protection / Over-voltage / Under-voltage protection/ Communication failure
BMS Communication	CAN2.0 [CHAdeMO]/ PLC [Combo]
Cooling	Forced Ventilation
Display	LCD: 3 Color LED lights - status indicator LED: 7 inch Touch Screen
User Recognition	RFID card
DC Plugs	CHAdeMO and CCS combo 2
