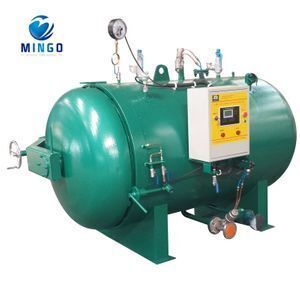

Customized small carbon fiber composite autoclave for R&D

Customized small carbon fiber composite autoclave for R&D

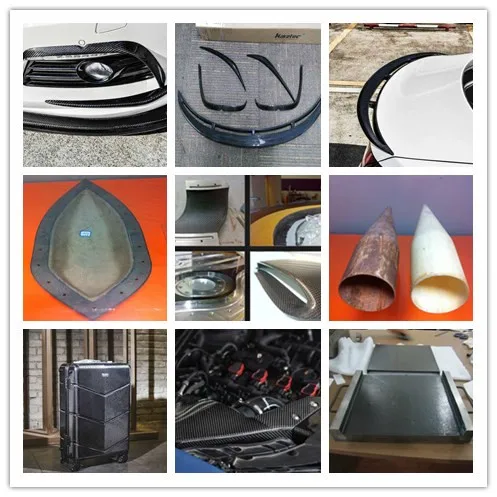

The autoclave is a key equipment for hot-pressing shaping of carbon fibers and resin matrix composites ( polyimide, bismaleimide, epoxy resin and thermoplastic resin matrices, etc. ), In fact, the quality of the product is obtained inside the autoclave reaching an increase of mechanical features up to 20-30% compared to other methods of polymerization, which do not foresee the outside pressurization of the product.

Widely used in vulcanization of rubber products, SBR thermoplastic as well as the carbonization and degreasing of bamboo, such as, rubber, cable, printing and dyeing, chemical, building materials and other industries. Mainly used in rubber products, rubber hose, rubber roller etc.It aslo can be used in the university laboratory for teaching and research.

Heating mode:

1.Heat conduction oil heating

2.Steam direct heating

3.Electrically heated air

4.Electrically heated steam

Door opening mode:

1.Power-driven

2.Hand-driven

3.Hydrodynamic-driven

4.Various types of vulcanization tank and quick-opening door safety interlocking devices can be provided separately.(Company advantage)

Sealing mode:

Inflatable silicone seal rings are used for tank door flanges which is simple and convenient to maintain and the sealing effect is obviously better than other methods with more than 2 years of service life.

Safety chain mode:

1.Pressure automatic safety interlock

2.Manual safety chain

Temperature control mode:

It uses double layer external insulation, saving thirty percent of energy consumption than ordinary insulation.
Pressure control mode:

(1) Pressure in vulcanization tank is automatically controlled by pneumatic corner valve.

(2) Set up manual valve for easy manual control.

(3) Set up another set of disc pressure gauge.

(4) The tank body is designed with two flanged open safety valves, which can be opened automatically after the designed pressure is reached.

Time control mode:

After setting working procedure, heating/keep-heating time and vulcanization time all will be automatically controlled.

Loading mode:

Two rails in tank, using national standard guide rail.

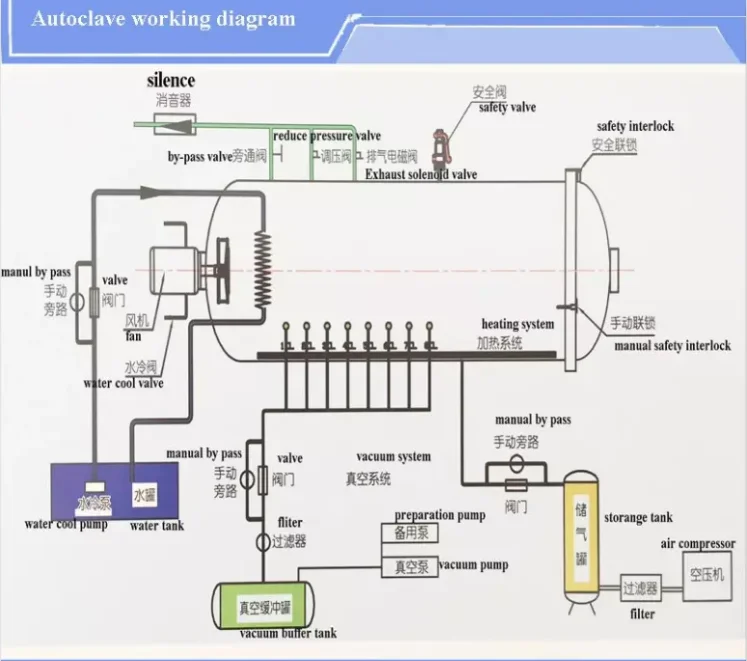

Production flow:

Brand and Material of Major Components

Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.

Q: What is your business scope?
A: There are categories such as vulcanization tank, autoclave tank, food sterilization pots, etc.

Q: What if there is something wrong with the machine within one year?
A: We have two ways to solve the problem.
a. Phone call/on-line service to solve the problem.
b. We will take video to show ’how to solve the problem’. All the problems can be solved by video guidance.

Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to install and debug, as for the cost of this trip such as ticket, visa, accommodation and labor cost  shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
