VSI Sand Crusher Sand Making Machine Manufacturer Price For Sale

Supplier: Henan Shibo Mechanical Engineering Co., Ltd.
Region: Henan, China
Contact: Mr Shibo Machinery
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Henan China;	Applicable Industries:	Construction works ,Energy & Mining;
Processed Materials:	many types of stone;	Packaging Detail:	Standard pakaging;
Application:	Sand crushing;	After Warranty Service:	Video technical support,Online support;
Max Feed Size:	50;	Install:	Engineer Guide;
Key Selling Points:	Easy to Operate;	Brand Name:	SHIBO;
Local Service Location:	None;	Condition:	New;
Motor:	DC Motor;	Supply Ability:	30 Set/Sets per Month;
Warranty:	3 years;	Showroom Location:	None;
Port:	Qingdao, Tianjing Or other China Seaport;	Color:	Customizable;
After Sale Service:	Life-long Service;	Power(W):	110-520;
Payment Terms:	L/C,T/T;	After-sales Service Provided:	Online support,Field installation, commissioning and training;
Certification:	CE/ISO/SGS;

Product Description

Range of application: Building aggregate, road fabric, cushion material, asphalt concrete and cement,etc

Applied Material: Pebble, calcite, granite, quartz, concrete, dolomite, bluestone, limestone,etc.

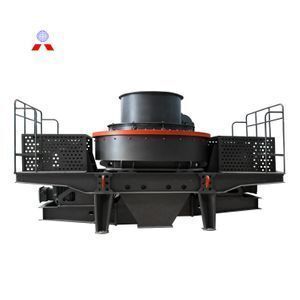

Sand making machine, also known as vsi sand crusher, is the key equipment for artificial sand making to provide high quality aggregate for building, highway, construction, concrete batching plant, etc. We also provide complete sand making production line, which includes sand making machine, sand washing machine, screen, vibrating feeder, belt conveyor, etc.

Application of VSI Sand Making Machine

1. It is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete.

2. It is also used for sand making and shaping in the field of engineering such as water conservancy, hydroelectric power, high-class highway, high-speed railway, passenger special line, bridge, airport pavement, municipal works and high-rise buildings.

3. It is used widely in many industries such as building materials, metallurgy, chemical engineer, mining, refractory materials, cement etc.

4. It is used for producing glass raw materials quartz sand and other high purity materials. pebble, limestone, granite, basalt, diabase, andesite, etc

Technical Parameters

Model	Max feeding size(mm)	Capacity(t/h)	Power(kw)
VSI-7611	35	60-180	110-150
VSI-8518	40	100-260	180-220
VSI-9526	45	150-380	264-320
VSI-1140	50	225-520	400-440
VSI-1145	50	250-600	440-520
5X7615	35	150-280	110-150
5X8522	40	240-380	180-220
5X9532	45	350-540	260-320
5X1145	50	500-640	400-440
6X1150	55	413-442	440-500
6X1263	60	545-583	600-630

Production Line

We also provide complete sand making production line, which includes sand making machine, sand washing machine, sand screen machine, vibrating feeder, belt conveyor,etc.
