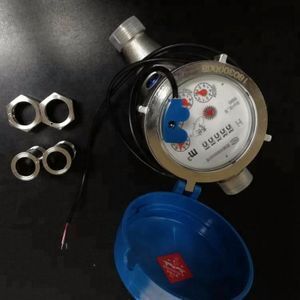

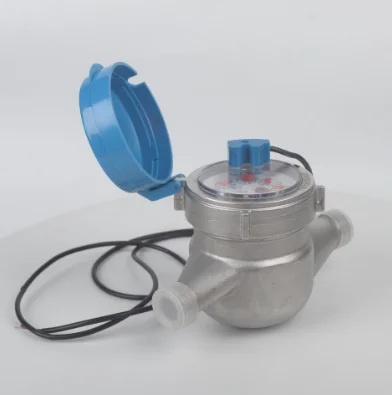

Small caliber DN15-DN40 pulse output water meter

Product details
Model Number:LXSY-15M-40M;Brand Name:Changde;
Type:Dry dial,wet dial;Color:Blue,metal gray;
Keyword:single dry reed switch;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:One piece per carton,10pcs in a outer carton.;Supply Ability:100000 Piece/Pieces per Month;
Size:DN15~DN40;Material:Cast Iron,stainless steel;
Standard:ISO 4064 ClassB;Delivery Detail:Shipping in 15days upon receipt of deposit;
Product name:Pulse output water meter;Place of Origin:Hunan China;
Port:Shanghai ,shenzhen,guangzhou;

Small caliber DN15-DN40 pulse output water meter

Nominal diameterDN15-DN40
Typewet dial,Rotating vane wheel
Transmissionsingle dry reed switch,pulse output
 10pulse/L ,100Pulse/L,for option
MaterialDuctile Cast Iron, Stainless steel



Product Features:

1 Maximum contact power 5W;

2 Maximum switching voltage50 VDC;

3 Maximum switching current 0.2A;

4 Transmission distance <120m;

5 Pulse constant100imp/m3, 1000imp/m3 ;

6 Electromechanical conversion error ±1 pulse equivalent;

7 Signal line connection:

Magnetic retention signal collector wiring diagram

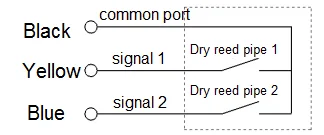

Double dry reed switch(passive magnetic protection) signal collector wiring diagram.
