Newly Stable Paper Cup Forming Machine Price Cost Service(MB-C12)

Supplier: Zhejiang Good Machinery Co., Ltd.
Region: Zhejiang, China
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Processing Type:	Cutting Machine;	After-sales Service Provided:	Free spare parts,Video technical support,Field installation, commissioning and training,Online support;
Certification:	CE;	Power(W):	11KW;
Payment Terms:	L/C,T/T,Western Union;	Weight:	2600KGS;
Product Type:	Paper Cup Machine;	Place of Origin:	Zhejiang China (Mainland);
Dimension(LWH):	276013101780MM;	Packaging Detail:	in seaworthy wooden cases for Newly Stable Paper Cup Forming Machine Price Cost Service;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	380V 3PHASE;	Production Capacity:	70-80 pcs/min;
Color:	customize;	Brand Name:	MINGBO;
Port:	ningbo;	Supply Ability:	300 Set/Sets per Year;
Warranty:	1 Year;

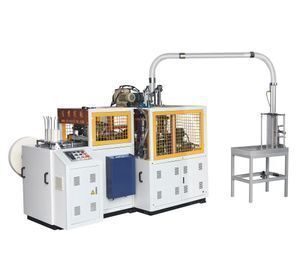

Newly Stable Paper Cup Forming Machine Price Cost Service(MB-C12)

Newly Stable Paper Cup Forming Machine Price Cost Service(MB-C12) is our economical and classical paper cup forming machine which can make cups 2-12oz either for hot drink paper cup or cold drink paper cup, coffe paper cups, tea paper cups as well as icecream paper cups.

Unique design with net guard cover, better for heat dissipation, thus ensure the machine has a longer life span.

Newly Stable Paper Cup Forming Machine Price Cost Service MB-C12,the cup side

welding by ultrasonic,which is good for both single and double

pe coated tall cup forming,especially good for tall cups,whoes height is 115mm MAX.

Newly Stable Paper Cup Forming Machine Price Cost Service main technical data:

Paper Cup Size :	2-12 oZ by change moulds
Speed:	35-45pc/min
Paper cup top diameter:	45mm -104mm
Paper cup bottom diameter:	35mm-75mm
Paper cup height:	35mm-140mm
Raw material :	150-350gsm Single or double PE paper
General power:	7kw
Electricity :	380V 3 phases
Weight:	1600KG
Measurement:	2600mm×1220mm×1700mm

medium speed paper cup forming machine features:

Paper cup bottom sealing by BANK hot air station.

It is easy to make cups of different size by changing moulds.

Cup side sealing by ultrasonic.

Double PE coating paper cups for cold drink as well as hot drink.

Automatic lubricating system to every moving cams and bearings. so that machine can running for 24 hours non stop working.

With our unique original designed single shaft bottom knurling system, this ensures the low leaking ratio and high quality of paper cups.

Sucker import from Taiwan, which can reach 100 million times’ life span.

Design with special cover, our machine is very good for heat dissipation and ensure the longer life span.

with safty guard system, good and safe for operator.

with automatic cup collecting system, automatic stacking counting and discharging.

bottom sealing by bank hot air system.

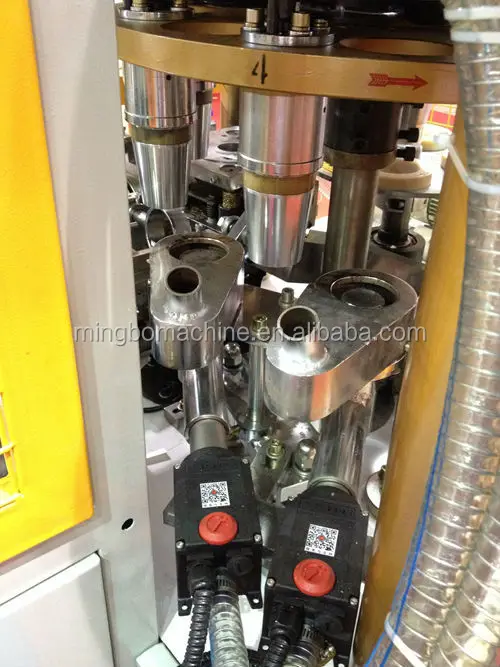

medium speed paper cup forming machine detail show:

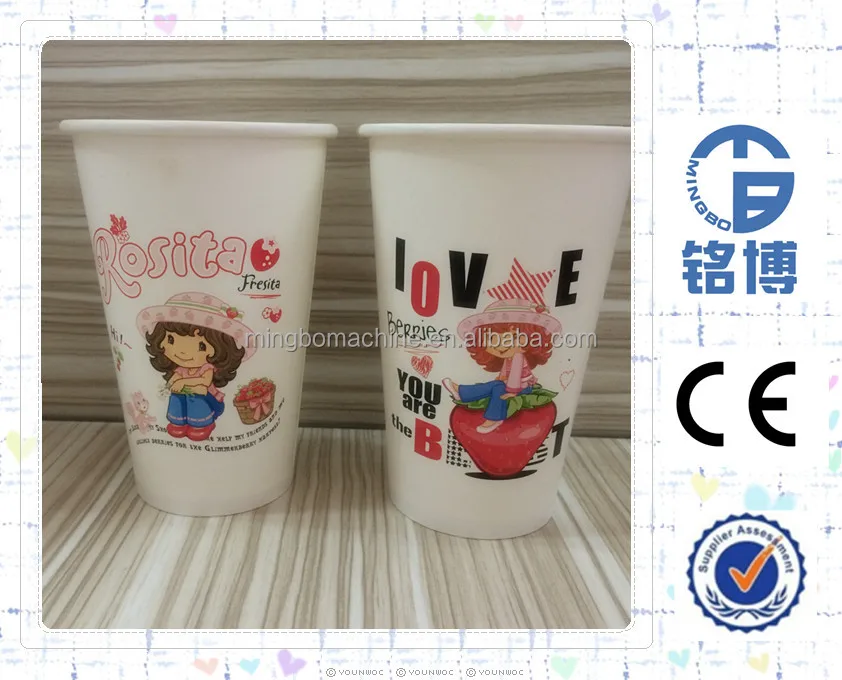

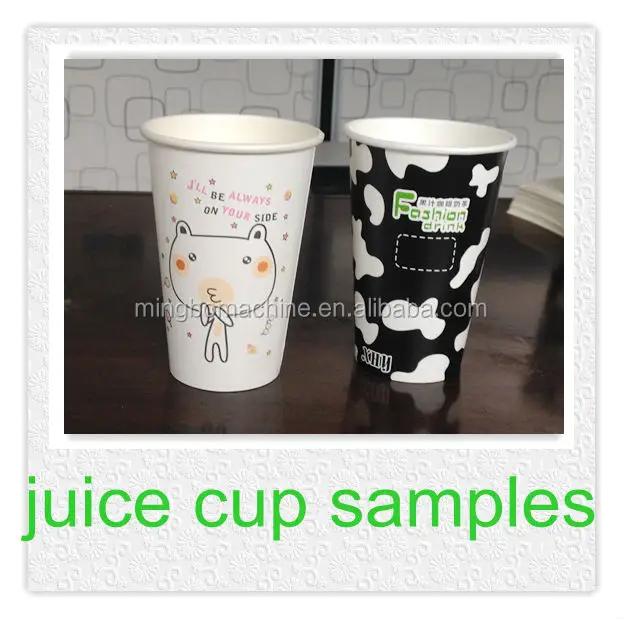

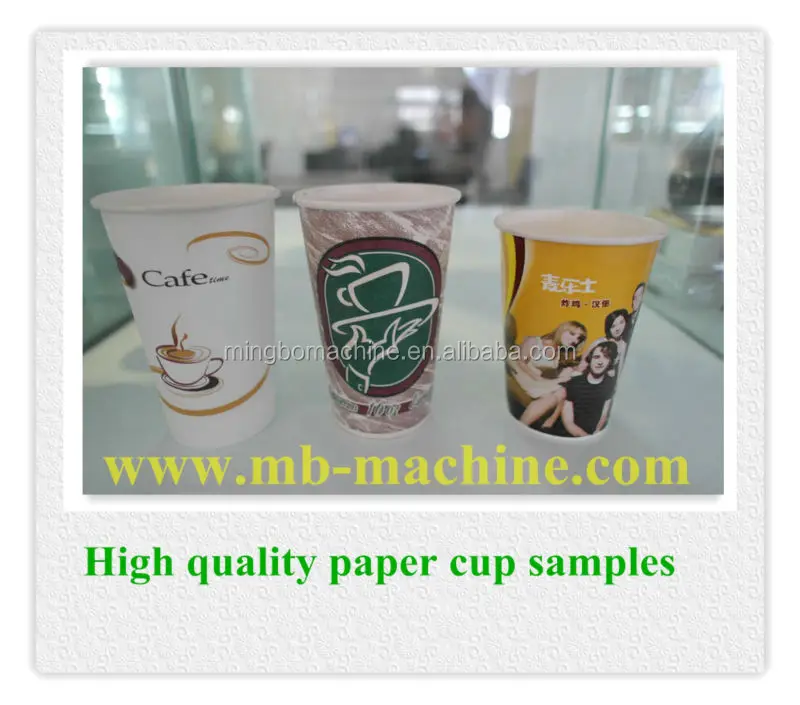

Newly Stable Paper Cup Forming Machine Price Cost Service finished products:

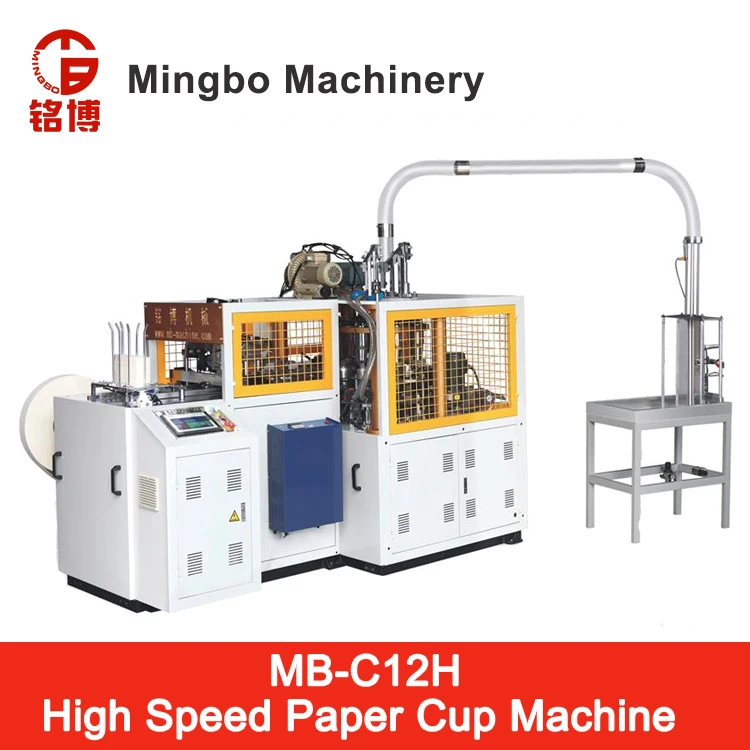

High speed automatic disposal tea cup making machine

with 80-100pcs/min(MB-C12H)

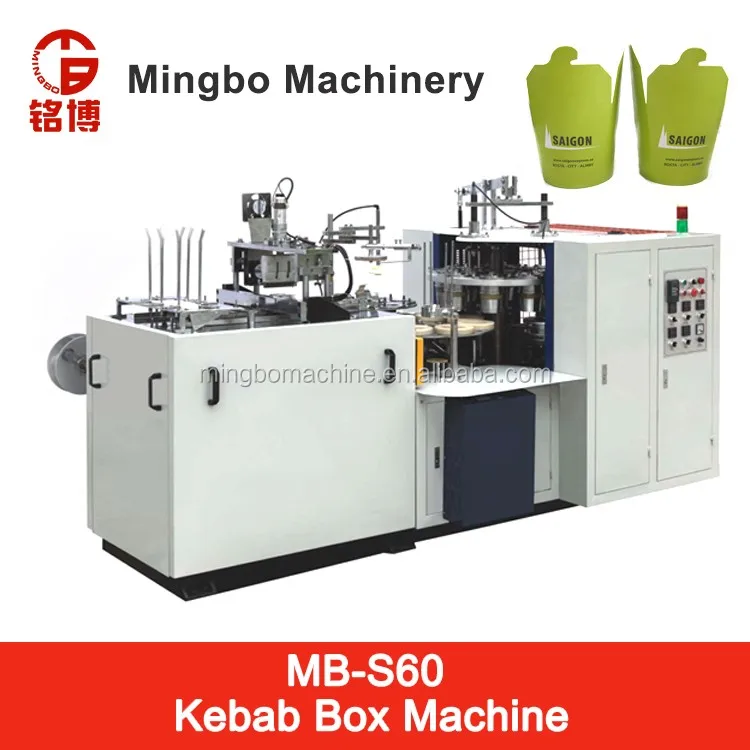

Automatic Best selling paper box folding machine(MB-S60)

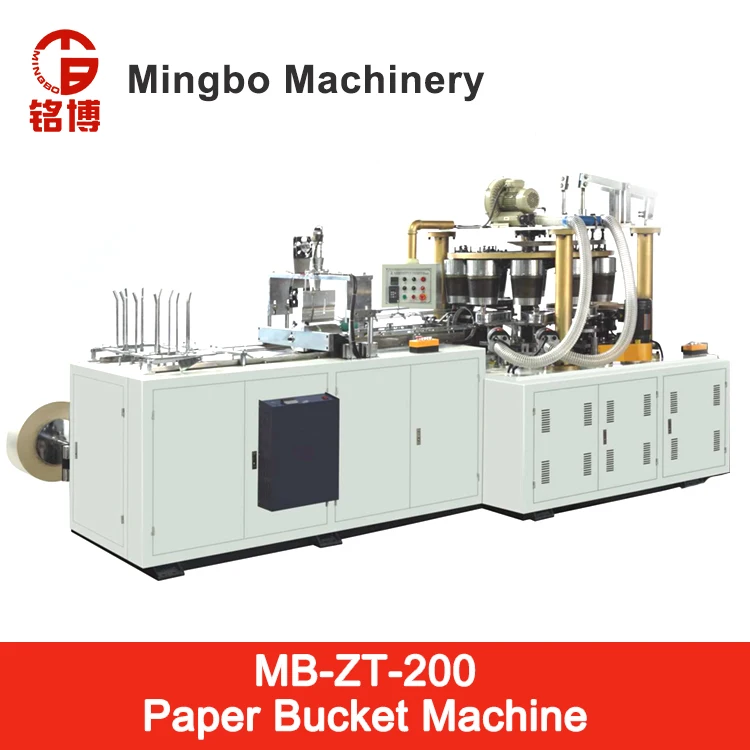

Korea popular broasted chicken paper bucket machine

(MB-ZT-200)

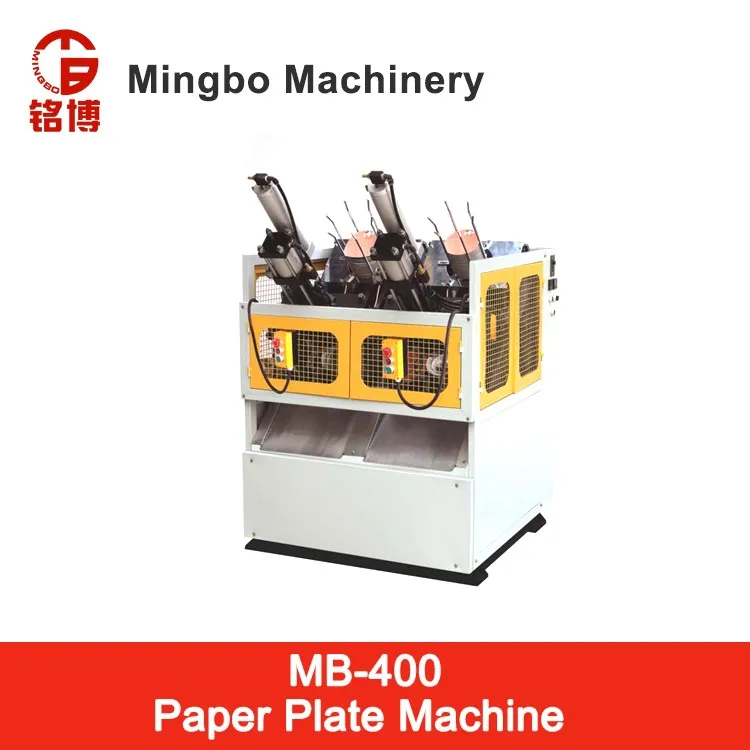

New production disposable paper plate making machine(MB-400)

More machine working video,please refer to the following online website link:

MB-C12H HIGH SPEED PAPER CUP MACHINE:https://youtu.be/U3hp4_aH6zg

MB-C12A MEDIUM SPEED PAPER CUP MACHINE WITH HEATER SEALING:https://youtu.be/xgHpGVRysKA

MB-C12 MEDIUM SPEED PAPER CUP MACHINE:https://www.youtube.com/watch?v=EjC8M8xy3Z0

ZKT-09 DOUBLE WALL CUP MACHINE:https://youtu.be/1J1Y3OBnQ2M

MB-400 PAPER PLATE MACHINE:https://www.youtube.com/watch?v=3Nia-CDqaYQ

MB-520 PAPER CUP PACKING MACHINE:https://youtu.be/pVJgOqncDbg
