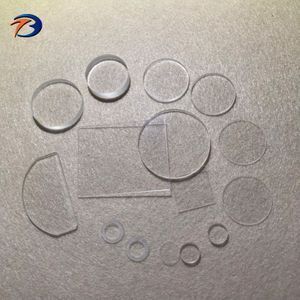

optical Sapphire crystal sheet

Supplier: Shenyang Ebetter Optics Co., Ltd.
Region: Liaoning, China
Contact: Ms Vivian Li
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Bevel:	0.1~0.3mm x 45 degree;	Model Number:	OW;
Clear aperture:	>85%, >90%;	Port:	SHENYANG AIR PORT;
Coating:	AR, BBAR or Custom;	Place of Origin:	Liaoning China (Mainland);
Diameter:	0.2-300mm;	Surface quality (scratch & dig):	60/40, 40/20 or better;
Parallelism:	+/-3' ,+/-30'';	Shape:	Round , Rectangle or Custom;
Surface accuracy:	L/10 L/2 L;	Payment Terms:	L/C,D/P,T/T,Western Union,Alipay/paypal;
Dimension tolerance:	+/-0.1mm or +/-0.02mm;	Packaging Detail:	Inner packing----special protective packing for optical products Outer packing----carton, Shock absorption material and bubble wrap;
Brand Name:	YBT;	Thickness:	0.1-100mm;
Supply Ability:	20000 Piece/Pieces per Month;

Sapphire crystal/k9 crystal glass /fused silica glass window/ quartz crystal sheet

Optical Windows

Optical windows are falt, plane parallel plates which are often used as protective barriers for electronic sensors or detectors from outside environments. When selecting windows, please consider materials, transmission, scattering, parallelism and resisitance to certain environment or mechanical properties of the substrate.

Shenyang Yibeite Optics Co., Ltd. offers standard and high precision optical windows in round,square, wedge shapes. We also support custom made optical windows in a variety of substrates, such as UV Fused silica, N-BK7, Germanium(Ge), Silicon(Si),Zinc Selenide(ZnSe). The high precision parallelism of 10 arc seconds, surface quality of 10/5 and flatness of λ/20.Single layer or multi-layer anti-reflection coatings are available.

Optical Windows

General specifications

Diameter	0.2-300mm
Thickness	0.1-100mm
Dimension tolerance	+/-0.1mm or +/-0.02mm
Surface quality (scratch & dig)	60/40, 40/20 or better
Clear aperture	>85%, >90%
Surface accuracy	L/10 L/2 L
Parallelism	+/-3' ,+/-30''
Bevel	0.1~0.3mm x 45 degree
Coating	AR, BBAR or Custom

The wavelength of general optical windows' substrate( without coating)

Materials characteristics

Item	B270	CaF2	Ge	MgF2	N-BK7	Sapphire	Si	UV Fused Sillca	ZnSe	ZnS
Refractive index(nd)	1.523	1.434	1.003	1.413	1.517	1.768	3.422	1.458	2.403	2.631
Coeffcient of dispersion(Vd)	58.5	95.1	N/A	106.2	64.2	72.2	N/A	67.7	N/A	N/A
Density(g/cm3)	2.55	3.18	5.33	3.18	2.46	3.97	2.33	2.20	5.27	5.27
TCE(μm/m℃)	8.2	18.85	6.1	13.7	7.1	5.3	2.55	0.55	7.1	7.6
Soften Temperature(℃)	533	800	936	1255	557	2000	1500	1000	250	1525
Knoop hardness(kg/mm2)	542	158.3	780	415	610	2200	1150	500	120	120

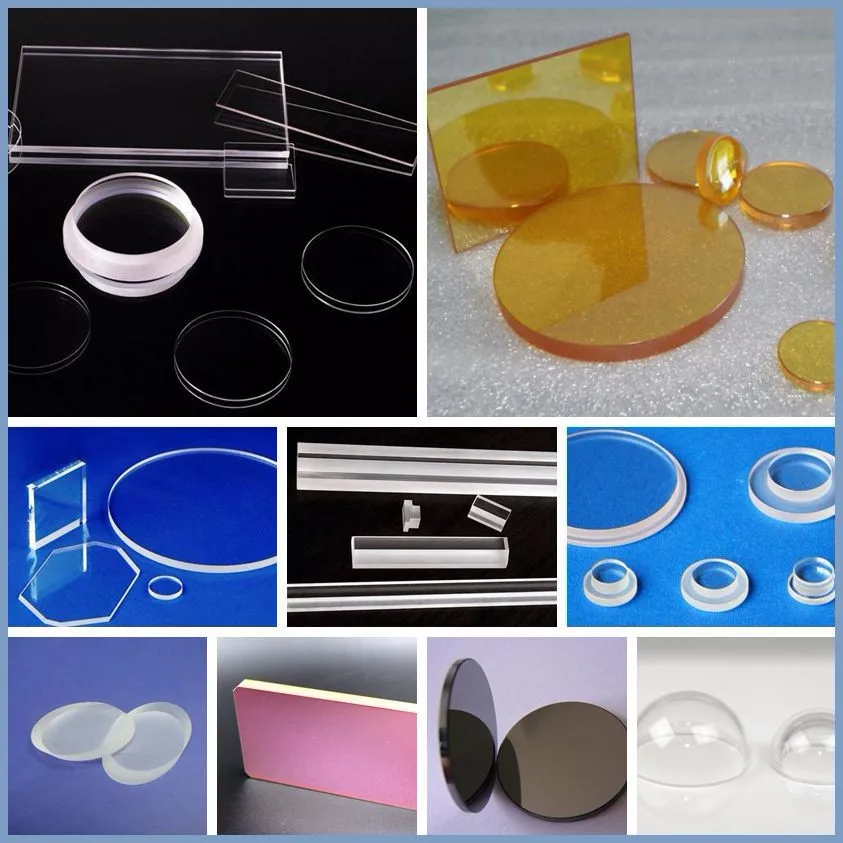

Optical windows finished products

Company Information

YBT Optics is a professional manufacturer of precision optical components and optical lenses.Advanced processing equipment and complete production sysytem are effectively control production process and ensure product quality. If you want to get more information, please click: Shenyang Yibeite Optics Co., Ltd.

YBT Optics' products

Optical Windows
BK7 Windows	Fused silica Windows	Sapphire Windows
Silicon Windows	Germanium Windows	CaF2 Windows
BaF2 windows	ZnSe Windows
