Rotating speed: | 6000rpm; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
Material: | 304 Stainless Steel or custom; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Type: | Superfine grinder, micronizer,utralfine pulverizer; | Brand Name: | WKS; |
Feature: | High efficiency, easy operation, cost effective, good quality; | Condition: | New; |
Package Preview: | ; | Packaging Detail: | Wooden case(fumigation free); |
Port: | SHANGHAI OR OTHER; | Model Number: | WKS-G-15; |
Place of Origin: | Henan China; | Application: | pharmaceutical, chemical, food, minerals,etc; |
Warranty: | 1 YEAR; | After-sales Service Provided: | Field installation, commissioning and training,Engineers available to service machinery overseas; |
Supply Ability: | 20 Set/Sets per Month; | Automatic Grade: | Automatic; |
Production Capacity: | 10-200kg/h; | Keywords: | superfine,utralfine; |
Function: | Superfine powder grinder, micronizer,utralfine pulverizer; | Weight: | 850kg; |
Capacity(kg/h): | 10-200kg/h; | Feeding size: | ≤10mm; |
Certification: | CE,ISO; | Power: | 13.5kW; |
Voltage: | 220v or 380v or custom; | Output size: | 80-320mesh; |
Dimension(L*W*H): | 5410*1660*2500mm; |
Commerical sesame superfine powder grinder micronizer with air classifier
Technical parameter
Specification and model | WKS-G-15 | WKS-G-18 | WKS-G-36 | WKS-G-60 |
Productive capacity (kg/h) | 10-200 | 20-450 | 60-1000 | 1000-1500 |
Size of raw material to be fed (mm) | <10 | <12 | <15 | <18 |
Size of raw material to be discharged (mesh) | 80-320 | 80-450 | 80-450 | 80-450 |
Total power (kw) | 13.5 | 17.5 | 38 | 65 |
Main revolution (r/min) | 6000 | 5700 | 5000 | 4500 |
Overall dimensions (L*W*H)(mm) | 5410*1660*2500 | 5500*1800*3100 | 9000*2200*4000 | 9000*2700*5280 |
Weight(kg) | 850 | 980 | 1500 | 1650 |
Product Introduction
WKS series of ultra-fine grinding unit composed of the host, auxiliary, electronic control box, with wind selection, no screen, no mesh, uniform size, fineness of stepless adjustment.The production process is continuous. No temperature rise during grinding operation, suitable for a variety of heat-sensitive materials, particularly suitable for grinding fibrous material and material with a certain grease.
Working Principle

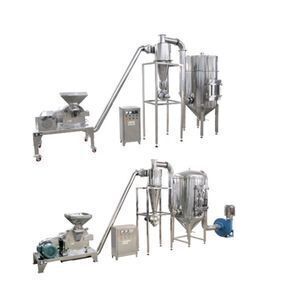

The machine has crushed host, cyclone separator, pulse dust box induced draft fan and other components. Material from the hopper into the crushing chamber, through the high-speed rotating hammer crushing, crushing fineness adjustable grading knife and grading plate distance to achieve the required fineness, crushed good material by centrifugal force and induced draft fan into the Cyclone, then, through the off fan discharge, dust into the pulse dust box, filtered through the filter cartridge recycling.
Application
The machine according to "GMP" standard design, the whole machine is made of 304 stainless steel, grinding process without dust flying. Its comprehensive performance has reached the international advanced level, the machine is widely used in pharmaceutical, chemical, food, minerals (such as: traditional Chinese medicine., Food., Chemical., Health., Roots.), leaves, nuts, corn, pepper, wheat, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic, sugar, saccharin, shrimp, pumpkin powder, seasoning).
