Place of Origin: | Henan China; | Grind typeTurbo: | gear disc, Hammer,Dump Type; |
Packaging Detail: | Wooden case(fumigation free); | Type: | Spice Machine; |
Dimension(L*W*H): | 800*850*1600mm(Without dust removal system); | Production Capacity: | 200-1000kg/h; |
Material: | 304 Stainless Steel; | Port: | SHANGHAI OR OTHER; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Condition: | New; |
Automatic Grade: | Automatic; | Warranty: | 1 Year; |
Fineness size (mesh): | 2-120; | Capacity(kg/h): | 200-1000; |
Dimension (mm): | 1450*850*1750(With dust removal system); | Power: | 11kW; |
Shaft speed (r/min): | 3200; | Brand Name: | WKS; |
After-sales Service Provided: | Field installation, commissioning and training,Engineers available to service machinery overseas; | Application: | food,fruit,coffee powder,flour,etc; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Weight: | 450kg; |
Certification: | CE,ISO; | Voltage: | 220v or 380v or custom; |
Supply Ability: | 100 Set/Sets per Quarter; | Model Number: | WKS-50B; |
Feature: | High efficiency, easy operation, cost effective, good quality; | Function: | cutting,gringding,pulverizing,crushing; |
Package Preview: | ; |

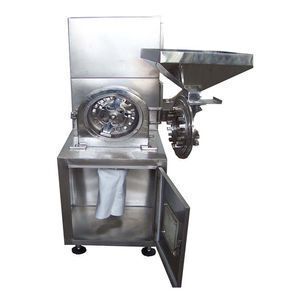

Universal grinding machine spice crusher mill pulverizer for hemp powder
Technical paremeter
Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B | WKS-80B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 400-2000 |
Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 | 2000 |
Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
Motor power(kW) | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
Dust removal motor (kW) | 1.5 | 1.5 | 1.5 | 2 | 2.2 |
|
Weight (kg) | 180 | 260 | 360 | 450 | 550 | 850 |
Dimension (mm) (Without dust removal system) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 | 1100*950*1960 |
Dimension (mm) (With dust removal system) | 1100*600*1650 | 1200*700*1650 | 1350*800*1700 | 1450*850*1750 | 1550*1000*1750 | custom |
Product Features
1, This machine utilizes the relatively high-speed operation between the movable chain disc and the fixed one, so that the materials are crushed by the impact of the gear plate, the friction and collision of the materials with each other.
2, Crushed material can be discharged directly from the grinding chamber through the discharge port, normally collected by a long cotton bag.
3, The crushed size is up to change of different mesh sieves.
The structure of the machine is simple and sturdy, operation is stable, grinding the material quickly and evenly, the effect is good.
4, The machine is made of food grade stainless steel. All the slots in the housing (crushing trough) are machined by precision machining so as to achieve smooth surface and easy cleaning.
Application
This machine is extensively used in pharmaceutical,chemical,food and pesticide industries for pulverizing dry brittle materials.
