Industrial high speed rotary atomizer price liquid milk whey egg powder liquefied petroleum gas centrifugal spray dryer dryer

Supplier: Henan Workers Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Vic Zhang
Price: $7500.00 /set
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	Henan, China	Certification:	EU standard
Video external inspection:	if	Core components:	Pump, Gear, Motor, PLC
Single package size:	50X50X50 cm	Dimensions (LWH):	custom
Marketing Type:	Popular products	Core Components Warranty:	1 year
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Water evaporation:	5kg/hour
Showroom location:	not any	Inlet temperature:	150-350℃
brand:	WKS	type:	spray drying equipment
Health status:	new	Evaporation (kg/h):	5
Heat source:	Electricity, steam, gas, etc.	Warranty:	1 year
heating method:	electro-thermal	Weight (kg):	1000
Mechanical test report:	if	Material:	SUS304
Main selling point:	high productivity	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
Dry powder recovery rate:	≥95%	Voltage:	custom
output temperature:	60-120℃	After-sales service provided:	Online support, video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services
weight:	custom	Sales unit:	single product
Packaging Preview:		Machine material:	304 stainless steel
product name:	Centrifugal Spray Dryer	Local service location:	not any
strength:	custom	Gross weight per piece:	50.000 kg
Raw materials:	Materials in liquid form, extracts, extracts	Packaging Details:	Wooden box or directly into the container
application:	Food and beverage, chemical, pharmaceutical, etc., pharmaceutical processing, chemical processing, plastic processing, food processing

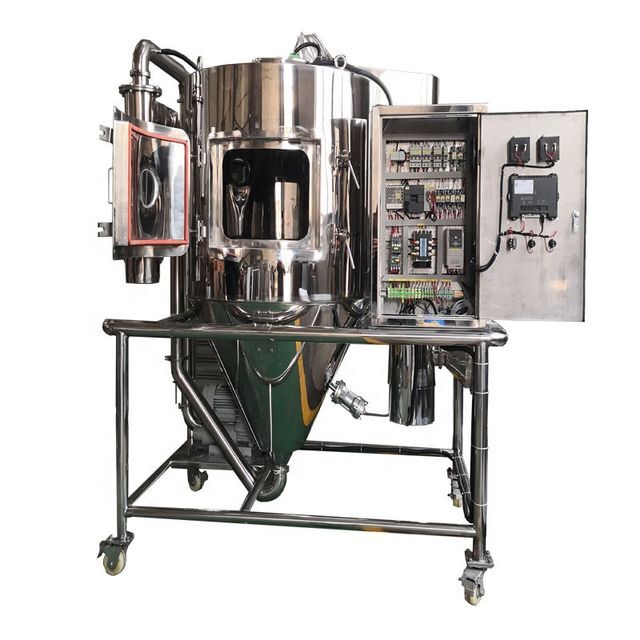

Industrial centrifugal spray dryer

The spray dryer is one of the continuous atmospheric dryers. The liquid material is sprayed with a special device to form a mist and dried in contact with hot air. For drying some heat-sensitive liquids, suspensions and viscous liquids such as milk, eggs, tannins and pharmaceuticals. Also used for drying fuels, intermediates, soap powder and inorganic salts.

High-speed drying: After atomization, the surface area of the liquid material is greatly increased, and 95%-98% of the water in the hot air can be evaporated instantly, and the drying time only takes a few seconds, especially for heat-sensitive materials.

The product achieves good homogeneity, fluidity and solubility, as well as purity and quality. The production process is simplified and the operation control is convenient. For liquid materials with a moisture content of 40-60% (special materials can reach 90%), they can be dried into powder products at one time. After drying, there is no need for grinding and screening, which reduces production processes and improves product purity. Product particle size, bulk density and moisture can be adjusted by changing the operating conditions within a certain range, and the control and management is very convenient.

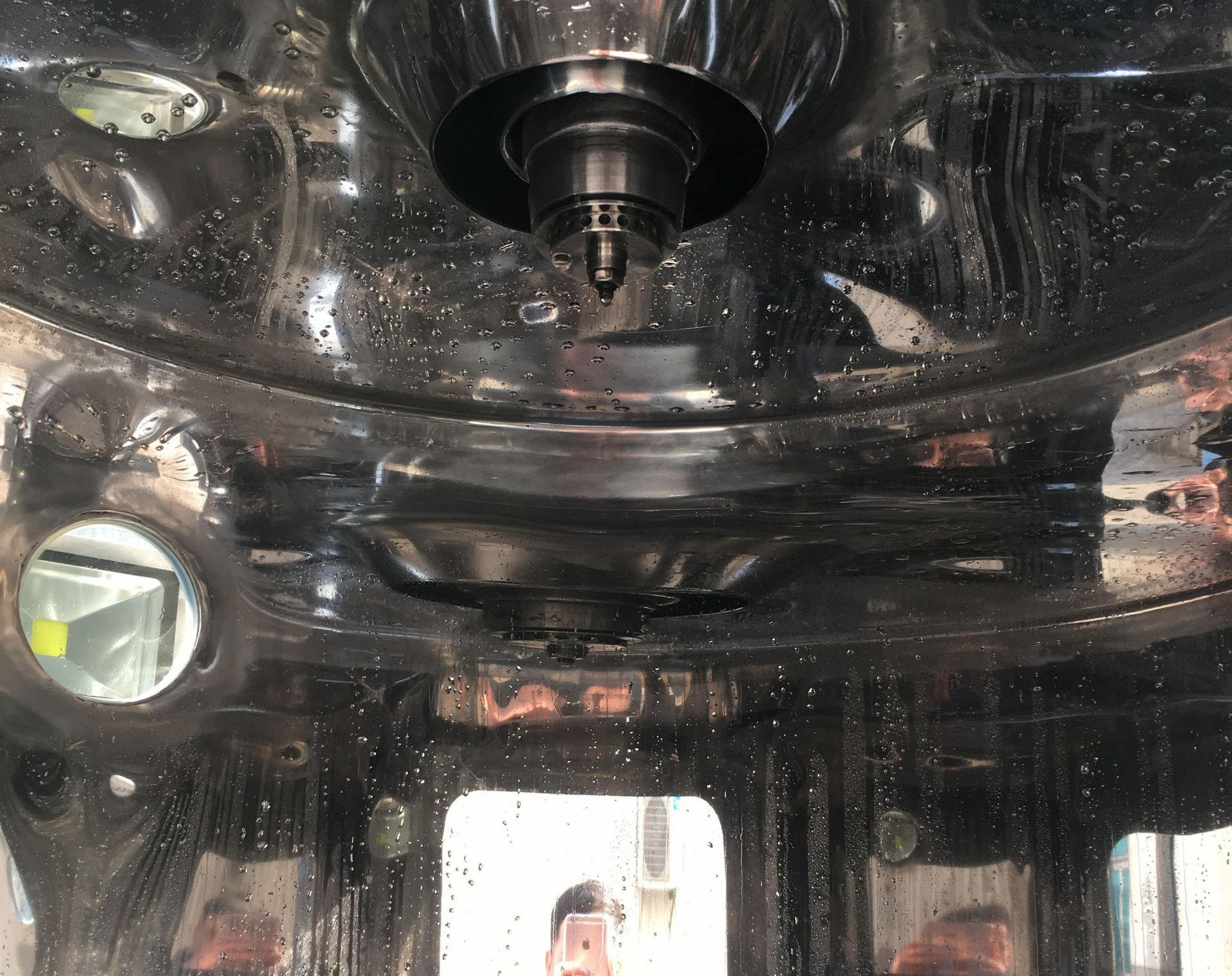

sprayer

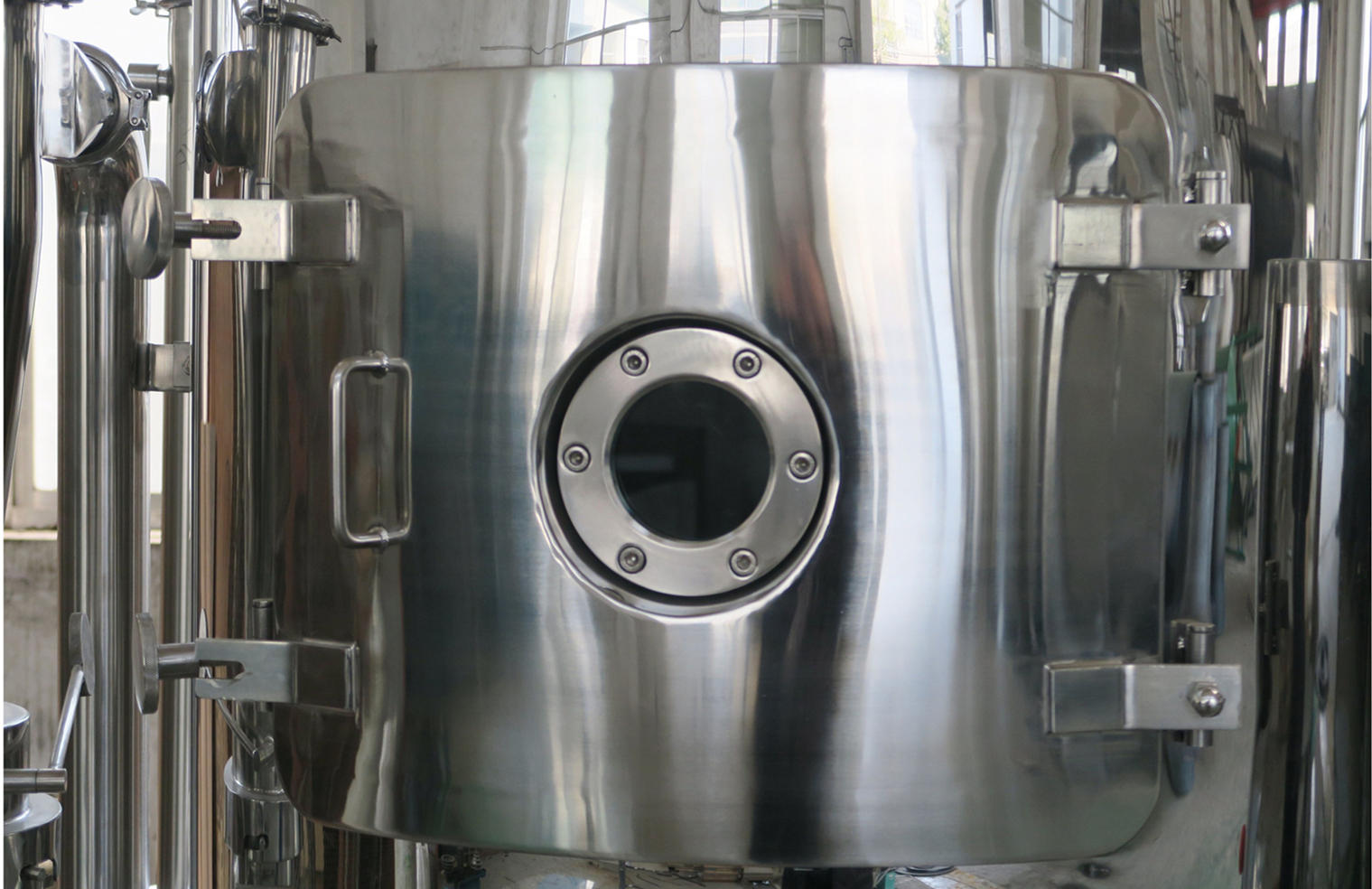

Observation window

control box

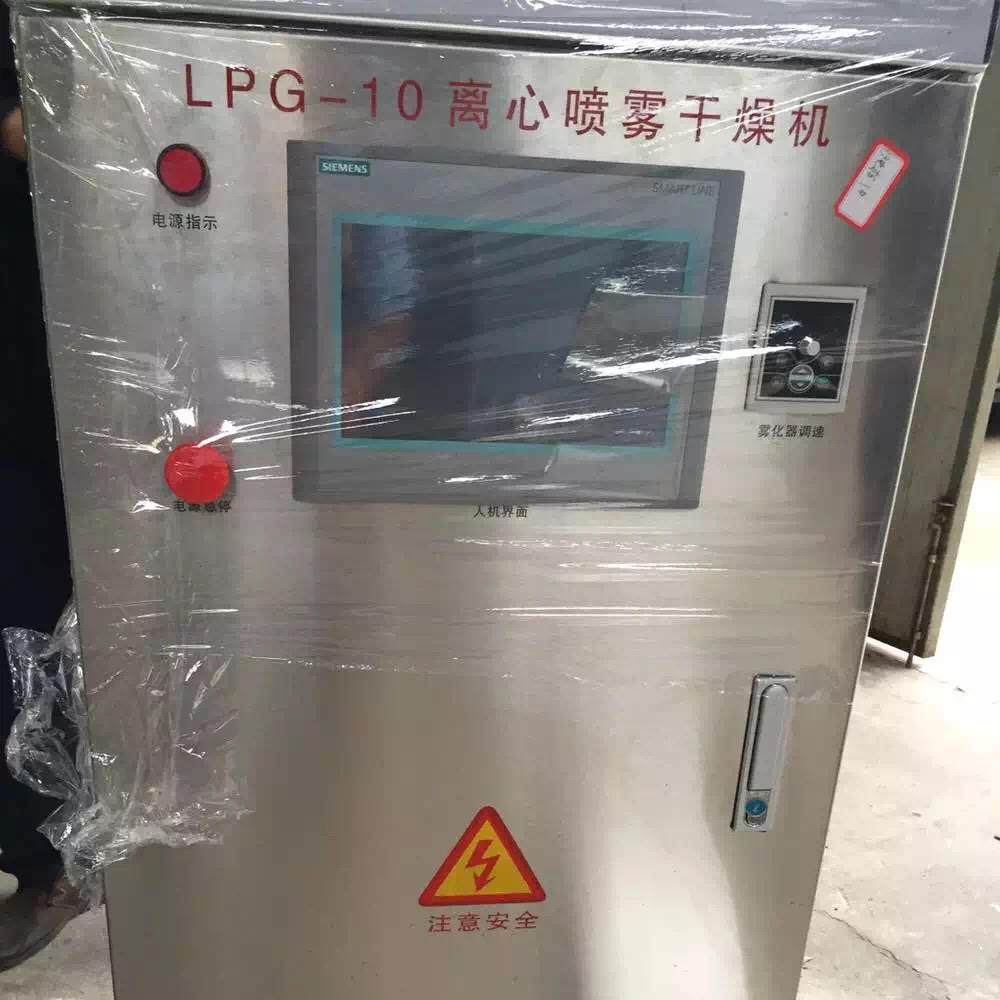

PLC touch screen control panel

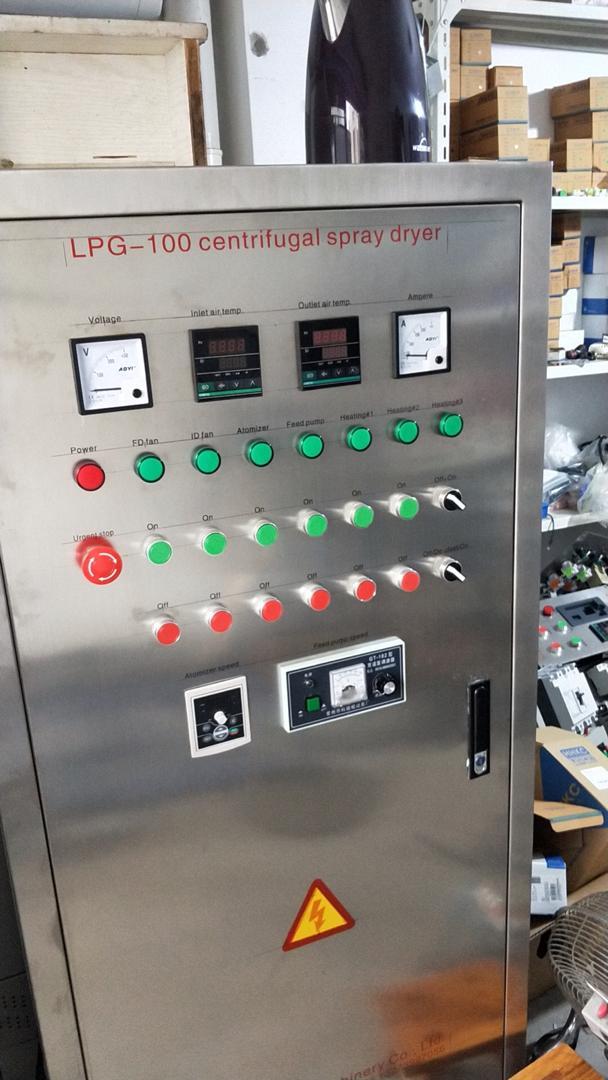

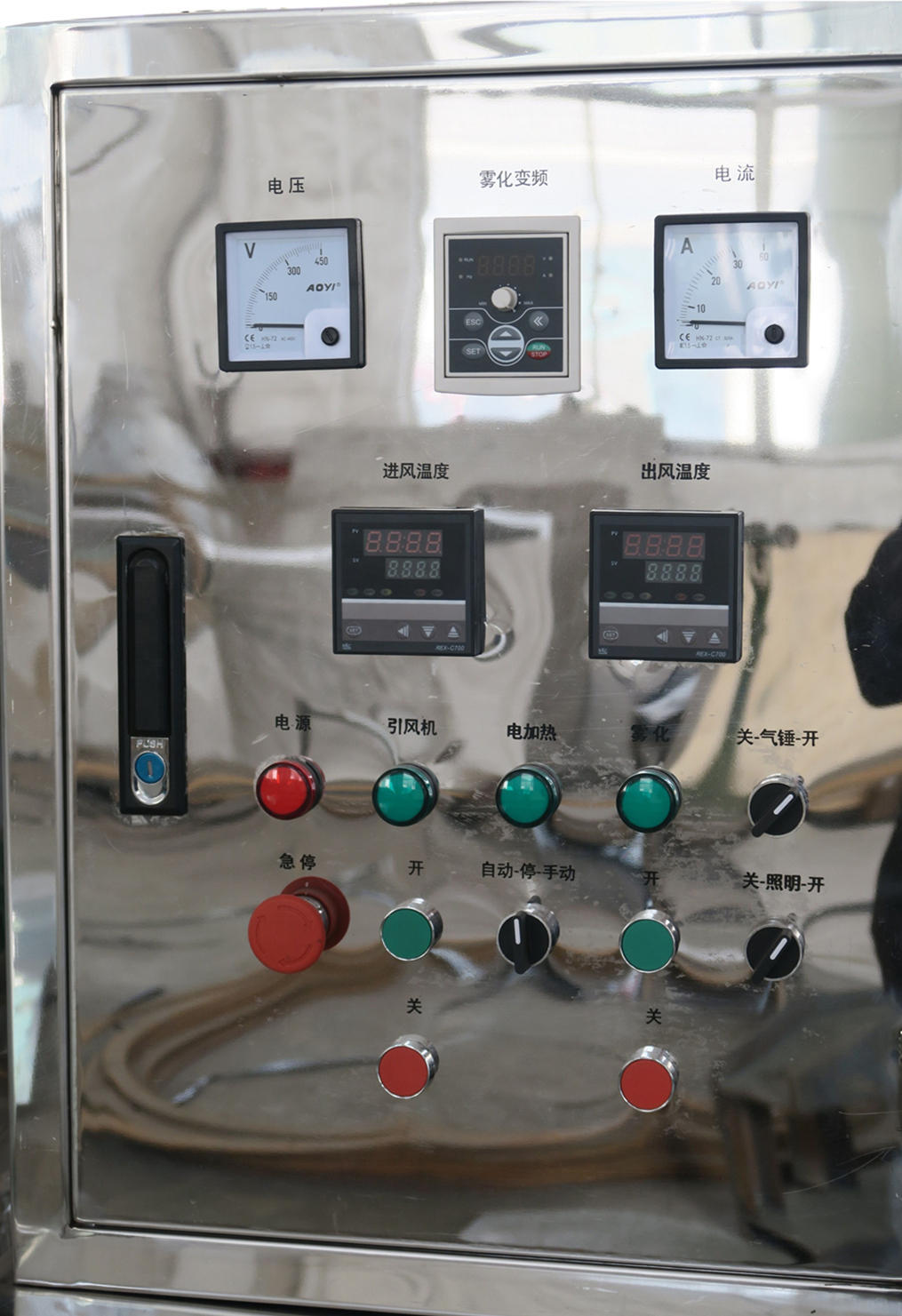

button control panel

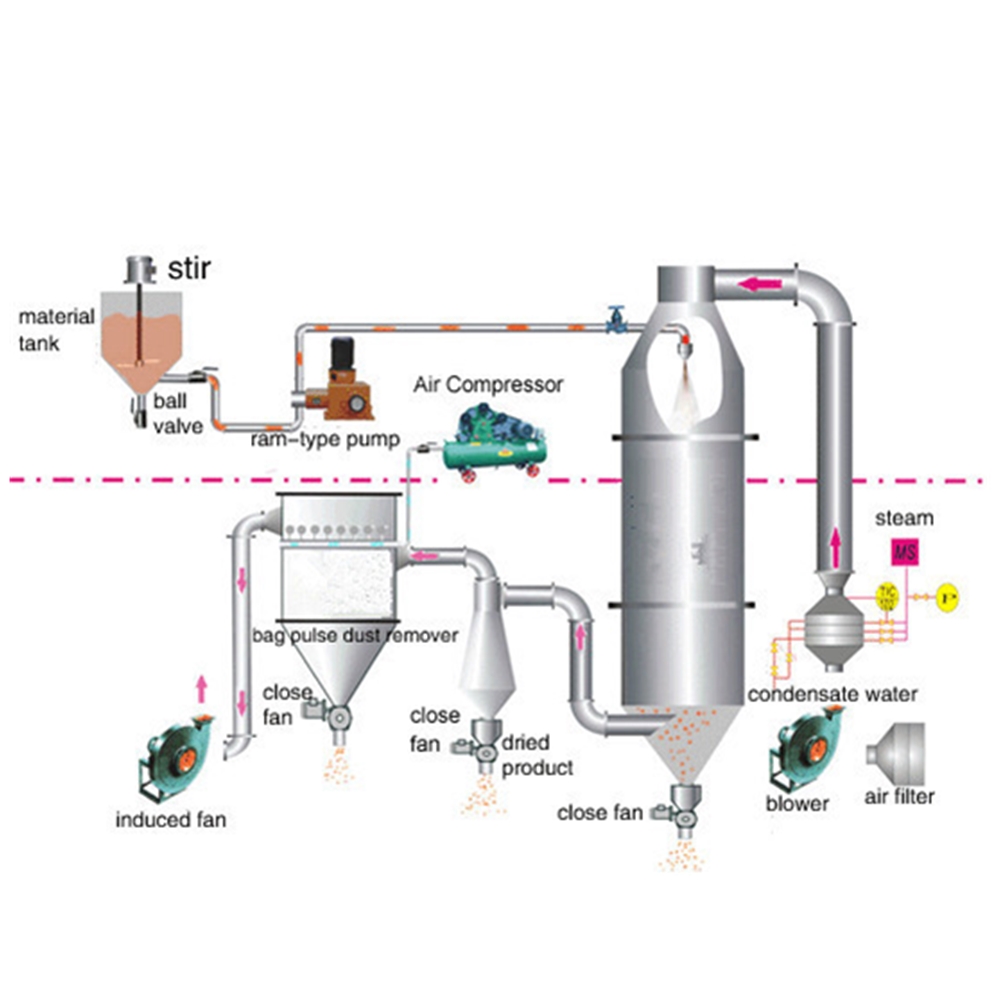

working principle

After being filtered and heated, the air enters the air distributor at the top of the dryer, and the hot air enters the spiral evenly into the drying chamber.
The feed liquid is sprayed into finely atomized droplets through the high-speed centrifugal atomizer at the top
The tower body can be contacted with hot air in a very short period of time and dried into a finished product. The finished product is continuously discharged from the bottom of the drying tower and the cyclone separator, and the exhaust gas is discharged by the induced draft fan.

technical parameter

Project丨Model	LPG-5	LPG-25	LPG-50	LPG-150	LPG-200~2000
Inlet temperature °C	140~350	140~350	140~350	140~350	140~350
Outlet temperature °C	80~90	80~90	80~90	80~90	80~90
maximum. Water evaporation kg/h	5	25	50	150	200~2000
Transmission form Centrifugal Nebulizer	compressed air transmission	Mechanical transmission	Mechanical transmission	Mechanical transmission	Mechanical transmission
Maximum speed (rpm)	25000	18000	18000	15000	8000-15000
Atomizer diameter (mm)	50	120	120	150	180-240
heat source	Electricity	Electricity, Steam, Natural Gas, LPG
maximum. Electric heater power (kw)	9	36	72	99
Dimensions (LWH) (m)	1.80.932.2	32.74.26	3.53.54.8	5.547
Dry powder recovery rate (%)	≥95%
Note: The amount of water evaporation is related to the material characteristics and the hot outlet temperature.

User Provided Information

◎Name and physical properties of materials and liquids: solid content (or water content), viscosity, surface tension, PH value. ◎Dried powder capacity, allowable residual moisture, particle size and allowable maximum temperature. ◎Production and daily working hours. ◎Available energy: available steam pressure, available electric capacity, available coal, oil and gas. ◎Control requirements: Whether the inlet and outlet temperature needs to be automatically controlled. ◎Powder collection requirements: whether to install a bag filter, environmental protection requirements for exhaust emissions. ◎Other special requirements.

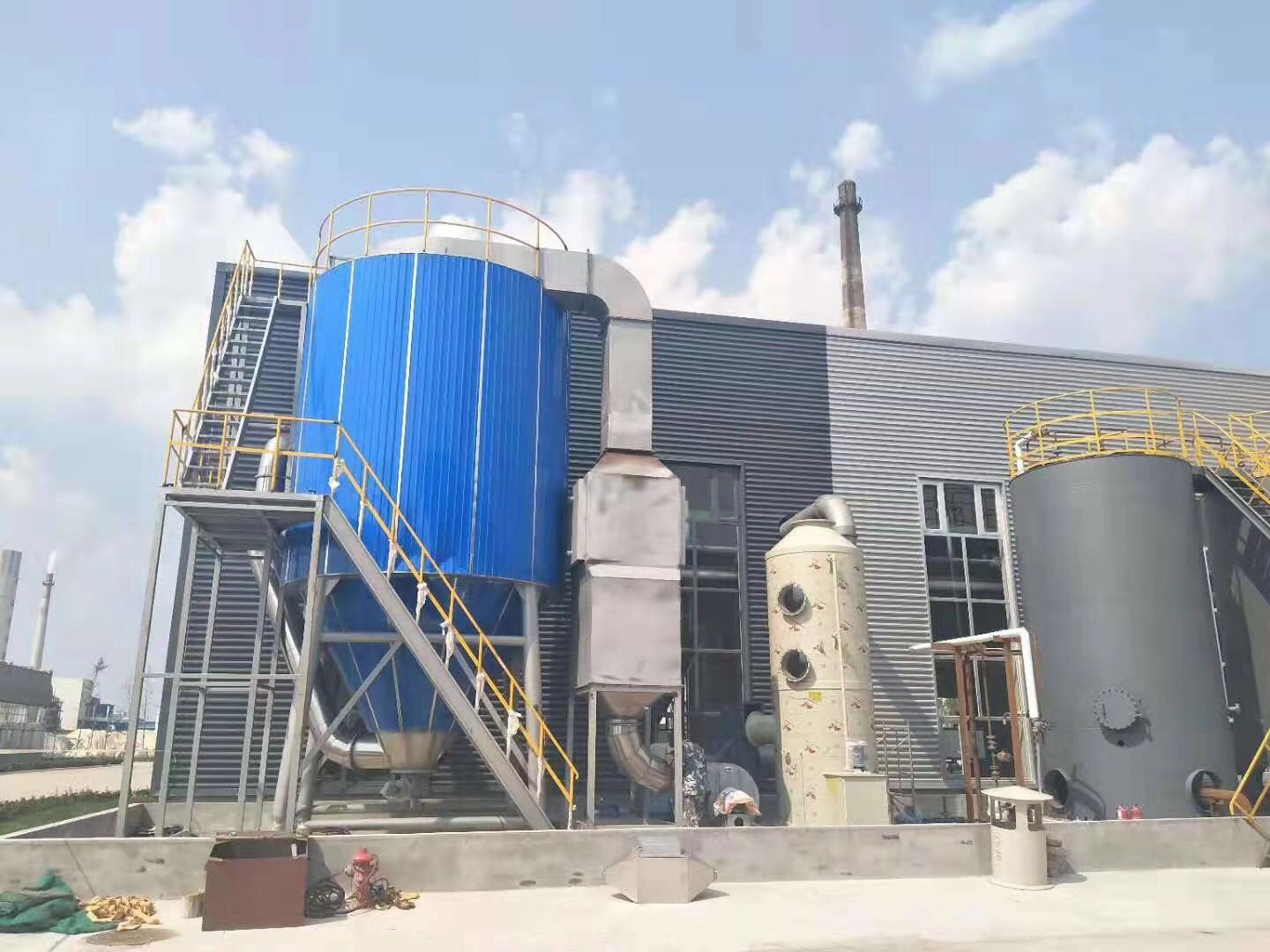

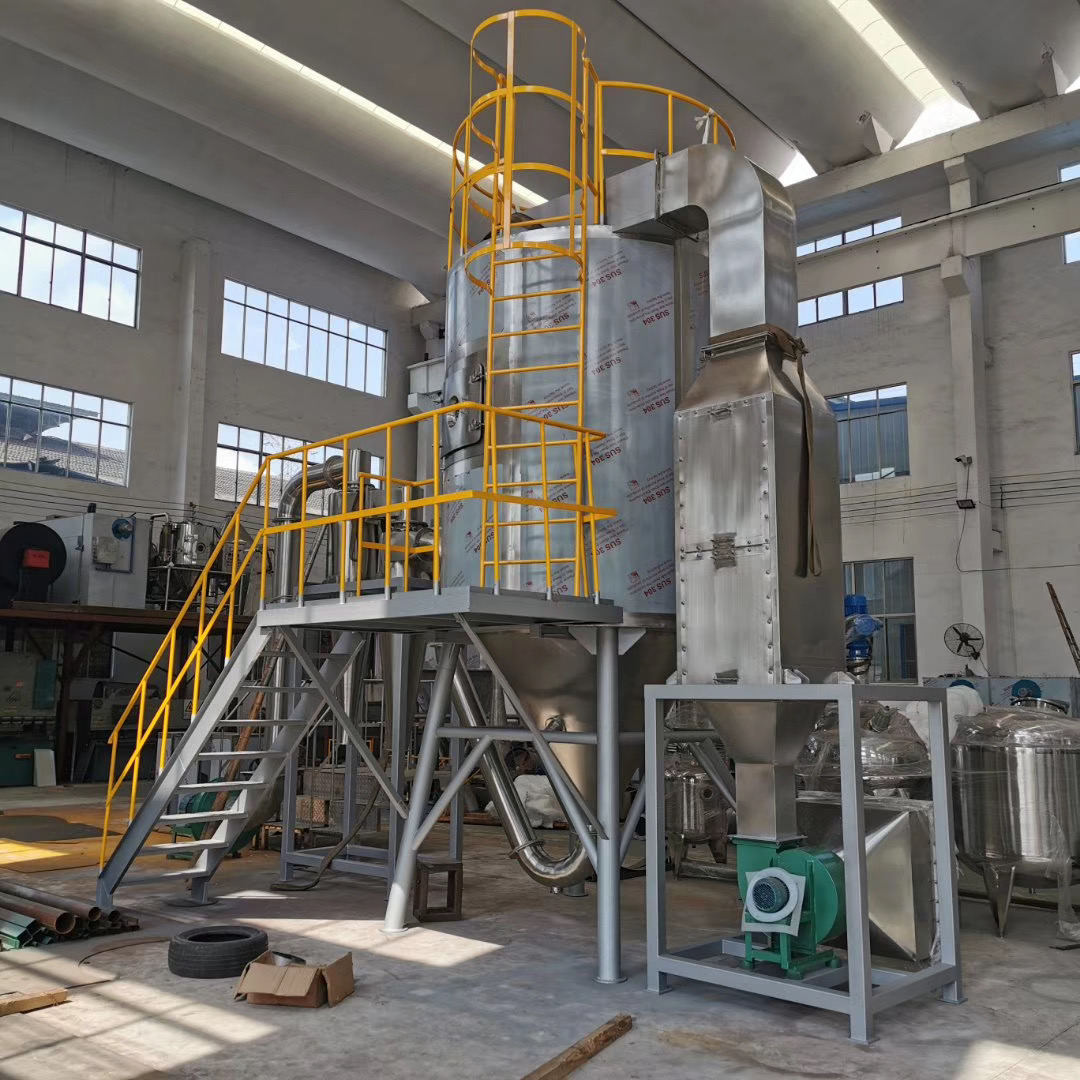

large model
