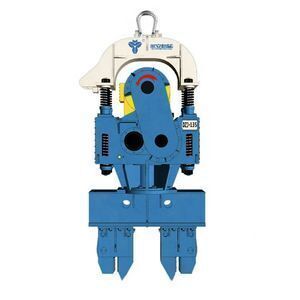

DZJ200B Used Electric Vibratory Concrete Piling Hammers Pile Driver for Foundation

Product details
Condition:Used;Make:YONGAN;
Supply Ability:50 Set/Sets per Year;Packaging Detail:Hammer in shrink film, accessories and control cabin in wooden box. Loaded in a whole container.;
Driving Force:0-1592kn;Package Preview:;
Piling Speed(m/min):depend on soil condition;Eccentric Moment:2388Nm;
Efficiency:200KW;Year:2012;
Brand Name:Yongan;Applicable Industries:Construction works ;
Weight:11500kg;After-sales Service Provided:Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Payment Terms:L/C,T/T;Moter Power:200kw;
Place of Origin:Zhejiang China;Port:Ningbo;
Certification:ISO9001/CE;Warranty:1 YEAR;
Dimension(L*W*H):2200*1700*3500mm;
Product Description

Product Application

Electric vibratory hammer DZJ200B is suitable to drive and extract piles for different geological situation except the hard rock layer. For example, pre-made concrete pile, cast-in-place concrete pile,  concrete expanded bore pile, lime pile, stone column. Beside, it's widely used in cofferdam,  trestle work, offshore working platform, and also wind mill single pile or group pile.

Main Features

With more than 30 years' experience and improvement, the quality of Yongan electric vibratory piling hammers is ensured with following features:
1, Shock-proof motor
2, Reducer casing
3, FAG bearing, 3 layers combination, very stable and won't crack during working
4, Simens, Schneider brands for electric components
5, Italian brand for hydraulic oil pump
6, Improved magnetic oil stain deposit system
7, Noise proof design with rubber pad on and under the spring
8, Normal frequency and variable frequency system Zero current start mode, it solves the problem of load start, lower requirement for the power generator. Frequency change model could adjust according to defferent soil layer frequency. It can save time, energy and cost.

Specification for Electric Vibro Hammer DZJ200B
Motor Power
200kw
Eccentric Moment
2388Nm
Driving Force
0-1592kn
Speed
0-780r/m
Amplitude
0-16.7mm
Max Line Pull
588kn
Size
2200*1700*3500MM
Weight
11500kg
Delivery time
45days
Generator Power
450kw
Crane capacity
120T
Certifications

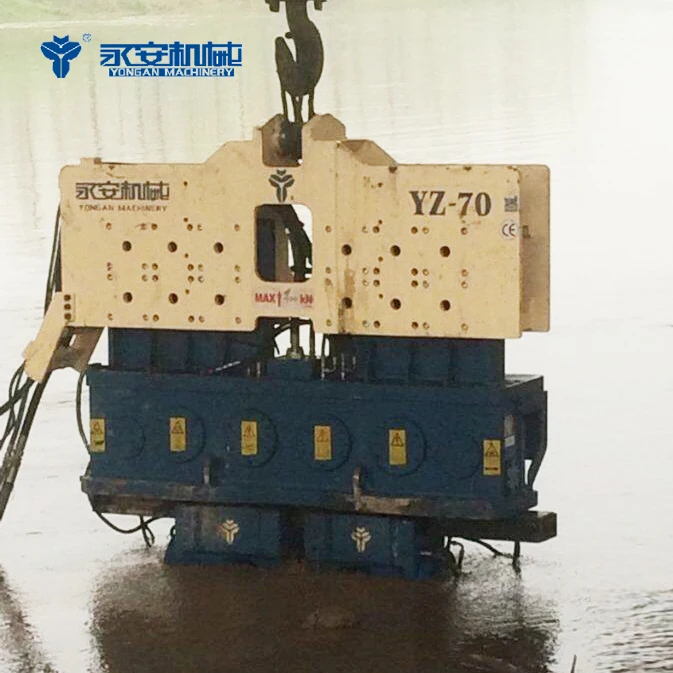

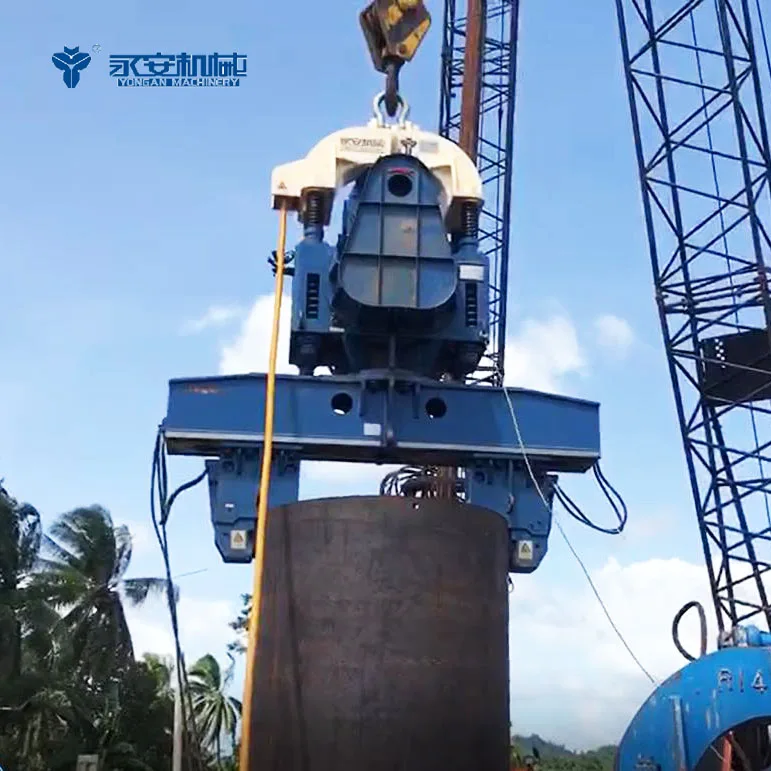

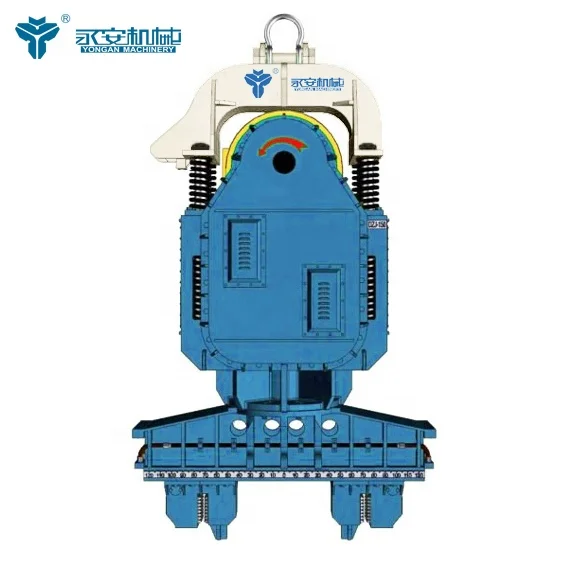

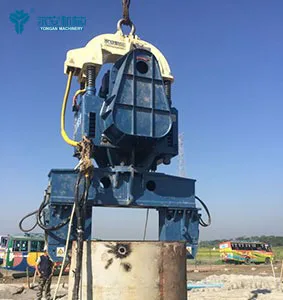

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
Weight



Packaging Details
Hammer packed in shrink film,

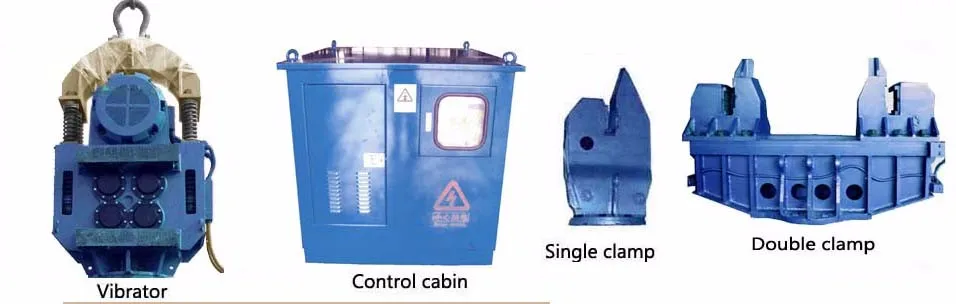

accessories in wooden box, together with control cabin in one container.
