Double Clamp Foundation Equipment DZJ90B Electric Vibratory Hammer for pile driving

Supplier: Shanghai Yongan Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Linda Wang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	Used;	Certification:	ISO9001/CE;
Payment Terms:	L/C,T/T;	Driving Force:	579kn;
Color:	Blue, Green;	Port:	Ningbo;
Place of Origin:	China;	Moter Power:	90kw;
Weight:	5700kg;	Model Number:	DZJ90B;
Brand Name:	Yongan;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	Hammer in shrink film, accessories and control cabin in wooden box. Loaded in a whole container.;	Delivery Detail:	25 days after receiving deposit;
Eccentric Moment:	573Nm;	Supply Ability:	50 Set/Sets per Year;
Dimension(LWH):	185013002500mm;

Product Description

Product Application

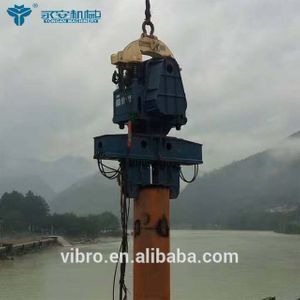

Electric vibratory hammer DZJ90B is suitable to drive and extract piles for different geological situation except the hard rock layer. For example, pre-made concrete pile, cast-in-place concrete pile, concrete expanded bore pile, lime pile, stone column. Beside, it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile.

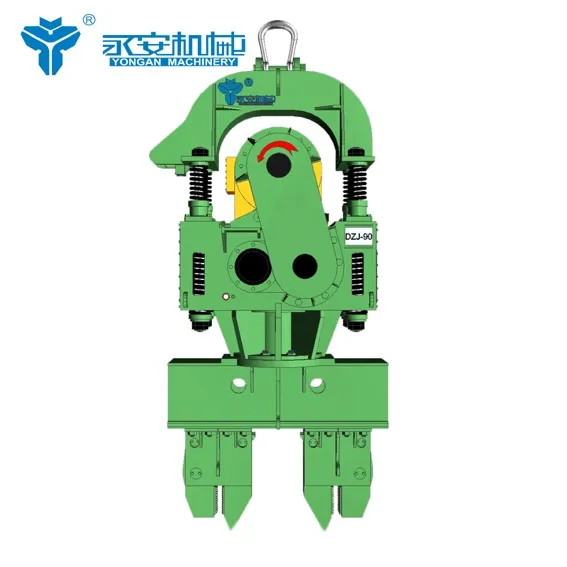

Specification for Electric Vibro Hammer DZJ90B
Motor Power	90kw
Eccentric Moment	573Nm
Driving Force	0-579kn
Speed	0-960r/m
Amplitude	0-6.6mm
Max Line Pull	254kn
Size	185013002500MM
Weight	5700kg
Delivery time	25 days
Generator Power	250kw
Crane capacity	50T

Main Features

1) Equipped with spare parts of good quality, shock-proof motor, reducer casing, FAG bearing, Siemens, Schnider electric elements. Hydraulic pump adopts Italian brands.

2) Eccentricity is overall a molding CNC mechining center, ensure the stability of equipment. Case is improved and can be used under heavy load for a long time.

3) Magnetic oil precipitation and filtration system, wireless export configuration + cable control system.

4)Zero current start mode, it solves the problem of load start, lower requirement for the power generator. Frequency change model could adjust frequency according to different soil layer frequency. It can save time, energy and cost.
