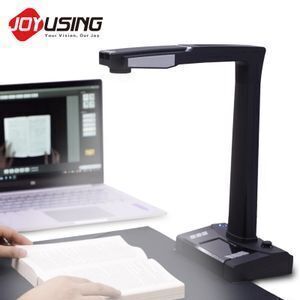

Industrial Automatic High Speed A3 A4 Portable Book Scanner Machine Profession Auto Smart For Easy Scanner Book

Product details
Single package size:45X35.5X22 cm;Size:195*301*375mm;
Product name:Book Scanner;Scan Element Type:CMOS;
Scan Speed:1 Second;After-sales Service:Onsite Training and Inspection;
Focus type:Fixed focus;Warranty(Year):1-year;
Application:School, office,government;Interface:USD2.0; VGA; HDMI;
Image size:Color<300K B/W<60K;Optical Resolution:16.0M 4608*3456;
Type:Document Scanner;Place of Origin:Fujian China;
Products Status:Stock;Selling Units:Single item;
Single gross weight:2.77 KG;Brand Name:JOYUSING;
Max Paper Size:A3 Size;Frame rate:8-30FPS;
Scanner NW:0.64KG;Colour Depth:24 Bit;
Scanning range:Documents ,invoices,Bills,Color papers,books,3D real objects etc.;Packaging Detail:1unit/box;2 units/carton;
Interface Type:USB,VGA;Appearance Color:White+Black;
Product Description



JoyUsing keeps on improving self in the technology, and expecting to

bring up more values to customers. Your satisfaction is our Pride.







16MP HD Camera

Image quality is always the first thing JoyUsing pursues, therefore Joy-BookScan V160 is armed with a 16.0 MP SONY HD camera, and an industrial grade CMOS.



High-Speed Processor & 1/2.3" CMOS

Joy-BookScan V160 is powered by a robust 32-bit MIPS CPU, scanning an unfolded 2 pages, it takes just about 1.5s, in other words, it could realize a scanning speed of 40 pages per min, that is 10 times faster than an old bulky document scanner.

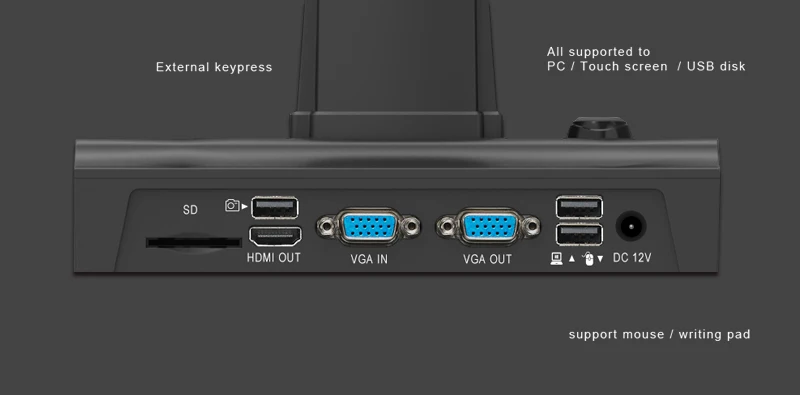

Widely Available Generic Interfaces

2 USB ports/ HDMI OUT/ VGA IN&OUT. Joy-Scan V160 could

easily reach out to various displaying terminals



LED Light Compensation & HD LCD





You Can Download More Information for JOYUSING Products.







Specification
 ModelV160V160 Plus
 Sensor1/2.3" CMOS1/2.3" CMOS
 Pixel/Resolution16.0MP18.0MP
 Frame rate

16.0MP(4608*3456)/10fps

4K2K(3840*2160)/10fps

4.0MP(2304*1728)/30fps

18.0MP(4896*3672)/10fps

4K2K(3840*2160)/10fps

4.0MP(2304*1728)/30fps

 Definition

Video: HDMI 1080P

Picture: 16.0MP(4608*3456)

Video: HDMI 1080P

Picture: 18.0MP(4896*3672)

 Format≤A3
 Image formatJPG, PDF, TIFF
 Speed40 Pages/min
 Color bit depth24 bits
 Export formatJPG, PDF, PDF, Word,Excel, TIFF
 Focus modeFixed focus
 Light sourceNatural light and LED lights
 Scanning accessDevice Control, Software triggering,Hand button, Foot pedal
 LCD2.4", 4:3, 320x240



Configuration
 System supportWin XP/7/ 8/10, 32/64bit
 PowerInput:100 to 240V, 50/60Hz
Output: 12V/1A
 VGA-INSupport DDC
 VGA-OUT / HDMI-OUT1980*1080@60HZ
1280*1024@60HZ
1024*768@60HZ
1280*720@60HZ
Among: VGA Support DDC
 USB InterfaceTOP: USB2.0 OTG
Support USB disk\UVG\Touch Screen
Bottom: USB2.0 HOST
Support Mouse/Writing PAD
 SD CardMax.32G(optional)
 LED Light
 IR
 MIC
 Hand button
 Buzzer
 Foot pedal
 Black document pad





More Products




 Model L SeriesE SeriesC SeriesK SeriesV Series
 Sensor 1/3.2”CMOS 1/2.5" CMOS 1/4" CMOS 1/3.2'' CMOS  1/2.3" CMOS
 Resolution 10.0MP

 2.0MP

5.0MP

  5.0MP

10.0MP

5.0MP

10.0MP

16.0MP

16.0MP

18.0MP

 Focus modeAuto focus Fixed focus Auto / Fixed Manual / Fixed Fixed focus

 Shooting

 Area

A4,A5,A6

  A4,A5,A6

sim card

  A3,A4,A5,A6

sim card

  A3,A4,A5,A6

sim card

 A3,A4,A5,A6

sim card

  Learn More  Learn More  Learn More  Learn More  Learn More



Software



As a Revolutionary Device, Joy-BookScan V160 Book Scanner Comes With a Functional Image Processing Software


To achieved the expected functions, JoyUsing V-Smart Book Scanner has optimized the advanced algorithm of distortion correction, flattening surface, finger eraser, background purification, auto paging, etc. and for smarter scanning, JoyUsing V-Smart Book Scanner integrated with the world leading ABBYY OCR system, converting to editable digital file in one-click.



Distortion Correction

Crooked and distorted effect might occur during scanning process. JoyUsing V-Smart Book Scanner will detect and correct it automatically.



Flatten Curve

After shooting books, software through the algorithm to modify the remaining crimped, finally output flattened copy of the pages.



Finger Erasing/Smart Paging

Remaining finger image will be detected and erased to guarantee clear and neat input.

For smart paging, it means the software can automatically cut a connected 2 pages into separated ones, which helps “bind up” a finished E-book page by page







Multiple Operating Modes
Flexible Functionality for All Your ProjectsSupports Hand Button, Foot Pedal, Scanner Button and Software Button to trigger scanning, Page detection and Auto-Scan.





Efficient OCR Technology

All scanned paper documents could be converted to editable digital files via built-in ABBYY OCR function (Optical Character Recognition), surpporting mixed multi-language, graphic and recognition of form. It's all for smarter scanning.

JoyUsing V-Smart Book Scanner is widely used in office documents, education and training, video presentation, digitizing books and magazines, etc. and it will bring you a high-quality and efficient life.







It’s Also Integrated With Off Line Visual Presenter

Latest optical zoom simulation technology, 30 frames per second, 1080P HD high speed video, integrating rich off line display function, like frame magnifying, image freezing, rotating, mirror, contrast, picture-in-picture, etc.
PC-free operation, live interaction video display, easily records professional videos in touch control screen, projector and electronic whiteboard.





Packaging & Shipping





Company Information



Fujian Joyusing Technology Co., Ltd. was founded in 2008 and Fuzhou located, the city as China Taiwan Straits Western Economic Zone center. As a High-Tech Enterprise based on R&D, manufacturing, marketing and servicing IT peripherals, Document Scanner, Book Scanner and Visualizer, Joyusing Technology adopts the world-class image acquisition solutions and advanced document capture technology integration of low-carbon, environmentally friendly.
