Cooling Mode: | WATER COOLING; | After Warranty Service: | Online support; |
Single gross weight: | 28.1 KG; | Condition: | New; |
Certification: | ce,ISO; | Place of Origin: | Shandong China; |
Warranty: | 2 years; | Brand Name: | sihao; |
Laser Type: | CO2; | Applicable Industries: | Laser engraver Cutting Machine; |
Key Selling Points: | Multifunctional; | Single package size: | 95X63X41 cm; |
CNC or Not: | YES; | Laser Source Brand: | other; |
After-sales Service Provided: | Online support,Engineers available to service machinery overseas; | Local Service Location: | none; |
Weight (KG): | 28 KG; | Engraving Speed: | 0-350mm/s; |
Dimension(L*W*H): | 95*63*41CM; | Keywords: | Engraver; |
Engraving Area: | 300x200mm; | Selling Units: | Single item; |
Packaging Detail: | carton box with foam; | Showroom Location: | none; |
Package Preview: | ; | Applicable Material: | Acrylic,Crytal,glass,leather,MDF,PAPER,plastic,Plexiglax,plywood,RUBBER,STONE,wood; |
Graphic Format Supported: | AI,BMP,dst,dwg,DXF,DXP,LAS,PLT; | Application: | Laser Engraving; |

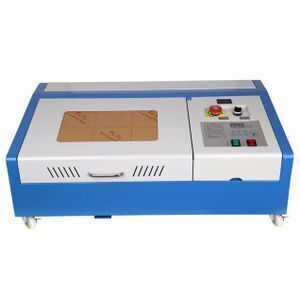

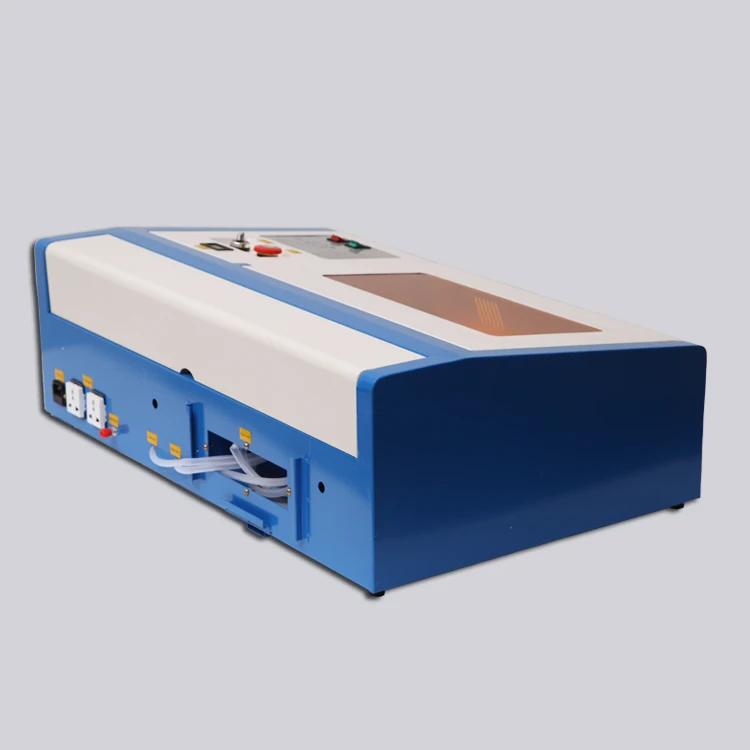

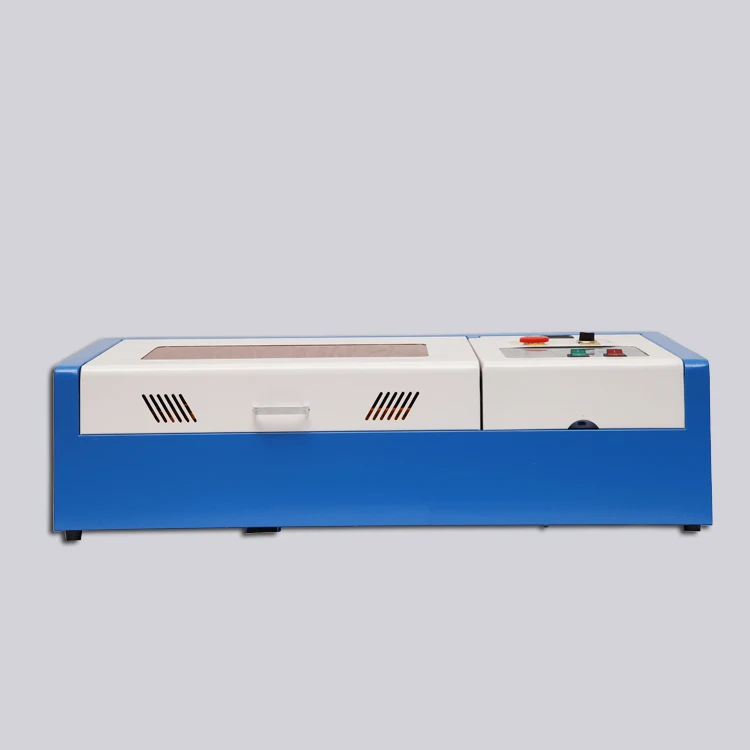

Engraver WIth High PreciseWood Cutter 40W CO2 USB Laser Engraving Cutting Machine
The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.
FDA Compliant: | Yes |
CE Certification: | Yes |
ISO9001 Quality Certification: | Yes |
Laser Type: | CO2 Gas |
Tube Trigger Volt: | 20KV |
Tube Operating Volt: | 15KV |
Current: | 0~22mA |
Engraving Area: | 12x8in (300x200mm) |
Maximum Item Size to Engrave: | 10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm) |
Laser Tube (life hours): | 1000-1300 Hours |
Laser Power: | 40W |
Engraving Speed: | 0-13.8 in./s (0-350mm/s) |
Cutting Speed: | 0-1.38 in./s (0-35mm/s) |
Minimum Shaping Character: | 0.04 X0.04in (1mm X 1mm) |
Resolution Ratio: | 0.001 in (0.026mm) / (1000dpi) |
Power Supply: | 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item. |
Resetting Positioning: | ≤0.0004 in (0.01mm) |
Motor Type: | Stepper Motor |
Software Supported: | CorelDraw software (both NewlyDraw and NewSeal function) |
Power Consumption: | ≤250W |
Operating Temperature: | 32-113F (0-45C) |
Graphic Format Supported: | BMP/JPG/JPEG/WMF/EMF/PLT |
Water Cooling: | Water Pump include |
Recommended Spare Parts/Consumables: | Laser Tube, Focal lens,Reflection lens |
Product Dimensions: | 37.4 X 24.8 X 16.1in.(950x630x410mm) |
Product Weight: | 61.95lbs(28.1kg) |
1 x CO2 LASER Engraver
1 x Water Pump
1 x Smoke Pipe
1 x Smoke Fan
1 x Power Wire
1 x USB Cable
1 x USB Key
1 x Accessory Bag
1 x Instruction Video
1 x English User Manual
