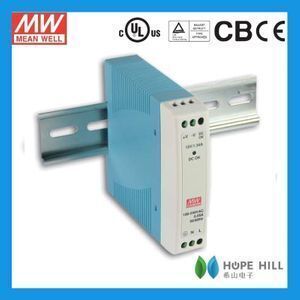

Meanwell Din rail power supply MDR-10-12 Switching Power Supply 12V 0.84A/SMPS/PSU

Supplier: Hangzhou Hopehill Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Mr Tony Lang
Price: $1.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Input Voltage:	85 ~ 264VAC 120 ~ 370VDC;	Packaging Detail:	0.17Kg; 72pcs/13.2Kg/0.91CUFT;
Output Voltage:	12V;	Brand Name:	Mean Well;
Model Number:	MDR-10-12;	INDUSTRIAL POWER DIMENSION:	22.590100mm(LWH);
INDUSTRIAL POWER MTBF:	584K hrs min. MIL-HDBK-217F(25°C);	INDUSTRIAL WARRANTY:	3 years;
Place of Origin:	Jiangsu China (Mainland);	INDUSTRIAL POWERINPUT EFFICIENCY:	81%;
Payment Terms:	L/C,T/T,Western Union;	INDUSTRIAL EMC EMISSION:	Compliance to EN55011, EN55022(CISPR22)classB;
INDUSTRIAL POWER VOLTAGE RANGE:	85 ~ 264VAC 120 ~ 370VDC;	LEAKAGE CURRENT:	<1mA/240VAC;
Output Frequency:	0;	Supply Ability:	100000 Piece/Pieces per Month;
Output Current:	0-0.84A;	INDUSTRIAL POWER WORKING TEMP.:	-20~+70°C (refer to output load derating curve);
Delivery Detail:	after100%TT 3-5 days;	Output Power:	10W;
INDUSTRIAL POWER PACKING:	0.17Kg; 72pcs/13.2Kg/0.91CUFT;	INDUSTRIAL POWER HUMIDITY:	20~90% RH non-condensing;
Port:	SHANGHAI OR SHENZHEN;

Welcome to Hope Hill Family

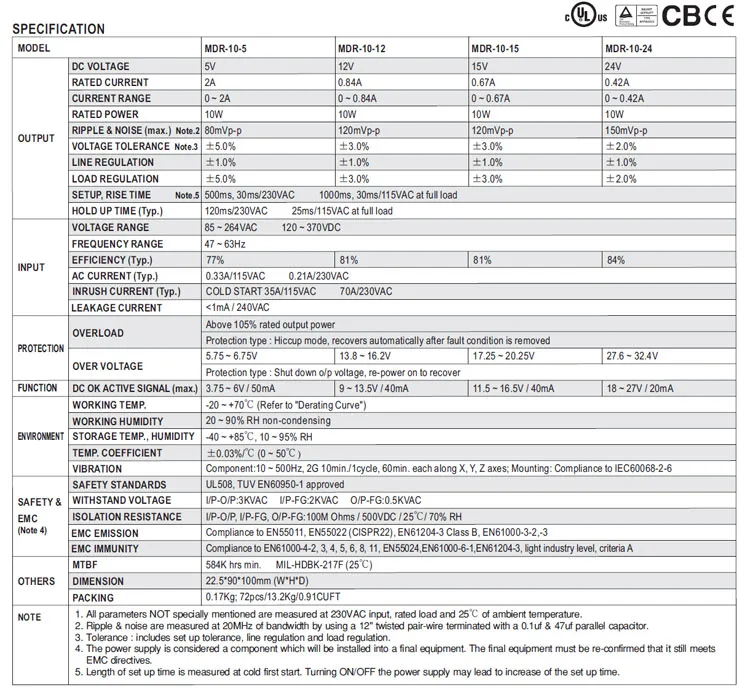

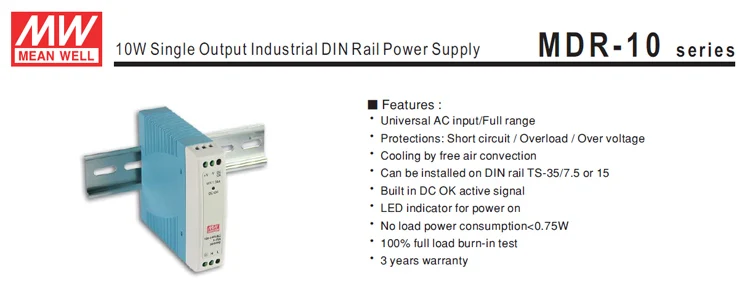

Meanwell MDR-10-5 Single Output Industrial DIN Rail Power Supply LED Driver Built-in DALI interface

MODEL		MDR-10-5
OUTPUT	DCVOLTAGE	5V
	RATEDCURRENT	2A
	CURRENtrANGE	0~2A
	RATEDPOWER	10W
	RIPPLE & NOISE (max.) Note.2	80MVP-P
	VOLTAGE TOLERANCE Note.3	±5.0%
	LINEREGULATION	±1.0%
	LOADREGULATION	±5.0%
	SETUP.RISEHOLD.TIME Note.5	500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	120ms/230VAC 25ms/115VAC at full load
INPUT	VOLTAGERANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCYRANGE	47~63HZ
	EFFICIENCY (Typ.)	77%
	AC CURRENT (Typ.)	0.3A/115VAC 0.21A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVERLOAD	Above 105% rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75 ~ 6.75V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION	DC OK ACTIVE SIGNAL (max.)	3.75 ~ 6V / 50mA
ENVIRONMENT	WORKING TEMP	-20~+70 (refer to output load derating curve)
	WORKINGHUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~50)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY&EMC Note 4)	SAFETY STANDARDS	UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATIONRESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTICN& RADIATION	Compliance to EN55011, EN55022(CISPR22)classB
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
QTHERS	MTBF	584Khrs min MIL-HDBK-217F(25)

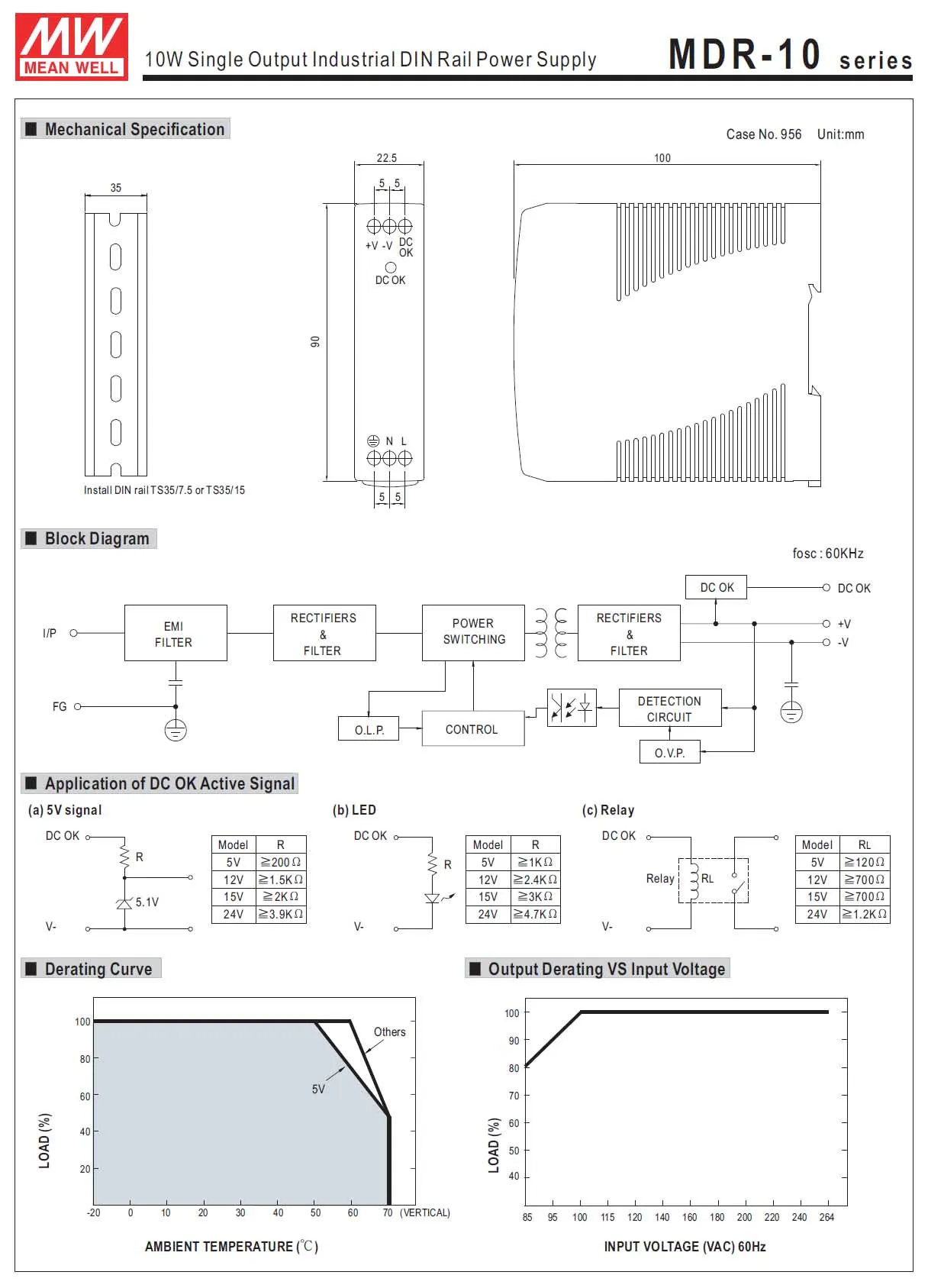

	DIMENSION	22.590100mm(LWH)
	PACKING	0.17Kg; 72pcs / 13.2Kg / 0.91CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

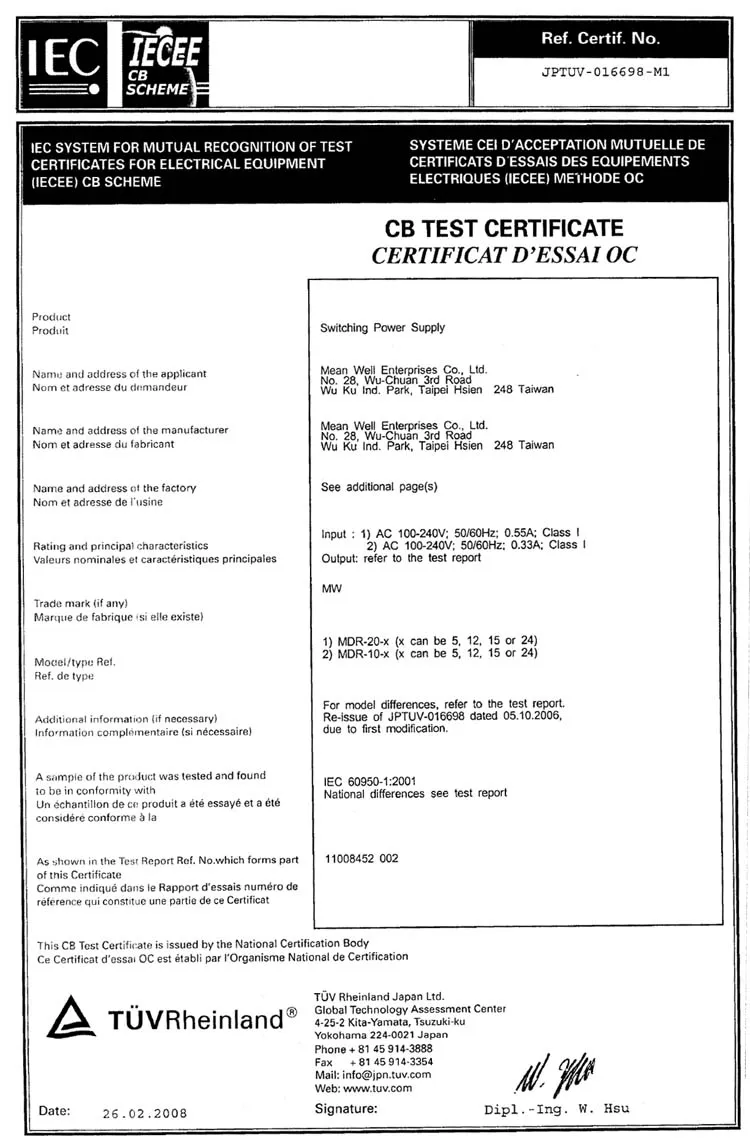

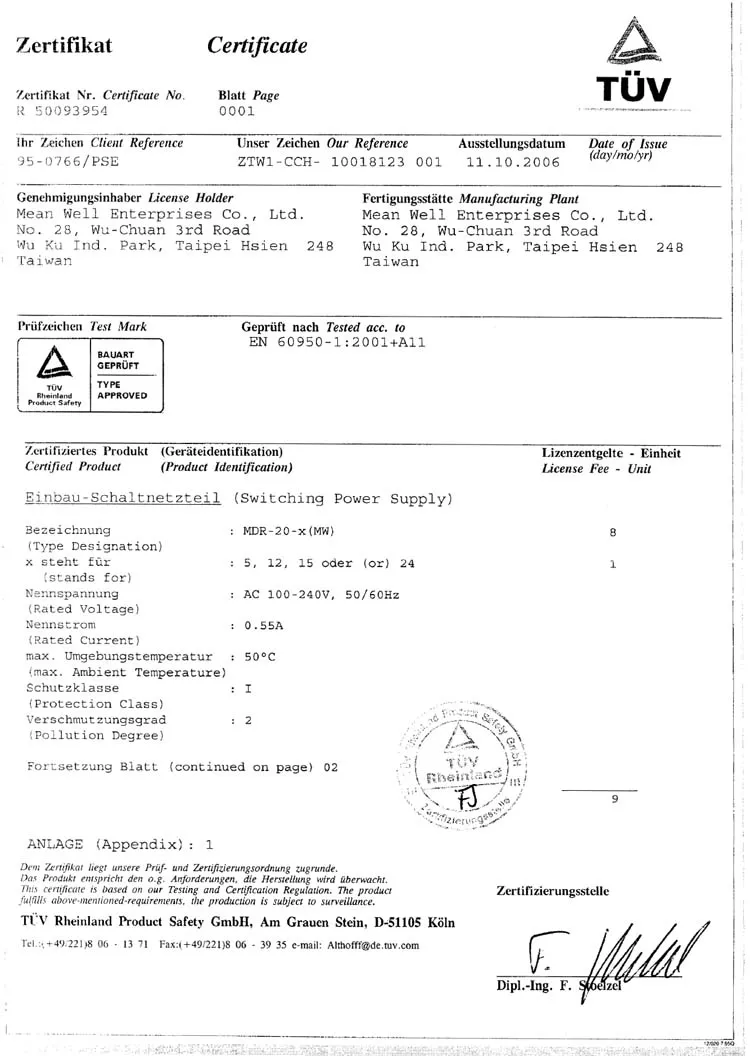

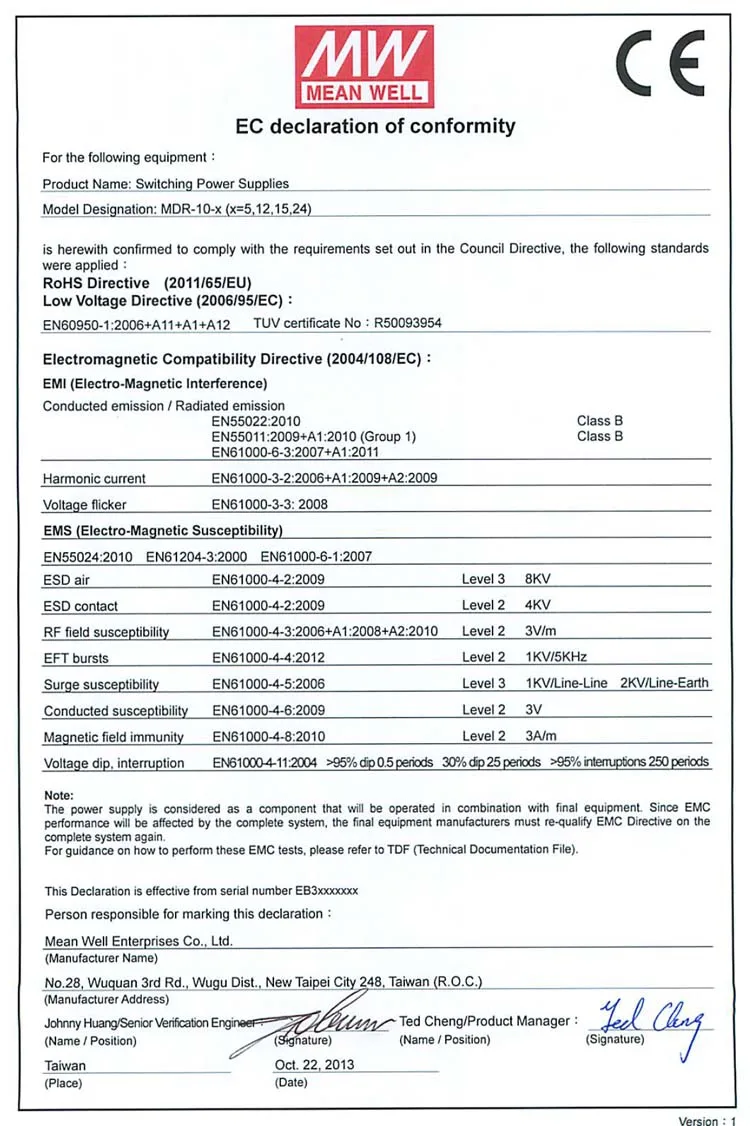

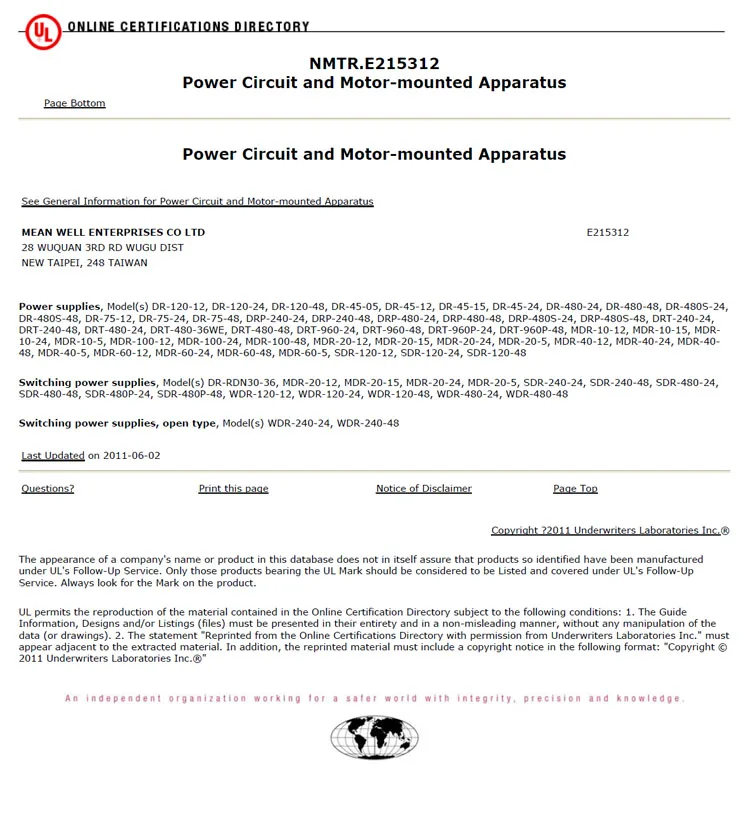

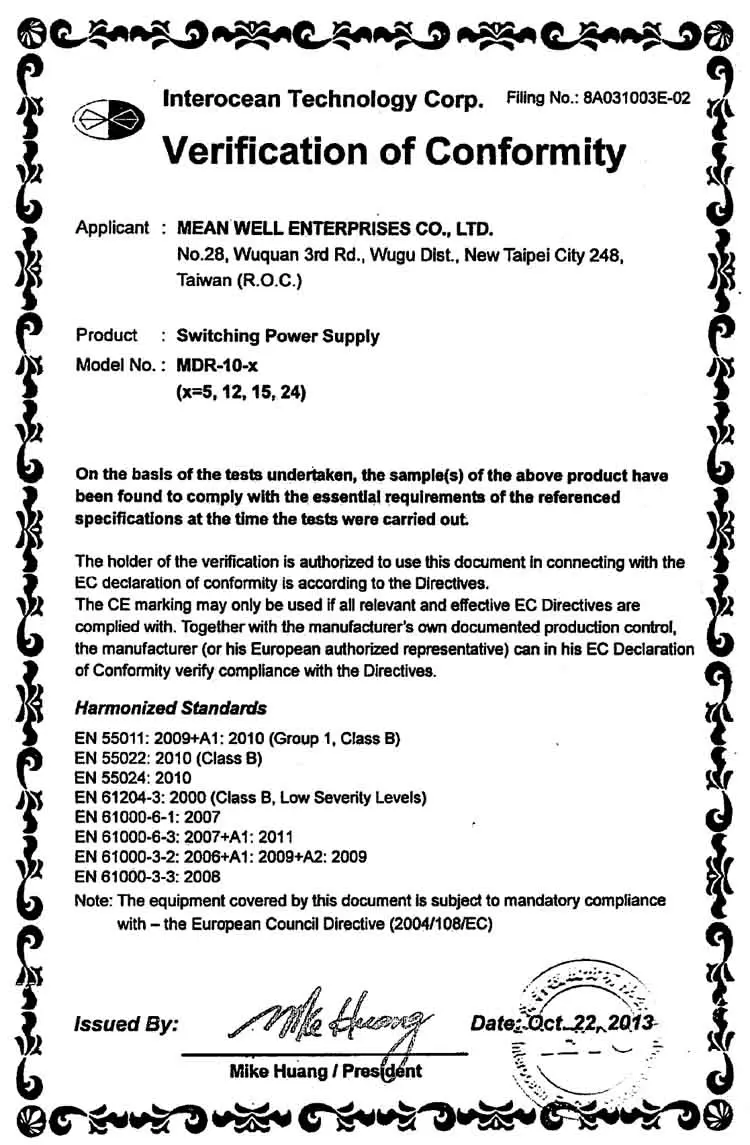

Certification of Meanwell LED Driver MDR-10-5 Single Output Industrial DIN Rail Power Supply

Why Choose Us ???

Original MEANWELL brand

We sell 100% original real MEANWELL brand, and have the certificate of UL, CUL, CE, CB, RoHS etc.

The different S/N code on surface of the products, can check the code with MEANWELL company.

Competitive Price +A Fast Delivery + Satisfied Customer Service

Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us via Tel or mail.

We shall find for you the cheapest shipping term and show you the freight and shipping time. Regarding to the urgent order, a quickest shipping term and freight will be advised to you for consideration.

The stock info will be informed before your order, to make everything under control.

We will quote to you competitive prices according to your quantities.

Price could be negotiated for more and large quantity.

We have a technical team, if you show us your LED information, we can find right drivers for you to match LED.

Shipping & Duties

Usually, shipping will be arranged within 2-3 Days upon payment or deposit, from Monday to Saturday only.

Payment

To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C, WESTERNUNION, PAYPAL, More payment options will be added in the near future.

After-sale service

All of the products we sell are with a certain time warranty.

Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply

We will always be here and try our best to provide you our best service !

Waiting for your kind inquiry !
