API 6A 5000PSI Demco Mud Gate Valve Mud Valve

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Working Temperature:	below 46 degree to 121 degree(Class LU);	Temperature of Media:	low temperature,Normal Temperature;
Material Class:	AA,BB,CC,DD,EE,FF,HH;	Product name:	API 6A 5000PSI Demco Mud Gate Valve Mud Valve;
Working Pressure:	2000PSI to5000PSI;	Structure:	Diaphragm;
Color:	red, green;	Nominal Bore:	2" to5";
Type:	Gate Valves;	Specification level:	PSL1-4;
Model Number:	Specification level: PSL1-4;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Media:	oil;	Supply Ability:	20000.0 Piece/Pieces per Quarter API 6A 5000PSI Demco Mud Gate Valve Mud Valve;
Port:	Shanghai, China;	Brand Name:	Goldenman;
Application:	oilfield;	Available:	in mud circulatinig pipeline;
Packaging Detail:	wooden cases for API 6A 5000PSI Demco Mud Gate Valve Mud Valve;	Power:	manual;
Working Medium:	mud;	Performance Requirement:	PR1-2;
Place of Origin:	Shandong China;	Port Size:	various size;

API 6A 5000PSI Demco Mud Gate Valve Mud Valve

Product Description

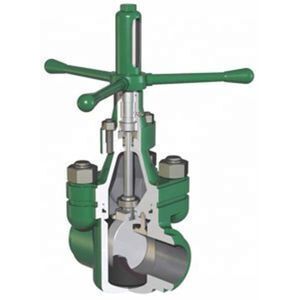

API 6A Wellhead Mud Gate Valve

The union ends API 6A mud gate valves are mainly used for drilling mud circulating system in oil field, It is used to control the flowing and stopping of mud. It is joined by trapezoid thread connection, It is quick and convenient to fix the equipment. The equipment has strong rigidity is safe and reliable, The union ends mud gate valve seat and gate are sealed by means of parallel-type Metal to Metal Sealing, The effection of sealing is good,It is convenient to open, The two ends of the valve and pipes are joined and staled with spherical movement,The movable connection of the rubber seal ring like "O" is not of high requirement about straightness of the two ends of pipes, When is is fited and its seal performance is very good.

SPECIFICATION

Manufactured and Tested in Accordance with API Spec 6A
Forged Steel Body and Bonnet
API 6A PSL 1, 2 and 3 available

Valve seat and gate are sealed by Metal to Metal Sealing
Low Operating Torque
Quick Release Hand Wheel
Factory Pressure Tested in Accordance with API.6A
Can be supplied with Flanged End Connections, Hammer Union Ends, Threaded Connections or Butt Weld Ends Material Classes DD, EE, FF, to NACE MR-01-75
Available with Pressure Ratings 3000psi, 5000psi and 10000psi in 2", 3", 4", 5" Valve Sizes
APPLICATIONS
Oil and Gas lines
Wellheads
Manifolds and Pipelines
Crude Oil and Sour Gas
Well Treating Chemicals
